FRONT HUB(&SIM;DX125A-004808)

KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

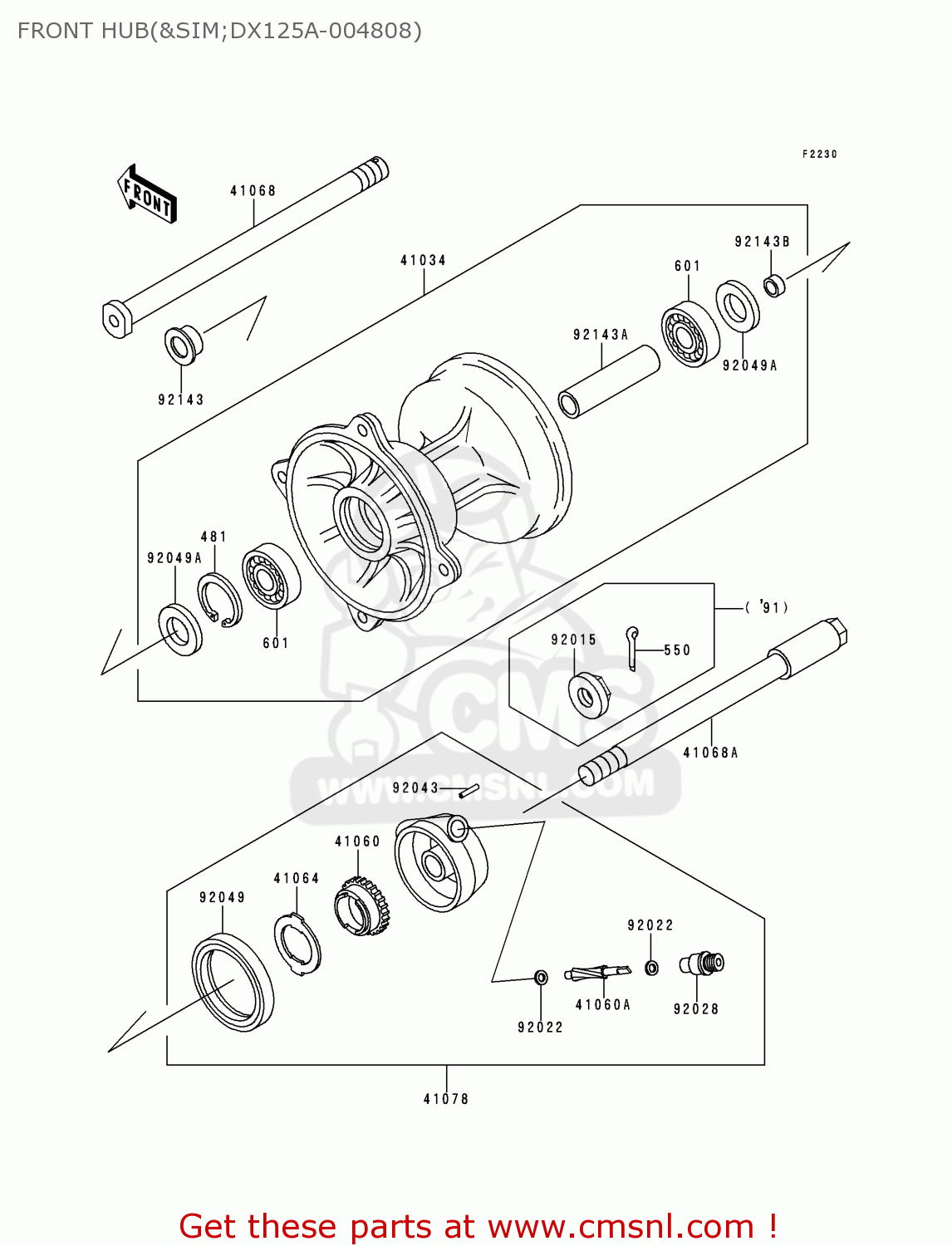

Front hub(&sim;dx125a-004808) diagram KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

prices are in EUR

ref

part #

description

quantity

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6202UG
ref: 601

BEARING BALL

€ 19.50

41034

410341211
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 608.50

41060

410601101
ref: 41060

GEAR-METER SCREW,24T

€ 27.00

41060A

410601102
ref: 41060A

GEAR-METER SCREW,8T

€ 19.00

41064

410641051
ref: 41064

RECEIVER-SPEEDOMETER

€ 8.00

41068A

410681320
ref: 41068A

AXLE,FR

€ 38.00

41078

410781080
ref: 41078

CASE-ASSY-METER GEAR

€ 112.00

92022

41063001
ref: 92022

WASHER-THRST SPD PINI

€ 3.00

92028

920281066
ref: 92028

BUSHING,SPEEDOMET CAB

€ 7.50

92043

41082001
ref: 92043

PIN-SPRING

€ 2.50

92049

920491172
ref: 92049

SEAL-OIL,METER GEAR C

€ 12.00

92049A

920491176
ref: 92049A

SEAL-OIL,MH20354.5

€ 10.00

92143

920271959
ref: 92143

COLLAR,L=12

€ 10.50

92143A

921431452
ref: 92143A

COLLAR,FR BRAKE DRUM,

€ 10.50

92143B

921431453
ref: 92143B

COLLAR,FR AXLE,L=5

€ 7.00
