TRANSMISSION/CHANGE DRUM
G31M CENTURION 1970

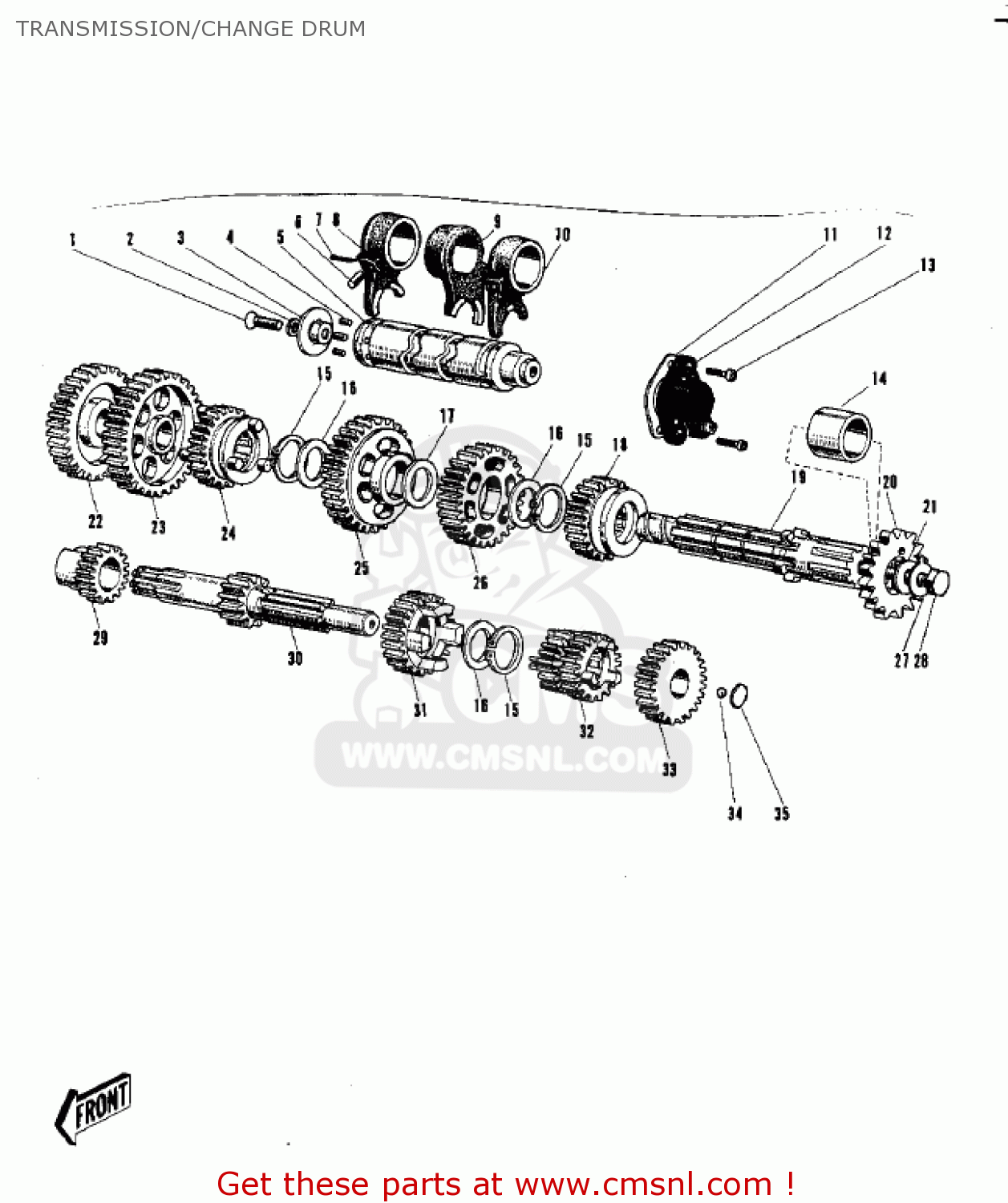

Transmission/change drum diagram G31M CENTURION 1970
TRANSMISSION/CHANGE DRUM G31M CENTURION 1970
×
prices are in EUR
ref
part #
description
quantity
1
220B0612
ref: 1
SCREW-PAN HEAD,6X12
€ 1.00
2
464H0600
ref: 2
WASHER-LOCK,6MM
€ 0.50
3
13142008
ref: 3
PLATE-CHANGE DRUM PIN
€ 4.00
4
92042014
ref: 4
PIN-GEAR CHANGE DRUM
€ 0.50
5
13141010
ref: 5
DRUM-GEAR CHANGE
€ 165.00
6
92043005
ref: 6
PIN,DOWEL,8X15
€ 4.50
7
550D3020
ref: 7
PIN-COTTER,3.0X20
€ 2.00
8
13140010
ref: 8
FORK-SHIFT,LOW&2ND
€ 81.50
9
13140017
ref: 9
FORK-SELECTOR,4TH-TOP
€ 120.00
10
13140009
ref: 10
FORK-SELECTOR,3RD
€ 46.50
11
13146002
ref: 11
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
12
131511001
ref: 12
SWITCH-COMP,NEUTRAL
€ 9.50
13
220B0616
ref: 13
SCREW-PAN HEAD,6X16
€ 2.50
14
92027009
ref: 14
SPACER-ENG SPROCKET
€ 12.50
15
92033014
ref: 15
RING-SNAP,16MM
€ 3.50
16
92022118
ref: 16
T=1.2 M/M
WASHER,18.5X23X1.2
€ 3.00
17
92022146
ref: 17
T=1.6 M/M
WASHER,THRUST,18.5X23
€ 4.50
18
13137003
ref: 18
23 TEETH
TOP GEAR OUTPUT SHAFT
€ 0.00
19
13128021
ref: 19
SHAFT-OUTPUT
€ 160.50
20
131441058
ref: 20
S.T.D.
SPROCKET-OUTPUT,14T
€ 20.00
20
13249001
ref: 20
OPTION
ENG SPROCKET ASY,13T
€ 43.00
20
13249003
ref: 20
OPTION
ENG SPROCKET,ASY,15T
€ 35.50
20
13144040
ref: 20
OPTION
ENGINE SPROCKET,16T
€ 71.00
21
92022130
ref: 21
WASHER-ENG SPROCKET
€ 2.00
22
13073004
ref: 22
30 TEETH
GEAR-SPUR,KICKSTARTER
€ 55.50
23
13129025
ref: 23
33 TEETH
LOW GEAR,OUTPUT SHAFT
€ 73.50
24
131291708
ref: 24
24 TEETH
GEAR,OUTPUT 4TH,24T
€ 70.00
25
13131021
ref: 25
29 TEETH
GEAR,OUTPUT SHAFT,2ND
€ 133.00
26
13133005
ref: 26
26 TEETH
GEAR,OUTPUT 3RD,26T
€ 46.50
27
92030007
ref: 27
WASHER-LOCK,8MM
€ 1.00
28
115G0816
ref: 28
BOLT-HEX,HEAD 8X16
€ 0.50
29
13075004
ref: 29
16 TEETH
GEAR-SPUR,KICKSTARTER
€ 40.50
30
13127021
ref: 30
14 TEETH
UNAVAILABLE IN PRICE BOOK
€ 0.00
31
131291053
ref: 31
22 TEETH
GEAR,INPUT 4TH,16T
€ 23.50
32
13130019
ref: 32
18/20 TEETH
GEAR,DRIVESHAFT,2ND & 3RD
€ 108.00
33
131291927
ref: 33
24 TEETH
GEAR, INPUT TOP 24T
€ 25.00
34
600A0700
ref: 34
BALL-STEEL,7/32
€ 2.50
35
92022115
ref: 35
WASHER,THRUST
€ 2.50
