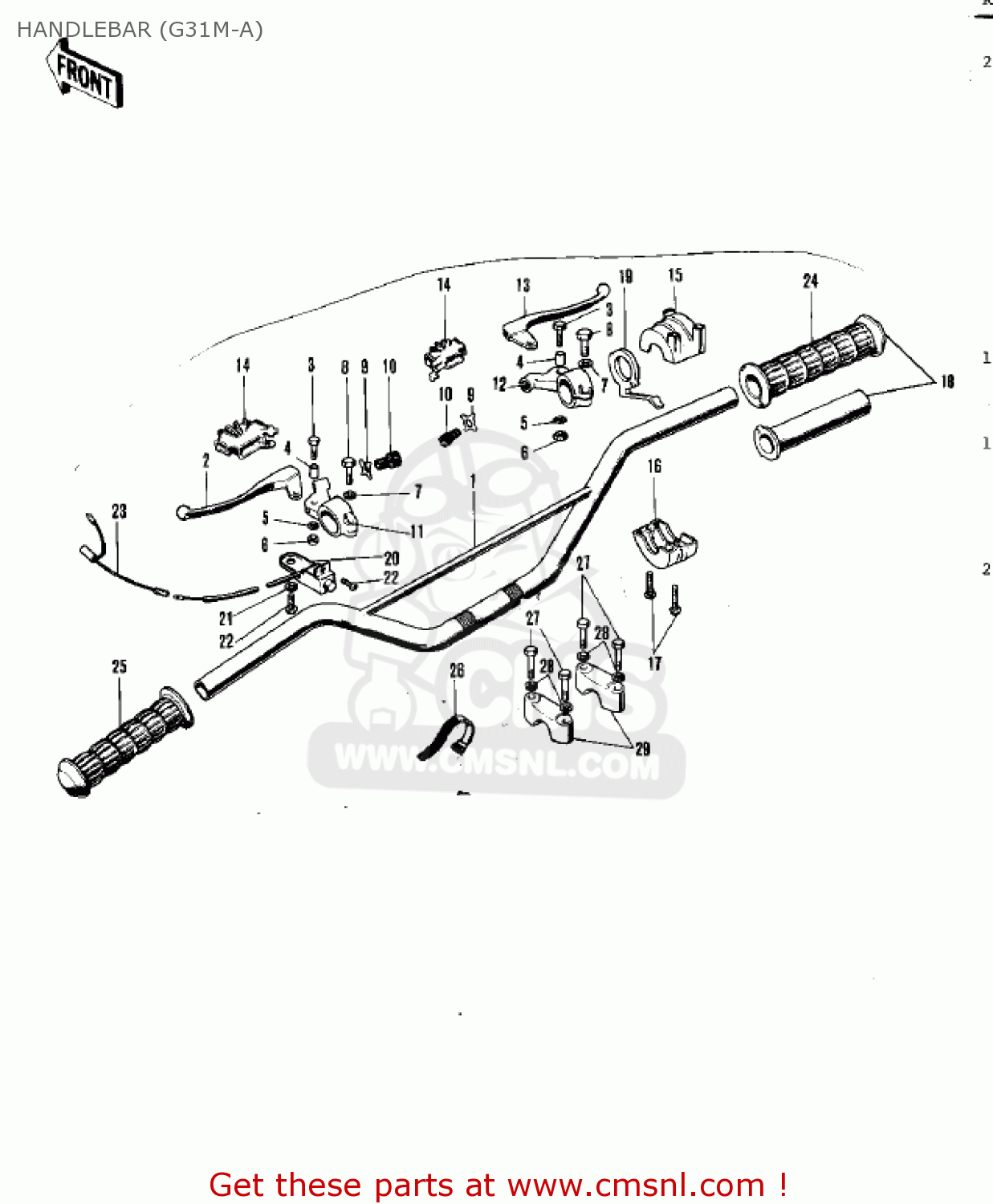

HANDLEBAR (G31M-A)

ref

part #

description

quantity

1

46004004
ref: 1

HANDLEBAR

€ 236.50

?

46076014
ref: ?
Includes items 2 - 1

LEVER ASSY-CLUTCH

€ 30.00

2

46092015
ref: 2

LEVER-GRIP,CLUTCH

€ 11.50

3

92007020
ref: 3

BOLT-HEX HEAD,5X20

€ 2.50

4

46059011
ref: 4

COLLAR,LEVER

€ 3.50

5

464H0500
ref: 5

WASHER-LOCK,5MM

€ 0.50

6

312B0500
ref: 6

NUT-HEX,5MM

€ 0.50

7

410B0600
ref: 7

WASHER-PLAIN-SMALL,6M

€ 0.50

8

110N0622
ref: 8

BOLT,6X22

€ 2.00

9

46056001
ref: 9

NUT-ADJUST SCREW LOCK

€ 2.50

10

46055010
ref: 10
I.D.=70

SCREW,CABLE ADJUST

€ 21.00

10

46055003
ref: 10
I.D.=80

SCREW-CABLE ADJUST

€ 11.50

11

46094007
ref: 11

HOLDER-CLUTCH LEVER

€ 6.50

?

46021010
ref: ?
Includes items 3 - 1

LEVER ASSY-FRNT BRAKE

€ 35.50

?

46060005
ref: ?
Includes items 12 -

HOLDER-FR BRAKE LEVER

€ 6.50

13

46058004
ref: 13

LEVER-GRIP,FRONT BRAK

€ 24.00

14

46071001
ref: 14

DUST COVER

€ 9.00

?

46018019
ref: ?
Includes items 15 -

CASE ASSY-R.H

€ 67.50

15

46041005
ref: 15

CASE-R.H UPPER

€ 59.50

16

46023005
ref: 16

CASE-R.H LOWER

€ 13.00

17

220B0522
ref: 17

SCREW-PAN-CROS

€ 0.50

18

46019013
ref: 18

GRIP ASSY,THROTTLE

€ 15.00

?

46027006
ref: ?
Includes items 20 -

SWITCH ASSY-ENG STOP

€ 6.50

21

461F0300
ref: 21

WASHER-SPRING,3MM

€ 0.50

22

220B0306
ref: 22

SCREW-PAN-CROS

€ 0.50

23

26011045
ref: 23

WIRE LEAD

€ 11.00

24

46061012
ref: 24

GRIP,RUBBER,RH

€ 18.50

25

46075017
ref: 25

GRIP,LH

€ 15.50

26

92072030
ref: 26

BAND,SHORT

€ 3.00

27

920011405
ref: 27

BOLT,8X38

€ 10.00

28

461F0800
ref: 28

WASHER-SPRING,8MM

€ 0.50

29

46012008
ref: 29
BLACK

HOLDER-HANDLE,UPP

€ 23.00

all assemblies
