KICKSTARTER MECHANISM

G31M CENTURION 1970

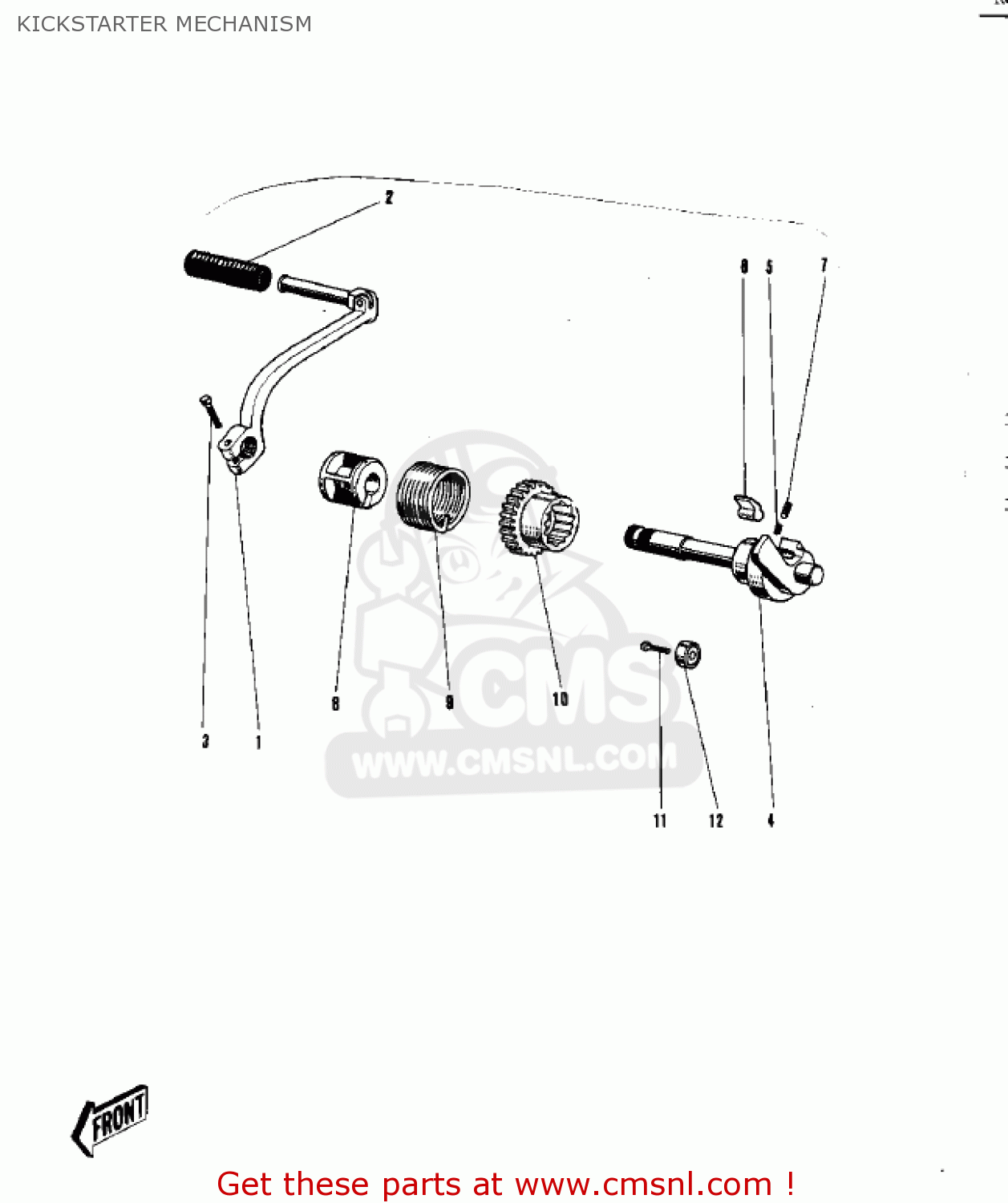

Kickstarter mechanism diagram G31M CENTURION 1970

prices are in EUR

ref

part #

description

quantity

130641044
ref: 1

LEVER-ASSY-KICK,PEDAL

€ 71.50

13063002
ref: 2

RUBBER-KICK PEDAL

€ 3.00

115G0825
ref: 3

BOLT-HEX,HEAD,8X25

€ 3.00

130661022
ref: 4

SHAFT-KICK

€ 102.00

92081014
ref: 5

SPRING-KICK PAWL

€ 3.00

13069005
ref: 6

PAWL,KICKSTARTER

€ 10.00

92043017
ref: 7

UNAVAILABLE IN PRICE BOOK

€ 0.00

13070003
ref: 8

GUIDE,KICK SPRING

€ 9.00

92083004
ref: 9

SPRING-KICKSTARTER

€ 7.50

13068007
ref: 10

GEAR-SPUR,KICKSTARTER

€ 50.00

221B0620
ref: 11

SCREW-CNTSNK HD,6X20

€ 0.50

13072003
ref: 12

STOPPER,KICKSTARTER

€ 6.50

all assemblies
