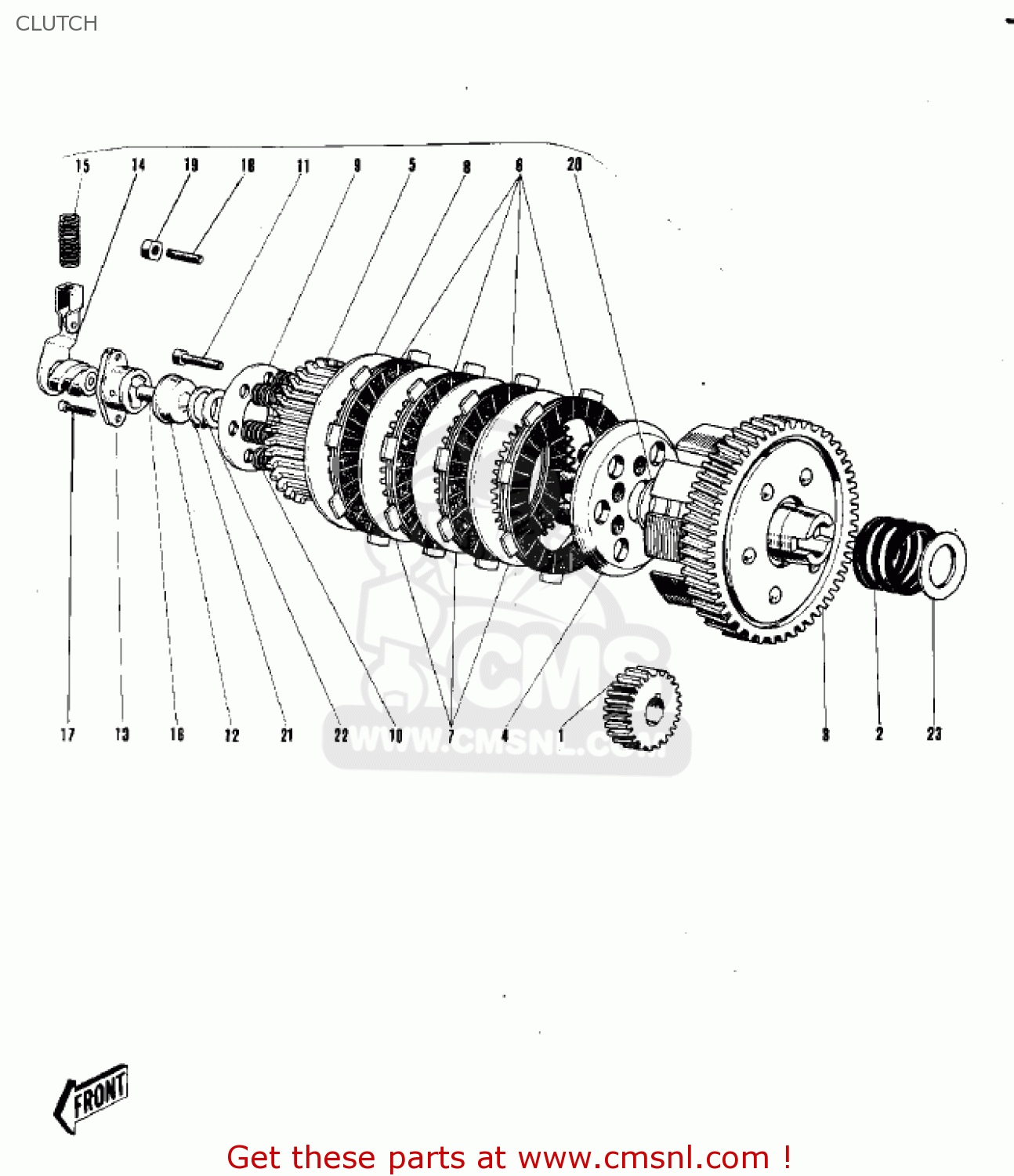

CLUTCH

ref

part #

description

quantity

1

13121032
ref: 1

GEAR-PRIMARY SPUR

€ 92.50

2

92081015
ref: 2

SPRING-CLUTCH DAMPER

€ 4.00

?

13081028
ref: ?
Includes items 3 - 1

CLUTCH ASSY

€ 193.00

3

13095022
ref: 3

HOUSING,CLUTCH

€ 216.00

4

130861002
ref: 4

WHEEL,CLUTCH

€ 33.00

5

130871011
ref: 5

HUB-CLUTCH

€ 74.00

6

130881103
ref: 6

PLATE-FRICTION (MCA)

€ 11.00

7

130891009
ref: 7

PLATE-CLUTCH,STEEL (NAS)

€ 8.50

8

13090004
ref: 8

PLATE-CLUTCH,OUTER (NAS)

€ 11.50

9

130911115
ref: 9

HOLDER,CLUTCH SPRING

€ 12.50

10

92081012
ref: 10

SPRING-CLUTCH

€ 4.00

11

114G0812
ref: 11
I.S.O. THREAD

BOLT-SMALL,8X12

€ 2.00

12

13113003
ref: 12

PUSHER-COMP-CLUTCH

€ 6.50

13

13118001
ref: 13

OUTER-CLUTCH RELEASE

€ 19.50

14

13102004
ref: 14

INNER-CLUTCH RELEASE

€ 26.00

15

92081096
ref: 15

SPRING-CLUTCH RELEASE

€ 3.50

16

610A0710
ref: 16

ROLLER,7X10

€ 4.50

17

220B0616
ref: 17

SCREW-PAN HEAD,6X16

€ 2.50

18

291Z0628
ref: 18

SCREW-SLOTTED,6X28

€ 2.50

19

311B0600
ref: 19

NUT,6MM

€ 0.50

20

92022054
ref: 20

WASHER,16.5X27X1.4

€ 4.50

21

480J1600
ref: 21

CIRCLIP-TYPE-C,16MM

€ 2.50

22

92022053
ref: 22

WASHER,THRUST,16.5X21

€ 2.50

23

92022057
ref: 23

WASHER,25.5X36X1

€ 2.50

all assemblies
