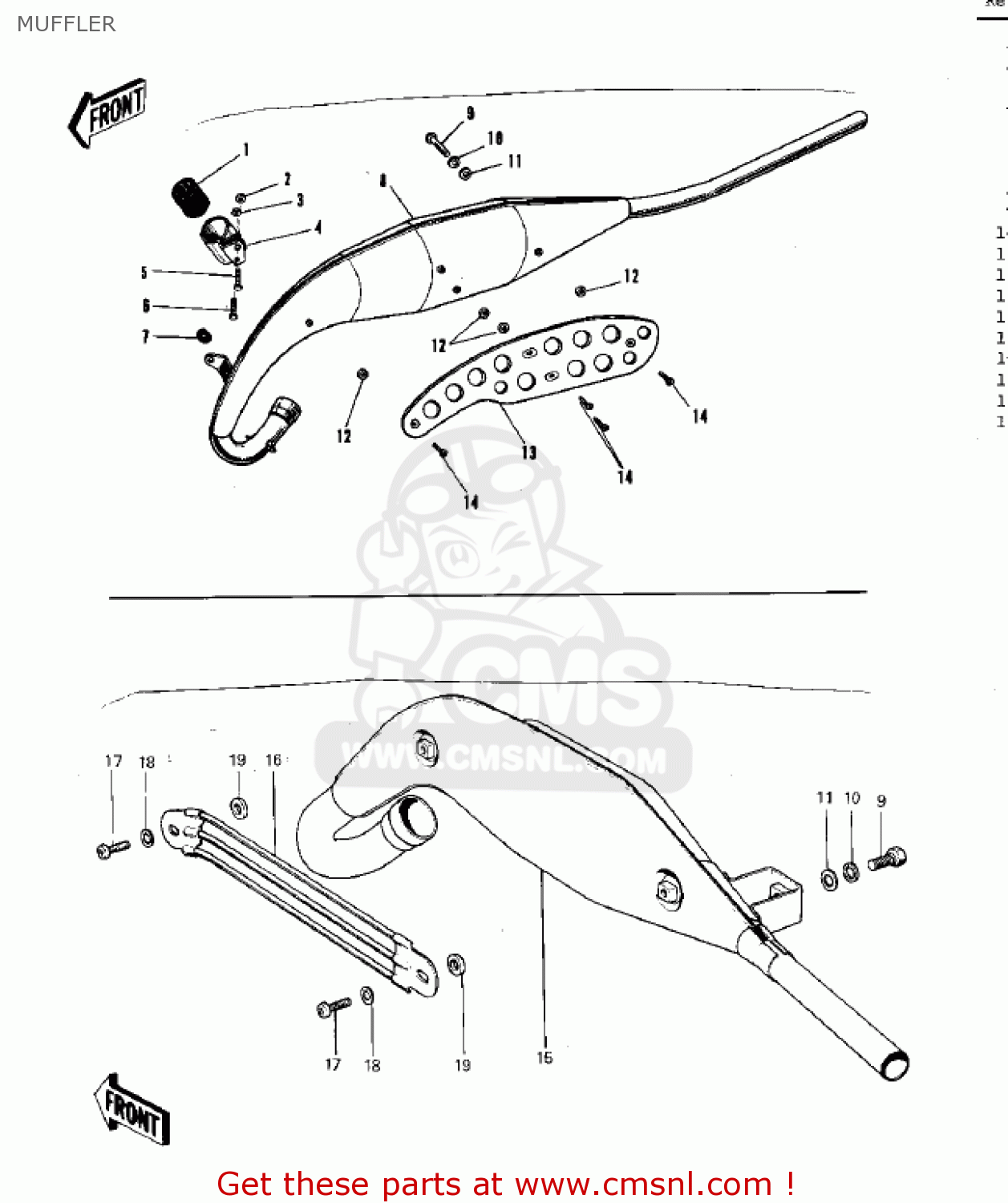

MUFFLER

ref

part #

description

quantity

1

18063006
ref: 1

MUFFLER DAMPER,RUBBER

€ 8.00

2

311B0800
ref: 2

NUT,8MM

€ 0.50

3

311B0600
ref: 3

NUT,6MM

€ 0.50

4

18061029
ref: 4

BRACKET,FRONT

€ 17.00

5

115G0825
ref: 5

BOLT-HEX,HEAD,8X25

€ 3.00

6

112G0620
ref: 6

BOLT 6X20

€ 1.00

7

92071038
ref: 7

GROMMET,PIPE

€ 2.50

8

18002055
ref: 8

MUFFLER

€ 256.00

9

115G0816
ref: 9

BOLT-HEX,HEAD 8X16

€ 0.50

10

461F0800
ref: 10

WASHER-SPRING,8MM

€ 0.50

11

410B0800
ref: 11

WASHER-PLAIN-SMALL,8M

€ 0.50

12

18065001
ref: 12

INSULATOR

€ 1.50

13

18057033
ref: 13

MUFFLER COVER

€ 43.50

14

221B0610
ref: 14

SCREW-CNTSNK HD,6X10

€ 2.50

15

18002075
ref: 15
G31MA

MUFFLER

€ 326.50

16

18057041
ref: 16
G31MA

MUFFLER COVER

€ 52.50

17

220B0610
ref: 17
G31MA

SCREW-PAN HEAD,6X10

€ 2.00

18

463H0600
ref: 18
G31MA

WASHER-LOCK,6MM

€ 0.50

19

18065006
ref: 19
G31MA

INSULATOR

€ 4.50

all assemblies
