TRANSMISSION

EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA

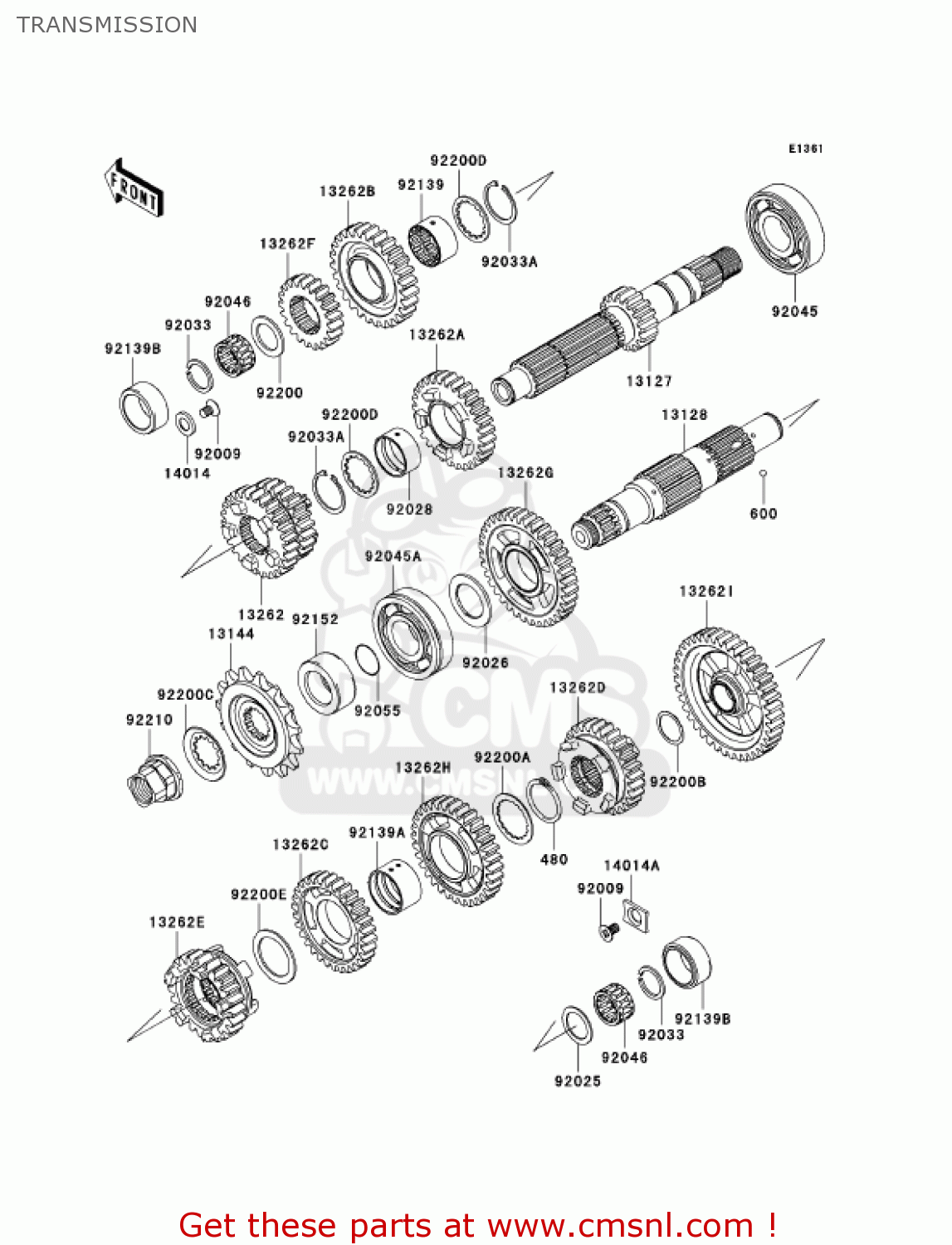

Transmission diagram EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA

TRANSMISSION EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA
TRANSMISSION EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA
TRANSMISSION EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J2900
ref: 480
CIRCLIP
480J2900
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131270028
ref: 13127
SHAFT-TRANSMISSION IN
131270028
€ 221.00
13128
131280020
ref: 13128
SHAFT-TRANSMISSION OU
€ 177.00
13144
131440024
ref: 13144
SPROCKET-OUTPUT,15T,#
131440024
€ 31.50
13262
132620245
ref: 13262
GEAR,INPUT 3RD&4TH,24
€ 110.00
13262A
132620246
ref: 13262A
GEAR,INPUT 5TH,29T
132620246
€ 96.50
13262B
132620247
ref: 13262B
GEAR,INPUT TOP,27T
132620247
€ 96.50
13262C
132620251
ref: 13262C
GEAR,OUTPUT 4TH,30T
€ 97.50
13262D
132620252
ref: 13262D
GEAR,OUTPUT 5TH,28T
132620252
€ 106.50
13262E
132620253
ref: 13262E
GEAR,OUTPUT TOP,23T
132620253
€ 114.50
13262F
132620335
ref: 13262F
GEAR,INPUT 2ND,21T
132620335
€ 38.50
13262G
132620337
ref: 13262G
GEAR,OUTPUT 2ND,36T
132620337
€ 93.00
13262H
132620338
ref: 13262H
GEAR,OUTPUT 3RD,32T
132620338
€ 93.00
13262I
132620346
ref: 13262I
GEAR,OUTPUT LOW,39T
132620346
€ 110.00
14014
140140019
ref: 14014
PLATE-POSITION,LH
140140019
€ 2.50
14014A
140140020
ref: 14014A
PLATE-POSITION,RH
€ 3.50
92009
920091375
ref: 92009
SCREW,6X10
920091375
€ 2.50
92025
920251455
ref: 92025
SHIM,20.3X28X1.1
920251455
€ 1.50
92026
920261529
ref: 92026
SPACER,25.3X39X2.0
920261529
€ 7.50
92028
920281449
ref: 92028
BUSHING,INPUT 5TH GEA
920281449
€ 17.50
92033
92033015
ref: 92033
CIRCLIP
92033015
€ 2.50
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
920331037
€ 3.00
92045
920450042
ref: 92045
BEARING-BALL,25X62X17
920450042
€ 35.00
92045A
920451224
ref: 92045A
BEARING-BALL,6305N2SH
920451224
€ 40.00
92046
920461185
ref: 92046
BEARING-NEEDLE,KMJ20X
920461185
€ 17.50
92055
920551293
ref: 92055
RING-O, 21.5MM
920551293
€ 3.00
92139
921390107
ref: 92139
BUSHING,INPUT TOP GEA
921390107
€ 19.50
92139A
921390108
ref: 92139A
BUSHING,OUT 3RD&4TH G
921390108
€ 15.00
92139B
921390120
ref: 92139B
BUSHING,BEARING-NEEDL
921390120
€ 22.50
92152
921520300
ref: 92152
COLLAR,25X40X17.2
921520300
€ 20.50
92200
922000221
ref: 92200
WASHER,20.2X30X1.8
922000221
€ 2.50
92200A
922000222
ref: 92200A
WASHER,30.3X38X1.0
922000222
€ 3.50
92200B
922000291
ref: 92200B
WASHER,20.2X25.0X0.5
922000291
€ 1.50
92200C
922001065
ref: 92200C
WASHER
922001065
€ 4.50
92200D
922001240
ref: 92200D
WASHER,2ND,3RD,4TH
922001240
€ 7.00
92200E
922001278
ref: 92200E
WASHER,29.9X40X1.5
922001278
€ 8.00
92210
922100222
ref: 92210
NUT,M20,L=24MM
922100222
€ 28.50
