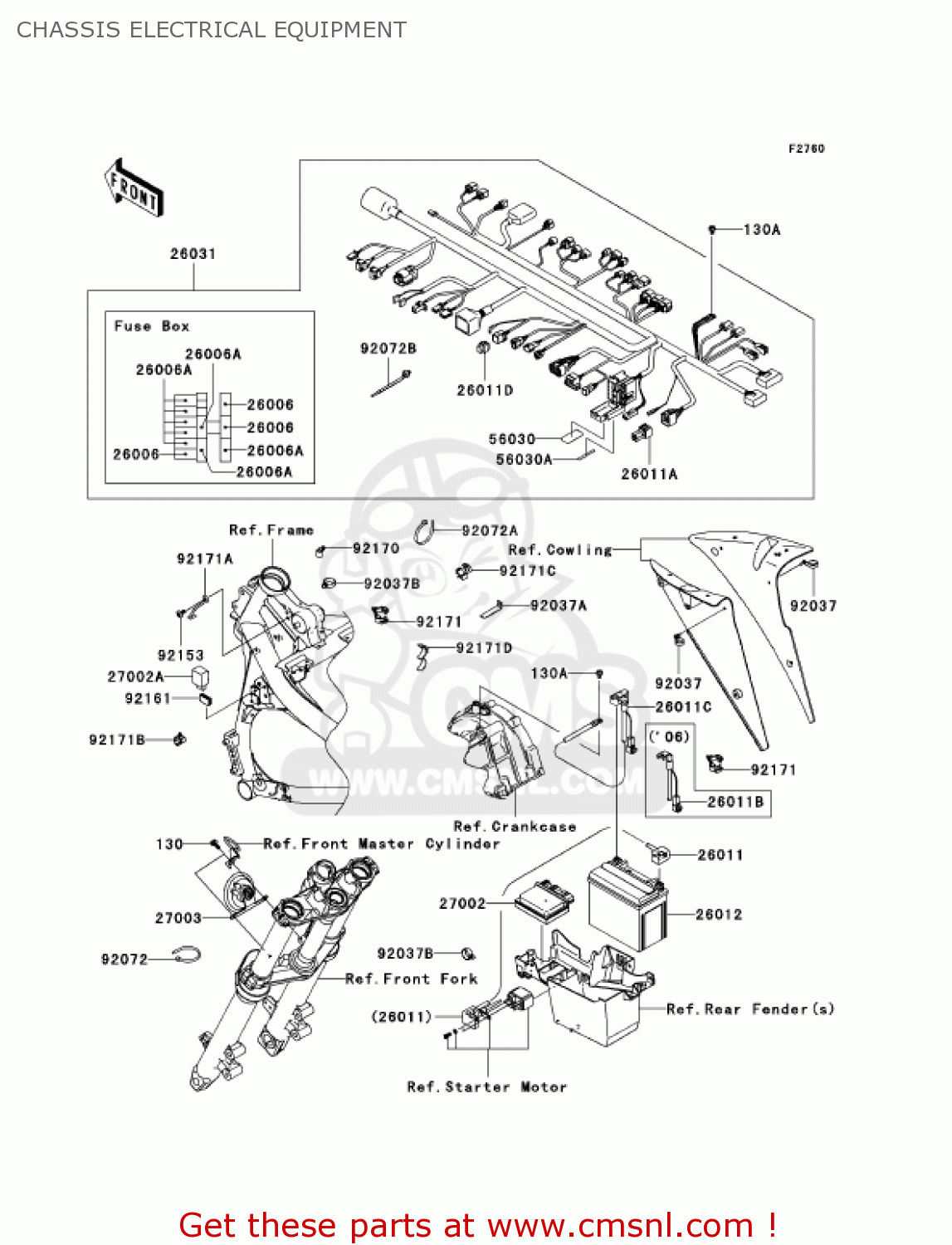

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130L0614
ref: 130

BOLT-FLANGED

€ 1.50

130A

130V0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

26006

260060001
ref: 26006

FUSE,15A

€ 4.00

26006A

260061078
ref: 26006A

FUSE,10A

€ 3.50

26011

260110073
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 29.50

26011A

260110082
ref: 26011A

WIRE-LEAD

€ 17.00

26011B

260110096
ref: 26011B

WIRE-LEAD,BATTERY(-)

€ 20.50

26011D

260110101
ref: 26011D

WIRE-LEAD,SENSOR CONN

€ 8.50

26012

260121330
ref: 26012

BATTERY,YTX12BS,12V10

€ 120.50

26031

260310419
ref: 26031

HARNESS,MAIN

€ 365.00

27002

270020007
ref: 27002

RELAY-ASSY

€ 112.50

27002A

270020010
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 42.00

27003

270030044
ref: 27003

HORN

€ 53.00

56030

560300046
ref: 56030

LABEL,FUSE BOX

€ 4.00

56030A

560300098
ref: 56030A

LABEL,FUSE BOX

€ 2.50

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92037A

920371316
ref: 92037A

CLAMP

€ 1.50

92037B

920371827
ref: 92037B

CLAMP,HOSE

€ 5.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721237
ref: 92072A

BAND,L=250

€ 2.00

92072B

920721414
ref: 92072B

BAND

€ 2.00

92153

921531446
ref: 92153

BOLT,SOCKET,6X14

€ 1.50

92161

921610283
ref: 92161

DAMPER,SIGNAL RELAY

€ 2.00

92170

921701804
ref: 92170

CLAMP

€ 3.00

92171

921710069
ref: 92171

CLAMP,20MM DIA.

€ 2.00

92171A

921710657
ref: 92171A

CLAMP,HARNESS

€ 5.50

92171B

921711415
ref: 92171B

CLAMP,C CRIP,DIA=13

€ 1.50

92171C

921711424
ref: 92171C

CLAMP,DIA=15

€ 3.00

92171D

921711559
ref: 92171D

CLAMP,25MM DIA.

€ 4.00
