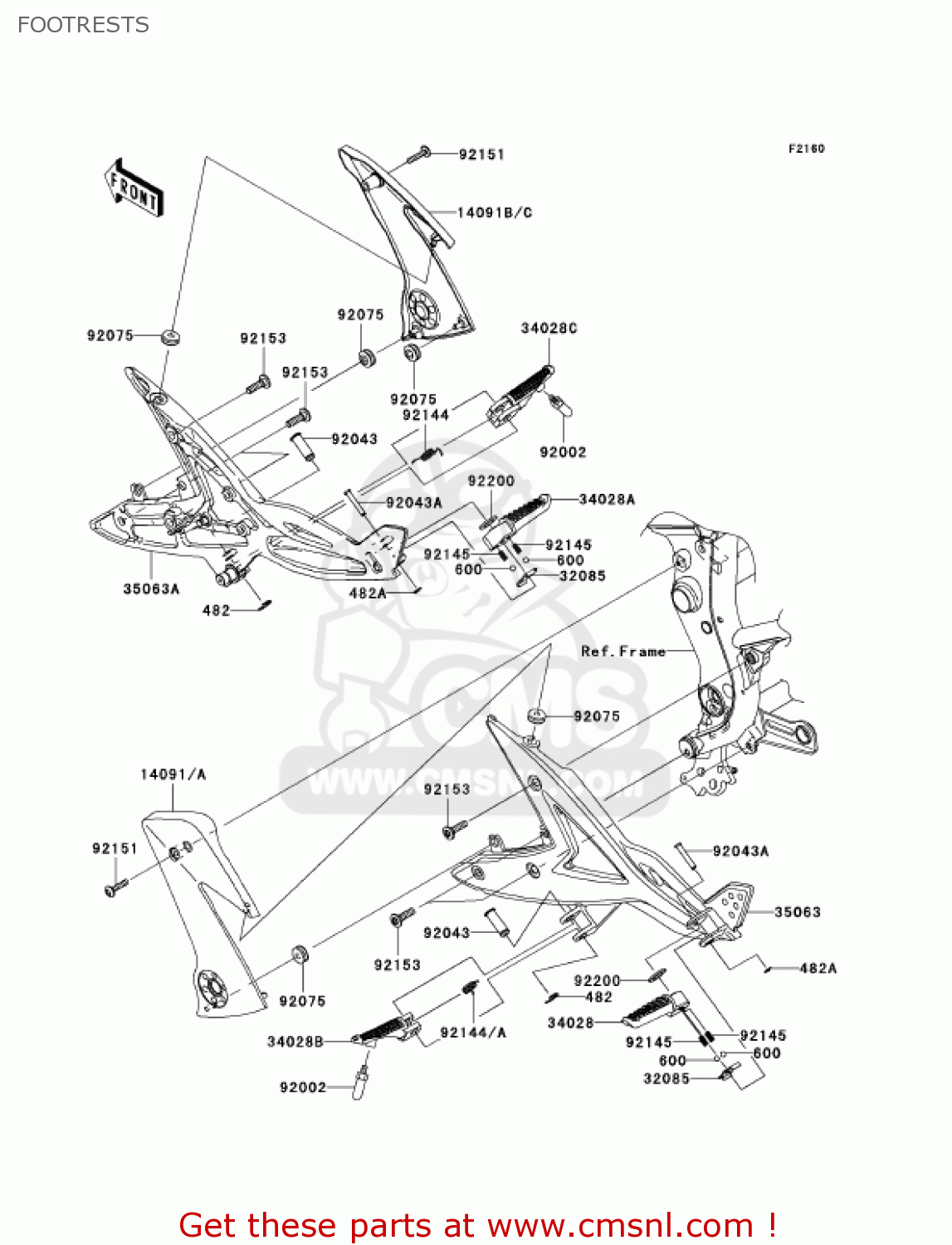

FOOTRESTS

ref

part #

description

quantity

482

482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

482A

482L5000
ref: 482A

CIRCLIP-TYPE-E,5MM

€ 1.00

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

14091A

140910461837A
ref: 14091A

140910461837A

14091C

140910462837A
ref: 14091C

COVER,PIVOT,RH,S.F.C.

€ 23.50

32085

320850047
ref: 32085

STOPPER,REAR STEP

€ 4.00

34028

340280004
ref: 34028

STEP,RR,LH

€ 72.00

34028A

340280005
ref: 34028A

STEP,RR,RH

€ 72.00

34028B

340280029
ref: 34028B

STEP,FR,LH

€ 69.50

34028C

340280030
ref: 34028C

STEP,FR,RH

€ 69.50

35063

350630285735A
ref: 35063

STAY,STEP,LH,M.SILVER

€ 135.00

35063A

350630286735A
ref: 35063A

STAY,STEP,RH,M.SILVER

€ 135.00

92002

920021995
ref: 92002

BOLT,BANK SENSOR

€ 9.50

92043

920430028
ref: 92043

PIN,12X36.5

€ 6.50

92043A

920431595
ref: 92043A

PIN,6X40

€ 1.50

92075

920751067
ref: 92075

DAMPER,SIDE COVER

€ 3.00

92144

921441567
ref: 92144

SPRING,STEP RETURN,LH

€ 4.00

92144A

921441568
ref: 92144A

SPRING,STEP RETURN,RH

€ 4.00

92145

921451319
ref: 92145

SPRING

€ 1.00

92151

921511605
ref: 92151

BOLT,SOCKET,6X30

€ 1.50

92153

921531630
ref: 92153

BOLT,SOCKET,8X30

€ 1.50

92200

922000043
ref: 92200

WASHER,16X26X2.3

€ 5.00

all assemblies
