ENGINE MOUNT

EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA

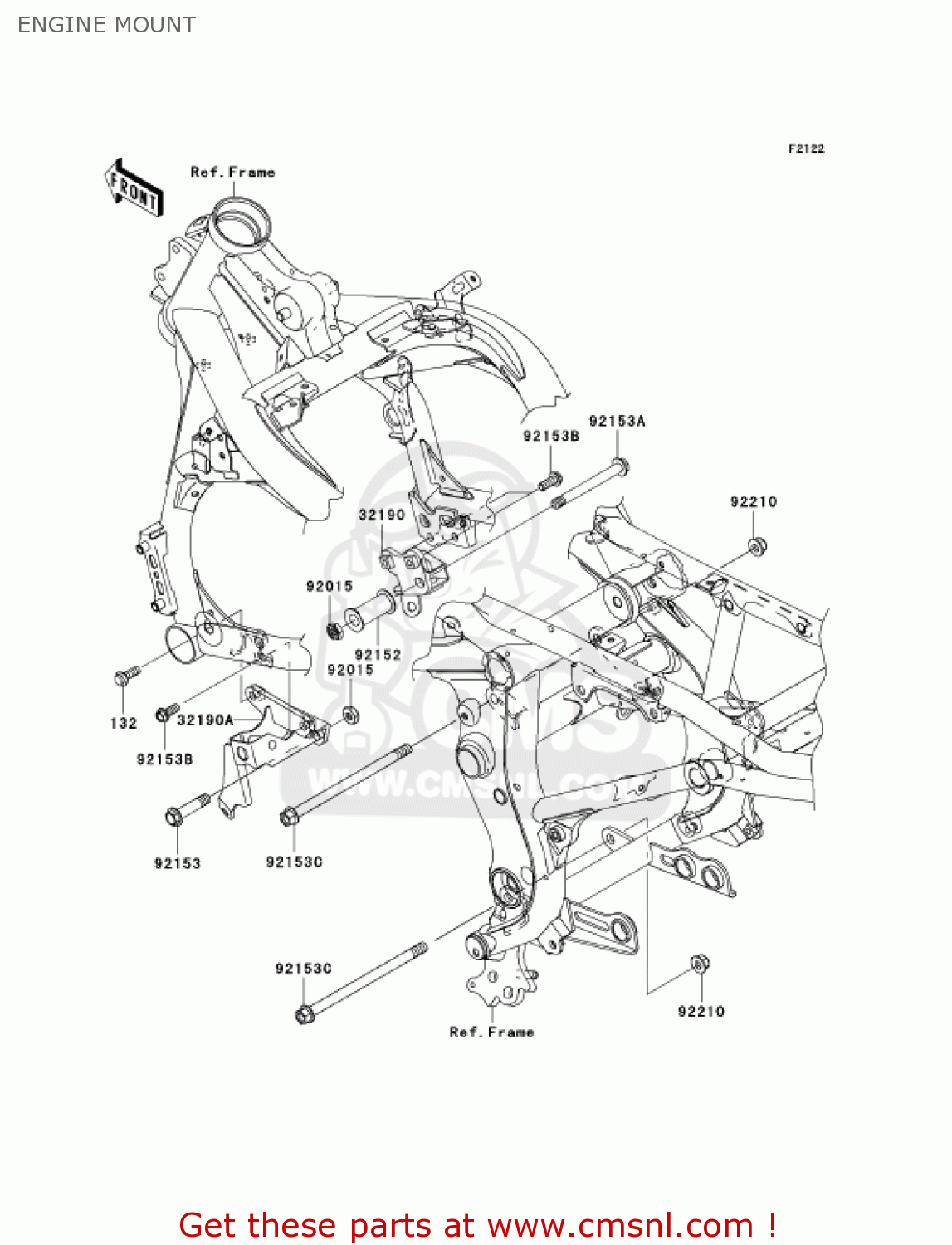

Engine mount diagram EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132L0822
ref: 132

BOLT-FLANGED-SMALL,8X

€ 1.50

32190

321900255
ref: 32190

BRACKET-ENGINE,RH

€ 38.00

32190A

321900257
ref: 32190A

BRACKET-ENGINE,LH

€ 46.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92152

921520311
ref: 92152

COLLAR,ENGINE MOUNT

€ 7.00

92153

921530823
ref: 92153

BOLT,FLANGED,10X47

€ 5.00

92153A

921530976
ref: 92153A

BOLT,FLANGED,10X95

€ 8.00

92153B

921530995
ref: 92153B

BOLT,FLANGED,8X20

€ 3.00

92153C

921531428
ref: 92153C

BOLT,FLANGED,10X170

€ 9.50

92210

922101081
ref: 92210

NUT

€ 8.50
