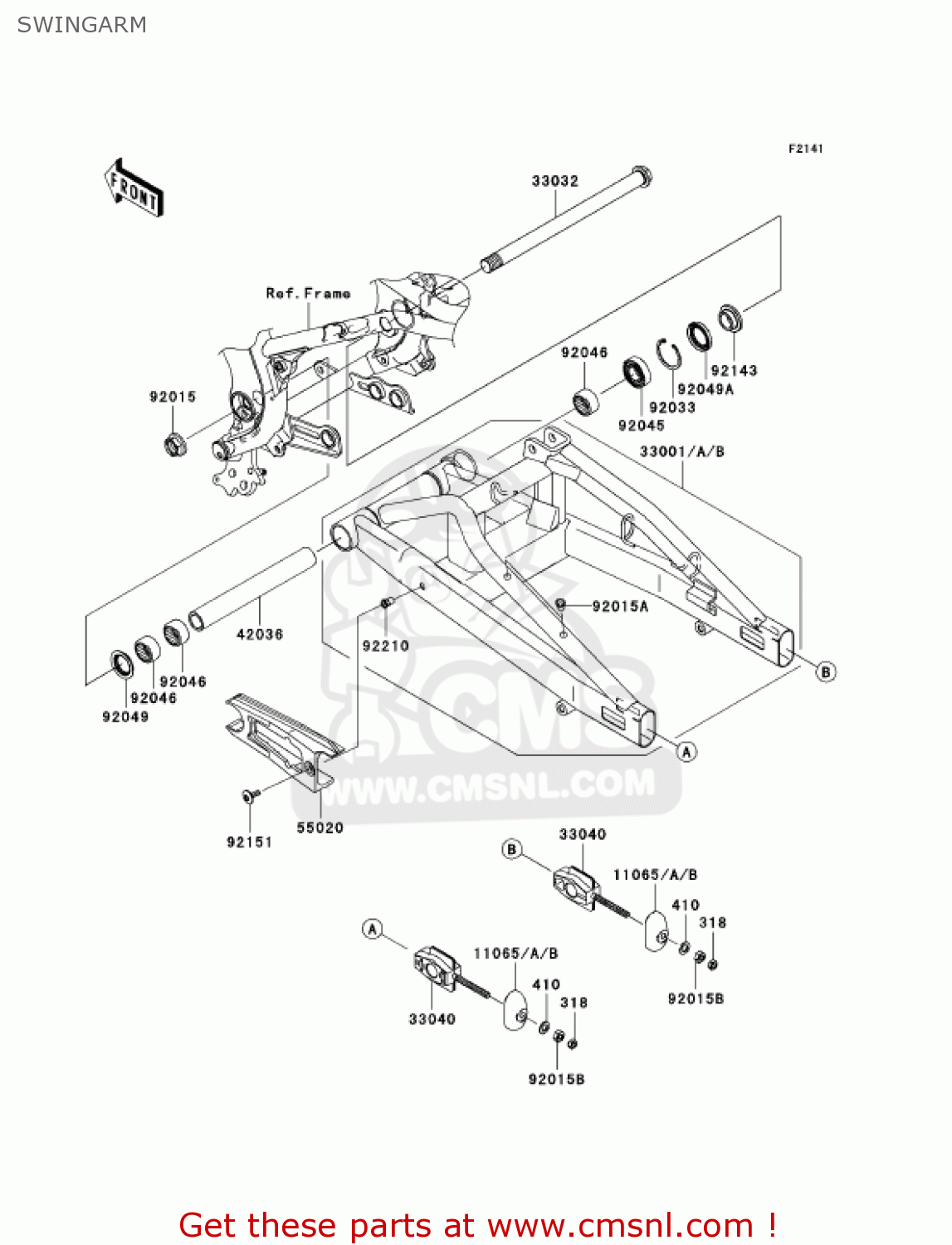

SWINGARM

ref

part #

description

quantity

318

318C0800
ref: 318

NUT-HEX-SMALL

€ 0.50

410

410F0800
ref: 410

WASHER-PLANE-SMALL,8M

€ 3.00

11065A

110650121793A
ref: 11065A
[CN]

CAP,CHAIN ADJUSTER,M.BRONZE

€ 16.00

11065B

110650121796A
ref: 11065B

CAP,CHAIN ADJUSTER,P.

€ 15.50

33001A

330010081793A
ref: 33001A
[CN]

ARM-COMP-SWING,M.BRONZE

€ 0.00

33001B

330010081796A
ref: 33001B

ARM-COMP-SWING,P.RED

€ 295.00

33032

330321142
ref: 33032

SHAFT-SWING ARM

€ 79.00

33040

330400015
ref: 33040

ADJUSTER-CHAIN,INNER

€ 14.00

42036

420361358
ref: 42036

SLEEVE,SWING ARM,L=21

€ 49.00

55020

550200192
ref: 55020

GUARD,CHAIN

€ 22.50

92015

920151724
ref: 92015

NUT,FLANGED,20MM

€ 10.50

92015A

920151759
ref: 92015A

NUT,POP,6MM

€ 3.00

92015B

920151959
ref: 92015B

NUT

€ 4.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92045

920450017
ref: 92045

BEARING-BALL,6004UL11

€ 14.00

92046

920460008
ref: 92046

BEARING-NEEDLE,7E-HVS

€ 21.00

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50

92049A

920491185
ref: 92049A

SEAL-OIL,TC28426.5

€ 7.50

92143

921431727
ref: 92143

COLLAR,SWING ARM,RH,L

€ 13.50

92151

921511149
ref: 92151

BOLT,SOCKET,6X18

€ 5.50

92210

922101397
ref: 92210

AUT,POP,6MM,L=15

€ 3.00
