CRANKCASE BOLT PATTERN

EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA

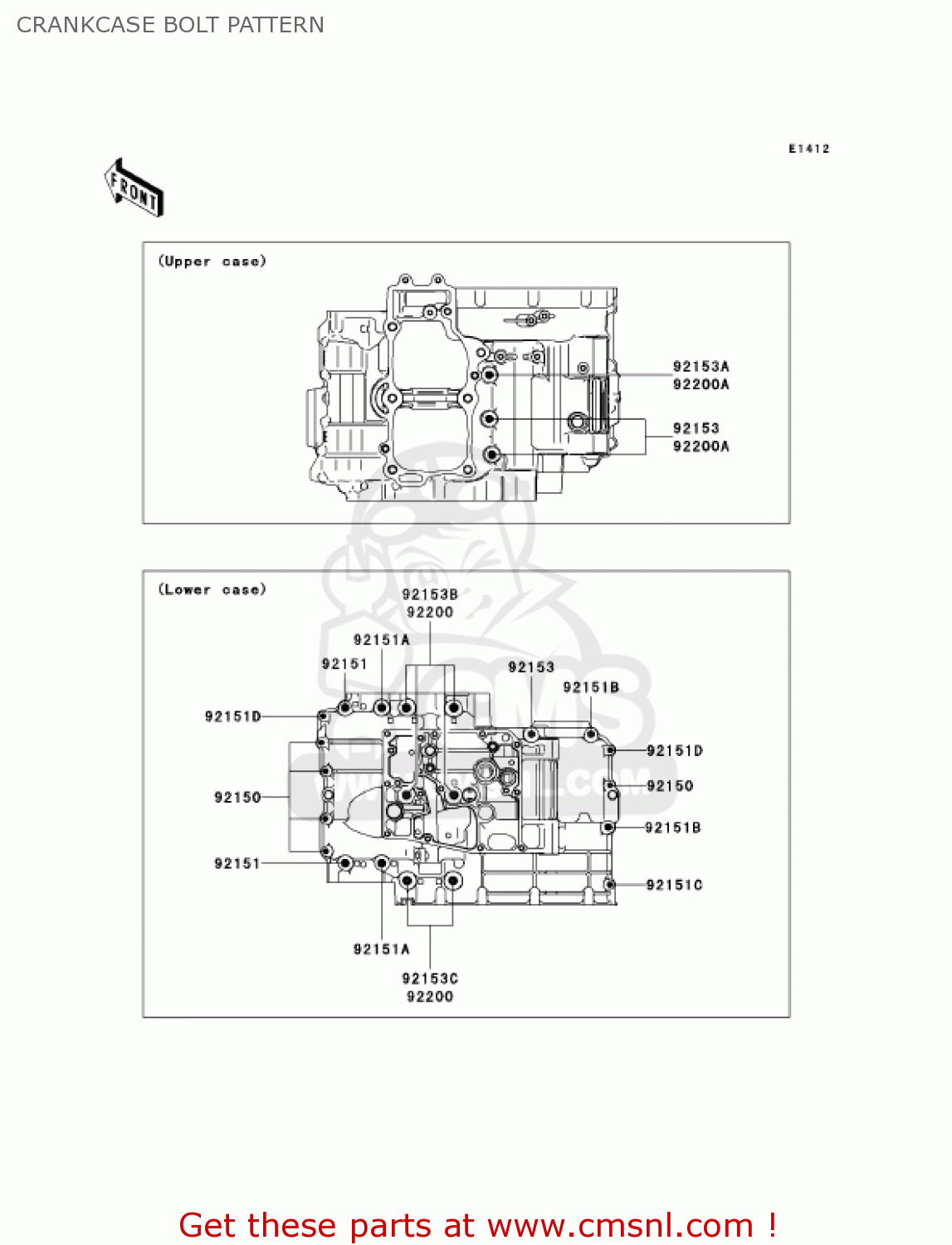

Crankcase bolt pattern diagram EX650A6F NINJA 650R 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92150

921501301
ref: 92150

BOLT,6X38

€ 2.50

92151

921511461
ref: 92151

BOLT,8X60

€ 3.00

92151

921511462
ref: 92151

BOLT,8X73

€ 3.50

92151

921511463
ref: 92151

BOLT,8X50

€ 3.00

92151

921511464
ref: 92151

BOLT,6X32

€ 2.50

92151

921511465
ref: 92151

BOLT,6X45

€ 2.50

92153

921530959
ref: 92153

BOLT,FLANGED,8X110

€ 6.50

92153

921530960
ref: 92153

BOLT,FLANGED,8X120

€ 6.50

92153

921531449
ref: 92153

BOLT,FLANGED,9X113

€ 6.50

92153

921531450
ref: 92153

BOLT,FLANGED,9X83

€ 5.50

92200

922000115
ref: 92200

WASHER,9.2X19X23

€ 2.50

92200

922001063
ref: 92200

WASHER

€ 2.50

CRANKCASE BOLT PATTERN
