TIRES

EX500E4 GPZ500S 1997 NETHERLANDS FG IT

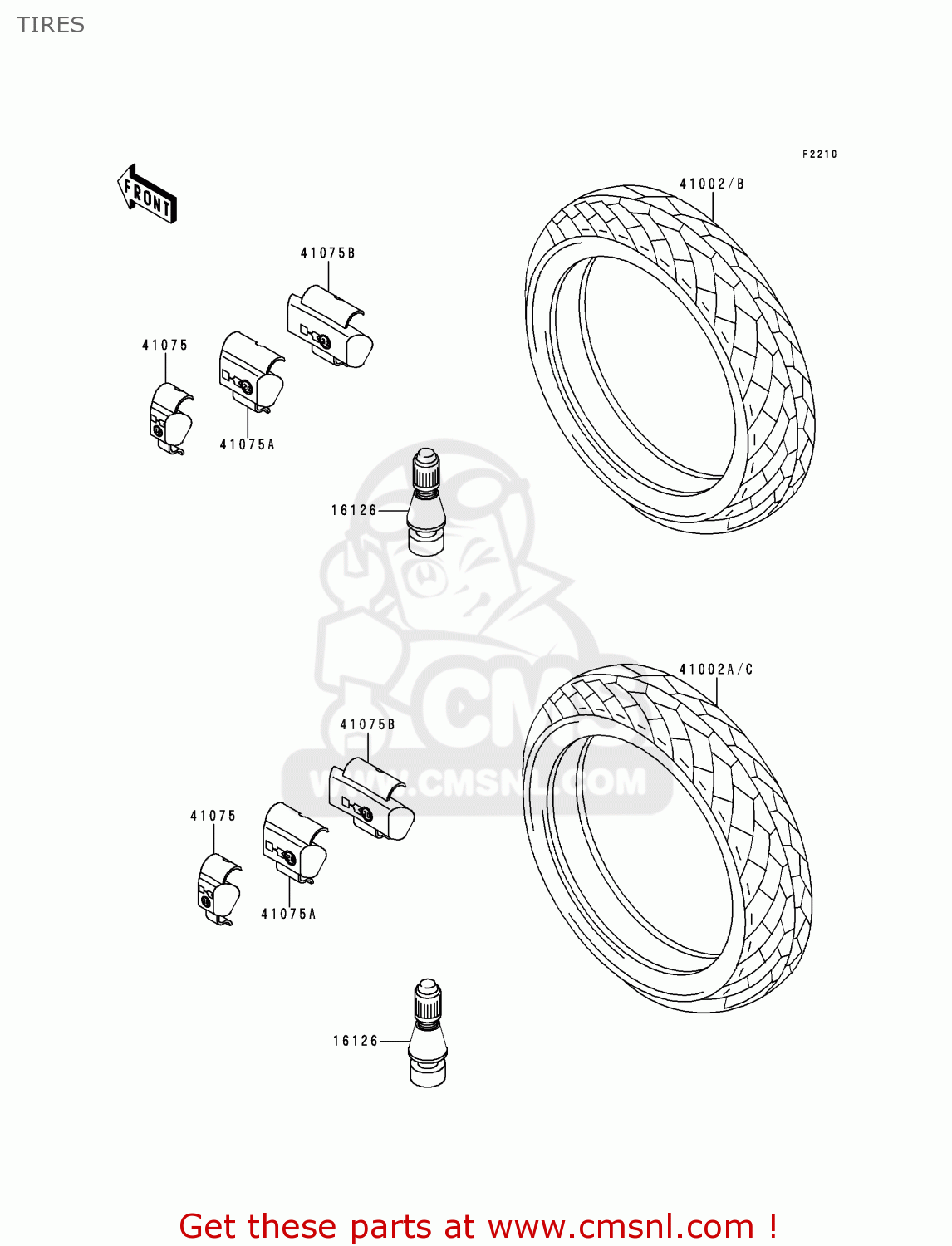

Tires diagram EX500E4 GPZ500S 1997 NETHERLANDS FG IT

prices are in EUR

ref

part #

description

quantity

16126

161261140
ref: 16126

VALVE,TIRE

€ 20.50

41002

410021960
ref: 41002

TIRE,FR,110/70-17 54H

€ 310.00

41002A

410021961
ref: 41002A

TIRE,RR,130/70-17 62H

€ 378.00

41002B

410021981
ref: 41002B

TIRE,FR,110/70-17 54H

€ 310.00

41002C

410021982
ref: 41002C

TIRE,RR,130/70-17 62H

€ 270.00

41075

410751014
ref: 41075

BALANCER-WHEEL,10G,SI

€ 7.50

41075A

410751015
ref: 41075A

BALANCER-WHEEL,20G,SI

€ 7.50

41075B

410751016
ref: 41075B

BALANCER-WHEEL,30G,SI

€ 7.50
