IGNITION SYSTEM

EX500E4 GPZ500S 1997 NETHERLANDS FG IT

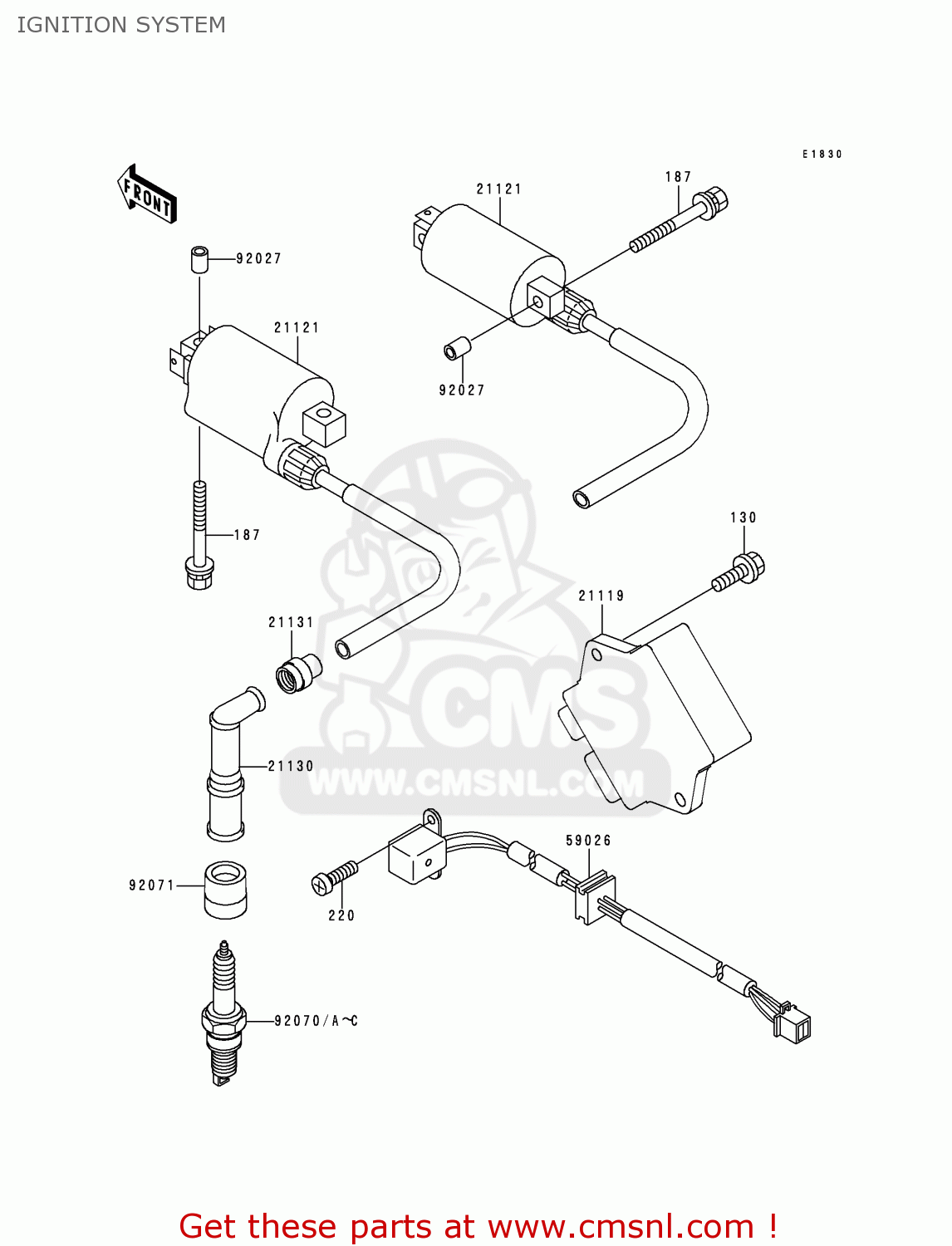

Ignition system diagram EX500E4 GPZ500S 1997 NETHERLANDS FG IT

prices are in EUR

ref

part #

description

quantity

130

130H0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

187

187G0625
ref: 187

BOLT-UPSET-WSP

€ 2.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

21119

211191408
ref: 21119

IGNITER

€ 666.00

21121

211211153
ref: 21121

COIL-IGNITION

€ 144.50

21130

211301068
ref: 21130

CAP-SPARK PLUG

€ 28.00

21131

21131005
ref: 21131

GROMMET,TENSION,ITALY

€ 4.00

59026

590261126
ref: 59026

COIL-PULSING

€ 106.50

92027

92027103
ref: 92027

COLLAR

€ 2.50

92070

ref: 92070

92070A

ref: 92070A

92070B

920701189
ref: 92070B

DR9EA (NGK SPARKPLUG)

€ 4.00

92070C

920701199
ref: 92070C

DR8EA (NGK SPARKPLUG)

€ 4.00

92071

920711146
ref: 92071

GROMMET,PLUG CAP

€ 6.50
