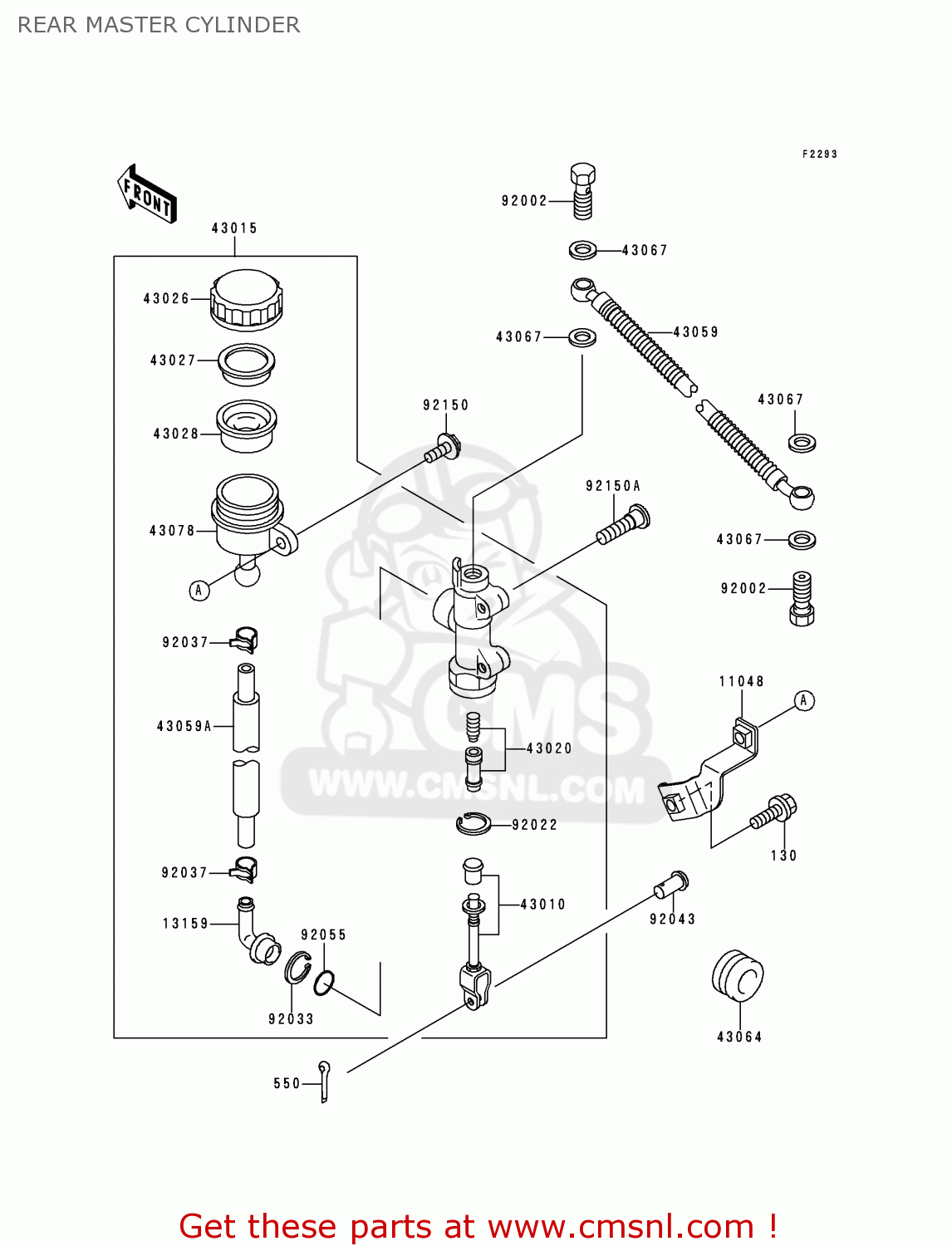

REAR MASTER CYLINDER

EX500E4 GPZ500S 1997 NETHERLANDS FG IT

Rear master cylinder diagram EX500E4 GPZ500S 1997 NETHERLANDS FG IT

REAR MASTER CYLINDER EX500E4 GPZ500S 1997 NETHERLANDS FG IT

REAR MASTER CYLINDER EX500E4 GPZ500S 1997 NETHERLANDS FG IT

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

11048

110481363
ref: 11048

BRACKET,RESERVOIR TAN

€ 8.50

13159

131591056
ref: 13159

CONNECTOR

€ 9.50

43010

430101055
ref: 43010

ROD-ASSY-BRAKE

€ 44.00

43015

430151555
ref: 43015

CYLINDER-ASSY-MASTER,

€ 385.50

43020

430201094
ref: 43020

PISTON-COMP, BRAKE

€ 47.50

43026

430261077
ref: 43026

CAP-BRAKE

€ 23.00

43027

430271053
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281065
ref: 43028

DIAPHRAGM

€ 13.00

43059

430591779
ref: 43059

HOSE-BRAKE,RR

€ 73.50

43059A

430591780
ref: 43059A

HOSE-BRAKE,RR MASTER

€ 16.50

43064

43064007
ref: 43064

43064007

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781080
ref: 43078

RESERVOIR

€ 19.00

92002

920021907
ref: 92002

BOLT

€ 3.50

92022

920221601
ref: 92022

WASHER,CIRCRIP

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92037

920371710
ref: 92037

CLAMP

€ 6.50

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92150

921501198
ref: 92150

BOLT

€ 2.50

92150A

921501843
ref: 92150A

BOLT

€ 2.50
