STAND(S)

EX500E4 GPZ500S 1997 NETHERLANDS FG IT

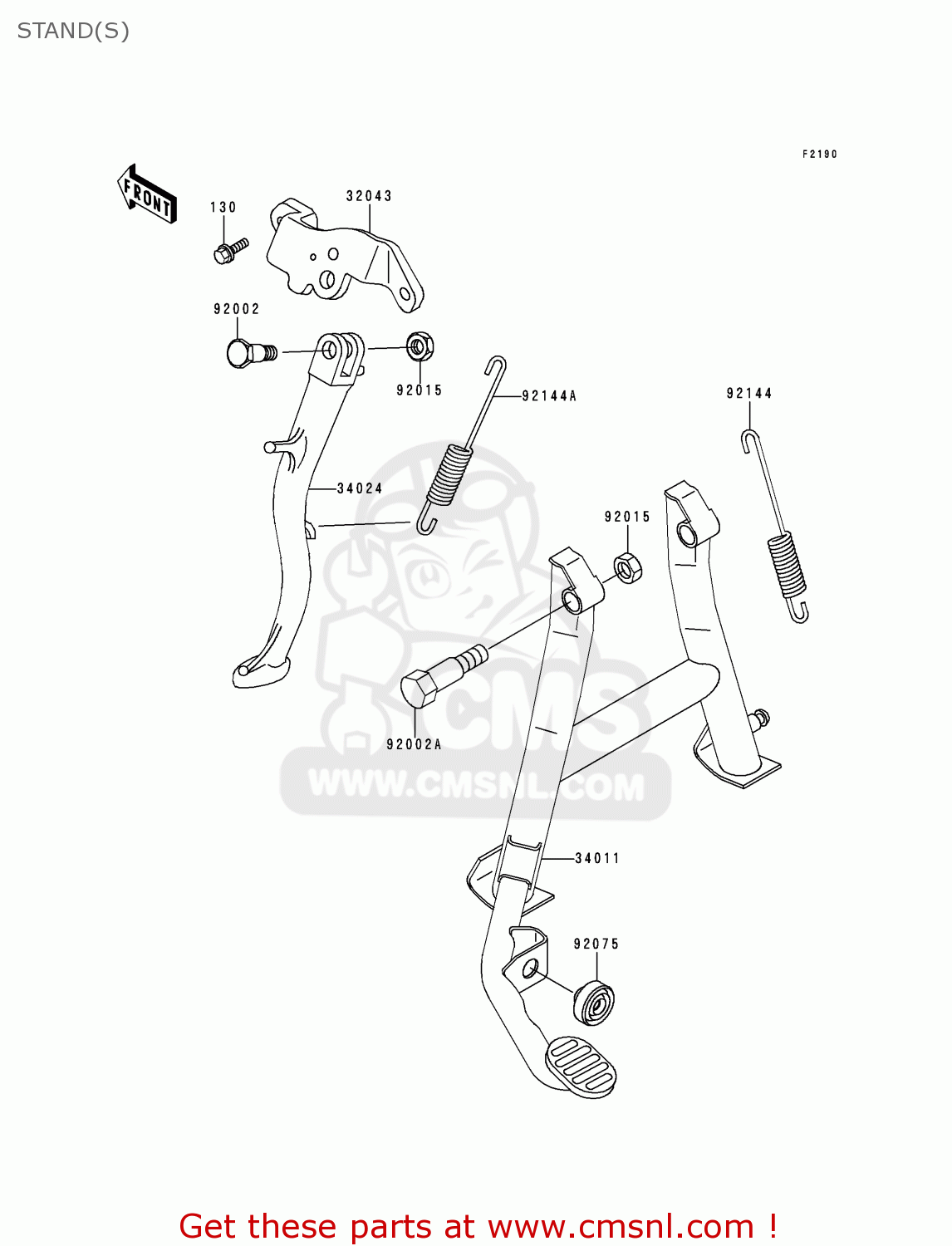

Stand(s) diagram EX500E4 GPZ500S 1997 NETHERLANDS FG IT

prices are in EUR

ref

part #

description

quantity

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

32043

320431388
ref: 32043

BRACKET-STAND,SIDE

€ 35.00

34011

340111158
ref: 34011

STAND-CENTER

€ 137.50

34024

340241255
ref: 34024

STAND-SIDE

€ 74.50

92002

920021813
ref: 92002

BOLT,SIDE STAND

€ 6.50

92002A

920021954
ref: 92002A

BOLT,CENTER STAND

€ 7.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92075

920751045
ref: 92075

DAMPER,STAND STOPPER

€ 5.00

92144

921441101
ref: 92144

SPRING,CENTER STAND

€ 16.50

92144A

921441104
ref: 92144A

SPRING,SIDE STAND

€ 11.50
