SEAT
EX500E4 GPZ500S 1997 NETHERLANDS FG IT

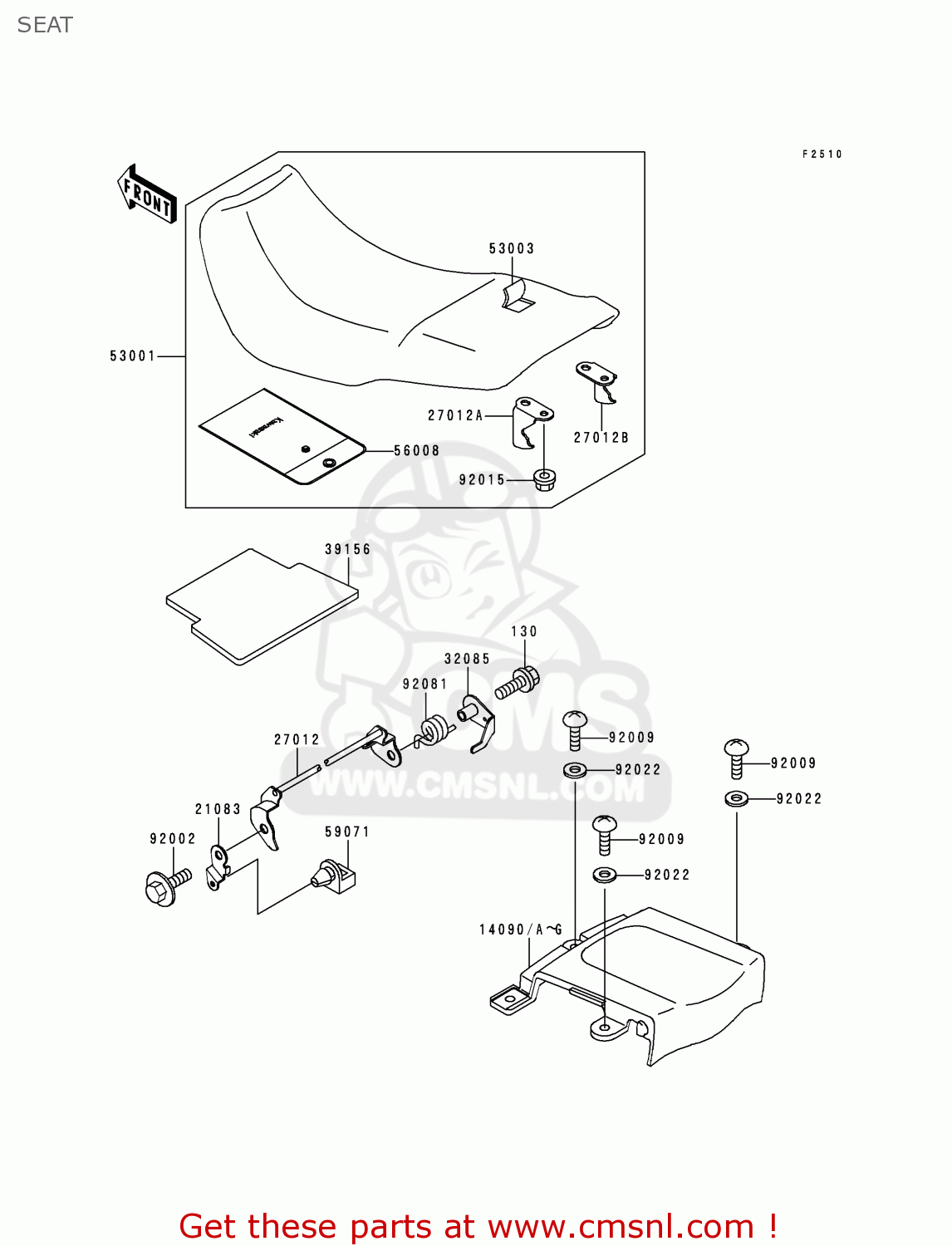

Seat diagram EX500E4 GPZ500S 1997 NETHERLANDS FG IT
SEAT EX500E4 GPZ500S 1997 NETHERLANDS FG IT
×
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
14090B
140901369F2
ref: 14090B
COVER,SEAT,G.SILVER
€ 81.00
14090E
140901369T8
ref: 14090E
COVER,SEAT,P.G.GRAY
€ 85.50
21083
210831063
ref: 21083
ARM,SEAT LOCK
€ 5.50
27012
270121363
ref: 27012
HOOK,SEAT LOCK
€ 36.00
27012A
270121377
ref: 27012A
HOOK,SEAT,LH
€ 6.00
27012B
270121378
ref: 27012B
HOOK,SEAT,RH
€ 7.00
32085
320851270
ref: 32085
STOPPER,SEAT LOCK SPR
€ 10.50
39156
391561420
ref: 39156
PAD,SEAT
€ 14.00
53001
530011726MA
ref: 53001
SEAT-ASSY,DUAL,BLACK
€ 317.00
53003
530031284MA
ref: 53003
LEATHER,SEAT,BLACK
€ 132.50
56008
560081066
ref: 56008
BAG,HAND BOOK
€ 34.00
59071
590711103
ref: 59071
JOINT
€ 5.50
92002
920021884
ref: 92002
BOLT,6X12
€ 2.50
92009
920091654
ref: 92009
SCREW
€ 0.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92081
920811982
ref: 92081
SPRING
€ 3.50
