CARBURETOR
EX500E4 GPZ500S 1997 NETHERLANDS FG IT

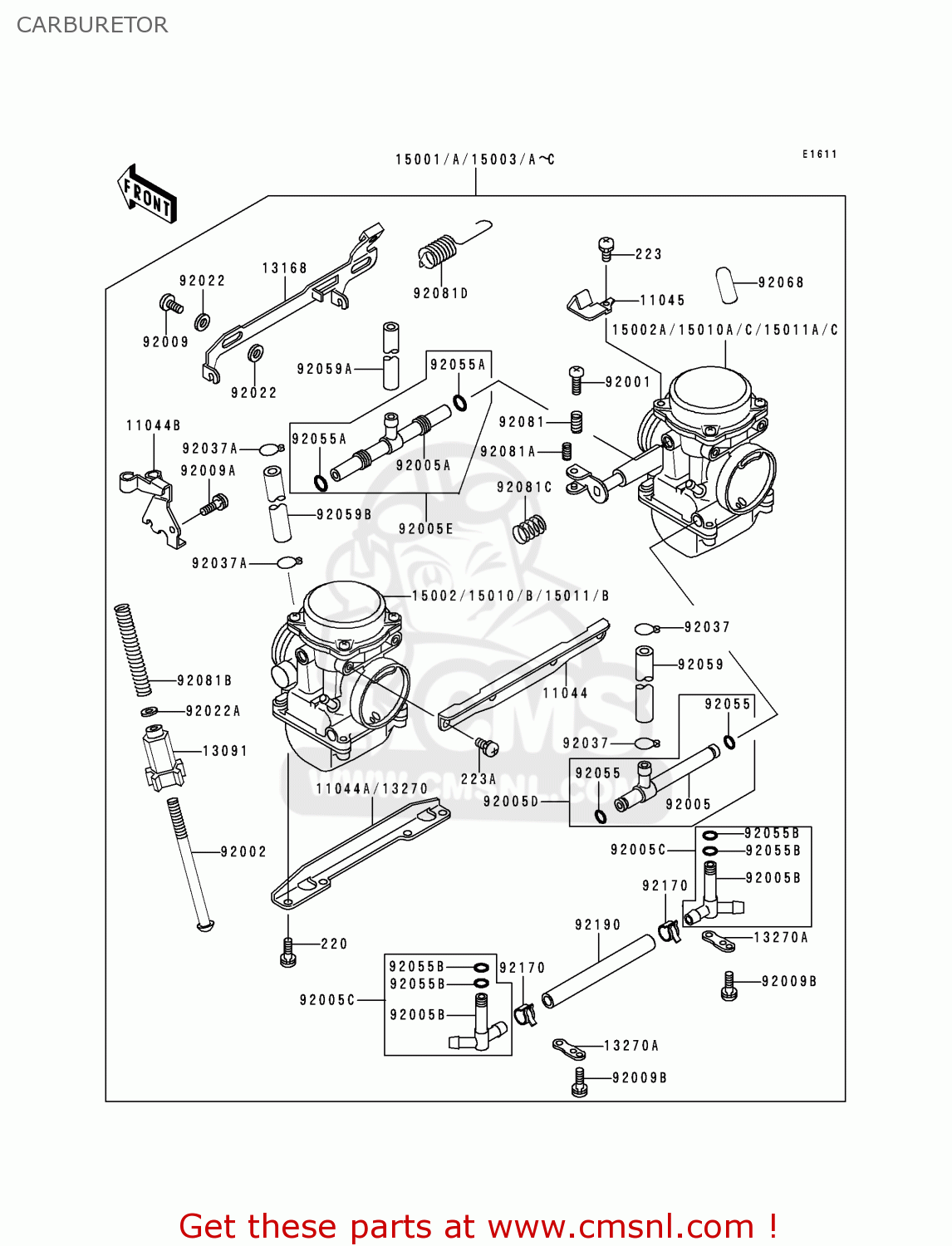

Carburetor diagram EX500E4 GPZ500S 1997 NETHERLANDS FG IT
CARBURETOR EX500E4 GPZ500S 1997 NETHERLANDS FG IT
×
prices are in EUR
ref
part #
description
quantity
11044
110441313
ref: 11044
BRACKET,CARBURETOR ST
€ 43.50
11044B
110441546
ref: 11044B
BRACKET,THROTTLE CABL
€ 41.00
11045
110451824
ref: 11045
BRACKET,STARTER LEVER
€ 44.50
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
€ 11.00
13168
131681360
ref: 13168
LEVER
€ 55.50
13270
132701062
ref: 13270
PLATE,LWR,STAY
€ 47.00
13270A
132701063
ref: 13270A
PLATE,JOINT STAY
€ 21.00
15003
150031082
ref: 15003
ITNL
CARBURETOR-ASSY
€ 1,472.00
15003A
150031303
ref: 15003A
FG
CARBURETOR-ASSY
€ 800.00
15010B
150101678
ref: 15010B
ITNL
CARBURETOR,LH
€ 1,011.50
15010C
150101679
ref: 15010C
ITNL
CARBURETOR,RH
€ 1,011.50
15011
150111341
ref: 15011
FG
CARBURETOR,LH
€ 1,054.00
15011A
150111342
ref: 15011A
FG
CARBURETOR,RH
€ 1,054.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92002
920021552
ref: 92002
BOLT,THROTTLE STOP SC
€ 10.00
92005
920051133
ref: 92005
ITNL
FITTING
€ 37.50
92005A
920051134
ref: 92005A
ITNL
FITTING
€ 43.00
92005B
920051257
ref: 92005B
ITNL
FITTING
€ 18.50
92005C
920051291
ref: 92005C
FG
FITTING
€ 26.50
92005D
920051325
ref: 92005D
FG
FITTING
€ 37.00
92005E
920051326
ref: 92005E
FG
FITTING
€ 37.00
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091705
ref: 92009B
SCREW 4X8
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
ITNL
O RING
€ 2.50
92055A
920551223
ref: 92055A
ITNL
RING-O,FUEL FITTING
€ 3.50
92055B
920551427
ref: 92055B
ITNL
RING-O,4.5X1.5
€ 3.00
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591465
ref: 92059A
TUBE,6.5X9.5X500
€ 20.50
92059B
920591634
ref: 92059B
TUBE,5X9X140
€ 12.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92068
92068006
ref: 92068
ITNL
RUBBER PLUG
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811875
ref: 92081B
SPRING,THROTTLE STOP
€ 5.50
92081C
920811876
ref: 92081C
SPRING
€ 6.00
92081D
920811893
ref: 92081D
SPRING,STARTER LEVER
€ 12.50
92170
921701504
ref: 92170
CLAMP
€ 3.00
92190
921901542
ref: 92190
TUBE,WATER
€ 9.00
