SWINGARM

EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

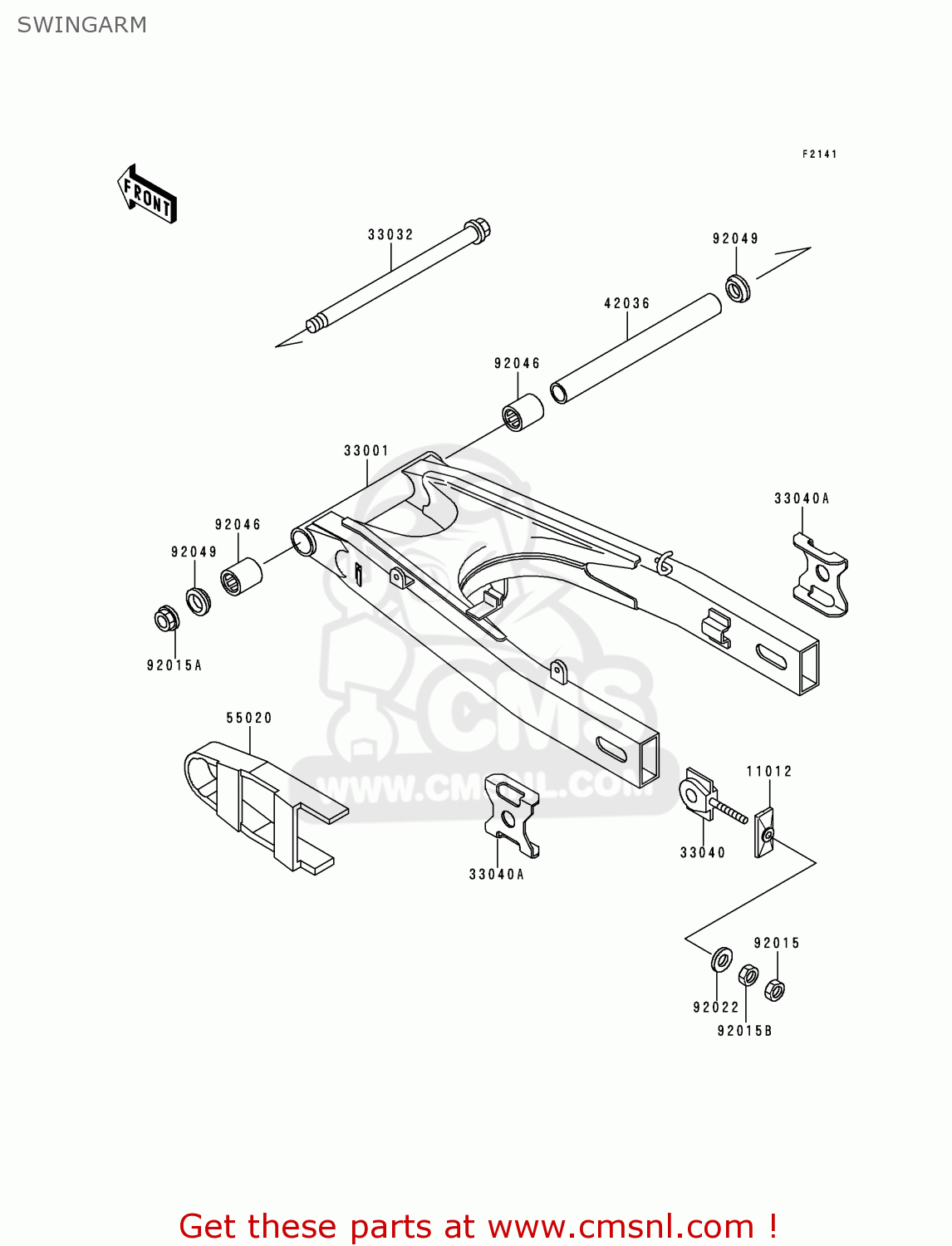

Swingarm diagram EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

SWINGARM EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

SWINGARM EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11012

11012187110
ref: 11012

CAP,CHAIN ADJUSTER,BL

€ 15.50

33001

33001144410
ref: 33001

ARM-COMP-SWING,BLACK

€ 463.00

33032

330321109
ref: 33032

SHAFT-SWING ARM

€ 31.50

33040

330401116
ref: 33040

ADJUSTER-CHAIN,INNER

€ 20.50

33040A

33040113710
ref: 33040A

ADJUSTER-CHAIN,OUTER,

€ 12.00

42036

420361212
ref: 42036

SLEEVE,14.1X22X220

€ 45.50

55020

550201500
ref: 55020

GUARD,CHAIN

€ 35.50

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151407
ref: 92015A

NUT,14MM

€ 6.50

92015B

920151658
ref: 92015B

NUT,FLANGED,8MM

€ 3.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92046

920461162
ref: 92046

BEARING-NEEDLE,F-2220

€ 20.50

92049

920491254
ref: 92049

SEAL-OIL,MHA22 28 5.7

€ 6.50
