FRAME

EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

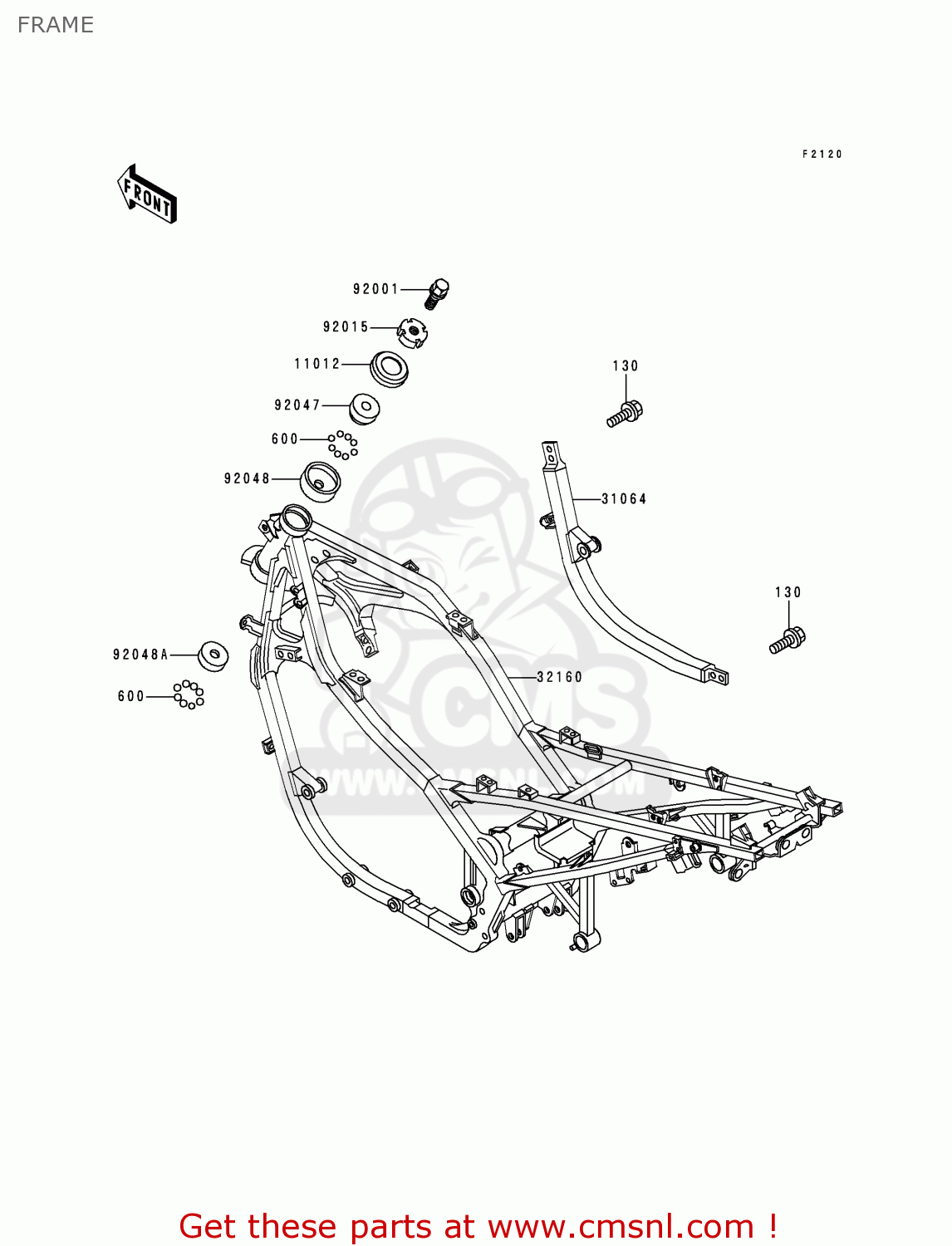

Frame diagram EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J1020
ref: 130

BOLT-FLANGED

€ 3.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

11012

110121898
ref: 11012

CAP,STEERING STEM

€ 3.50

31064

31064115510
ref: 31064

PIPE-COMP,DOWNTUBE,RH

€ 136.50

32160

32160132410
ref: 32160

FRAME-COMP,BLACK

€ 1,194.50

92001

920011488
ref: 92001

BOLT,FLANGED,16X22

€ 13.50

92015

920151301
ref: 92015

NUT,30MM,BLACK

€ 8.00

92047

92047011
ref: 92047

CONE-STRNG STM BRNG

€ 14.50

92048

92048006
ref: 92048

RACE-STRNG BEARIN-STE

€ 11.50

92048A

92048008
ref: 92048A

RACE-STRNG STM BRNG

€ 16.00
