BRAKE PEDAL/TORQUE LINK

EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

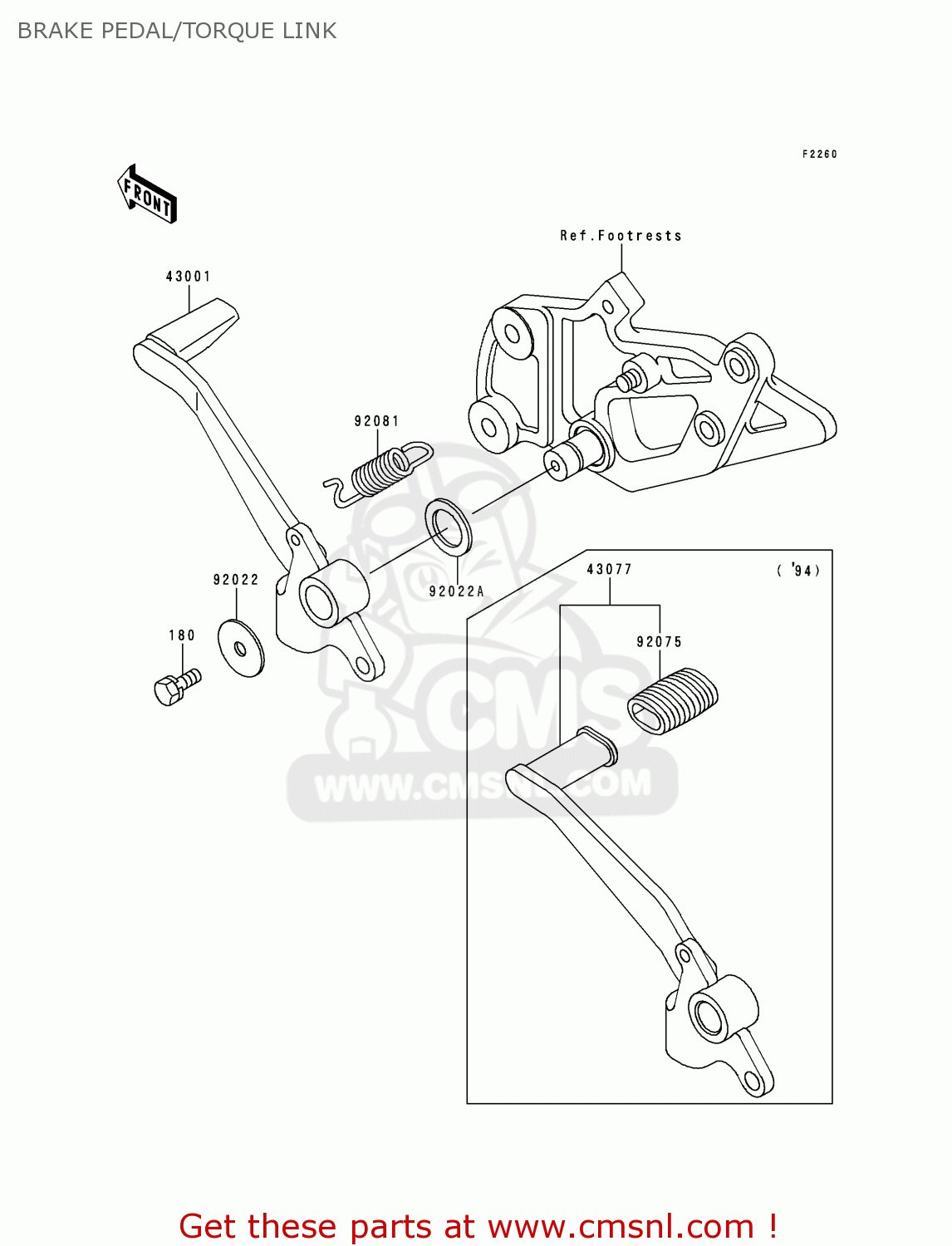

Brake pedal/torque link diagram EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

180

180D0616
ref: 180

BOLT-UPSET-WS

€ 0.50

43077

430771078
ref: 43077

LEVER-ASSY-BRAKE,PEDA

€ 48.00

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

92022326
ref: 92022A

WASHER,15.3X24X1

€ 2.50

92075

920751585
ref: 92075

DAMPER

€ 6.50

92081

920811833
ref: 92081

SPRING,BRAKE PEDAL

€ 7.00
