CYLINDER HEAD

EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

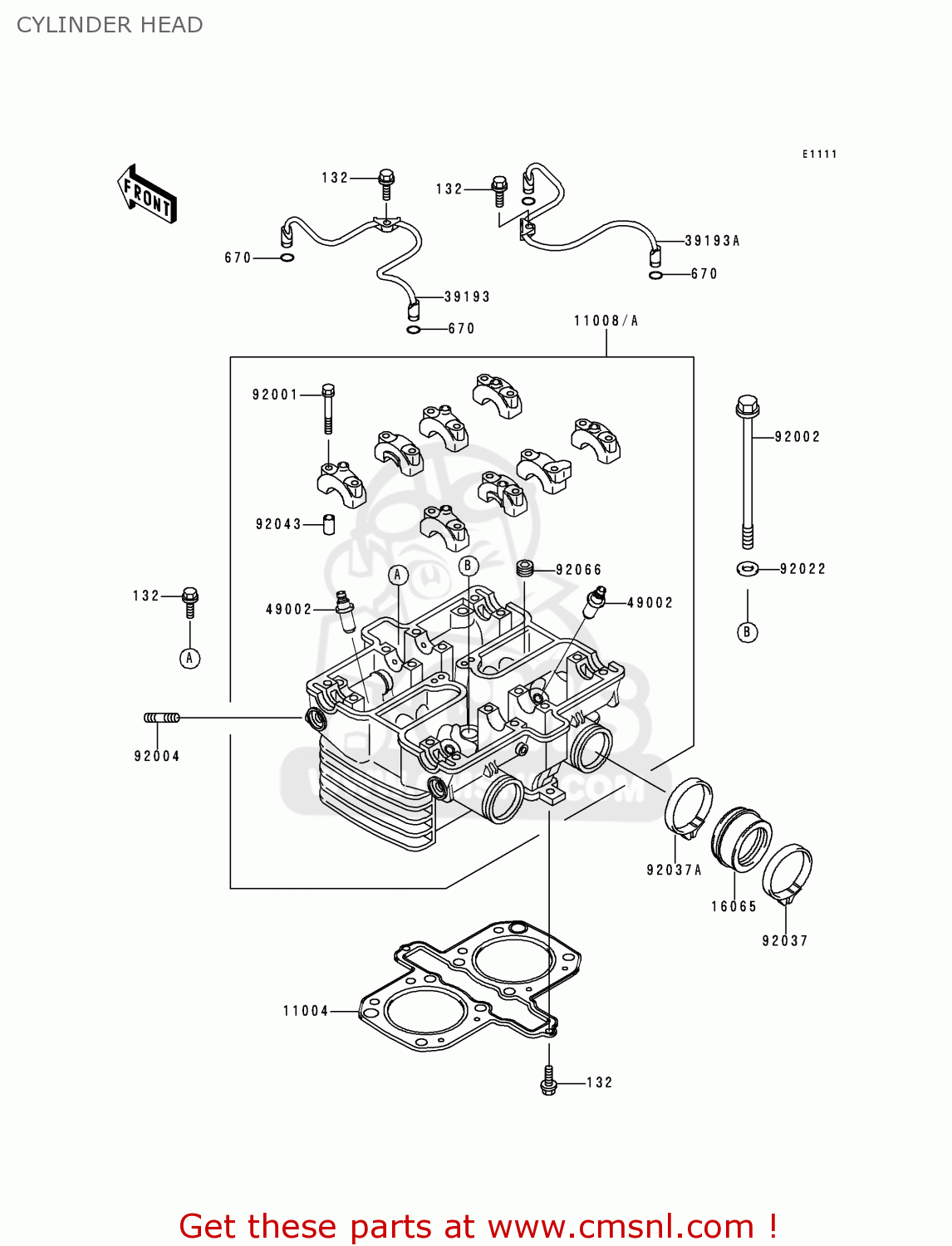

Cylinder head diagram EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

670

670D1507
ref: 670

O RING,7MM

€ 1.00

11004

110041159
ref: 11004

GASKET-HEAD (NAS)

€ 61.00

11008

110081229
ref: 11008
CAUS

HEAD-COMP-CYLINDER

€ 1,396.50

11008A

110081230
ref: 11008A
CN

HEAD-COMP-CYLINDER

€ 1,316.00

16065

160651130
ref: 16065

HOLDER-CARBURETOR

€ 25.50

39193

391931038
ref: 39193

PIPE-OIL,LH

€ 44.00

39193A

391931039
ref: 39193A

PIPE-OIL,RH

€ 44.00

49002

490021052
ref: 49002

GUIDE-VALVE

€ 26.00

92001

920011872
ref: 92001

BOLT,6X46

€ 2.50

92002

920021943
ref: 92002

BOLT,10X164

€ 10.50

92004

920041214
ref: 92004

STUD

€ 3.50

92022

920221591
ref: 92022

WASHER,10.5X20X1.6

€ 3.00

92037

920371304
ref: 92037

CLAMP,ID=53,BLACK

€ 7.00

92037A

920371523
ref: 92037A

CLAMP

€ 8.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92066

920661253
ref: 92066

PLUG,PT1/2X12.5

€ 6.50
