FRONT WHEEL

EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

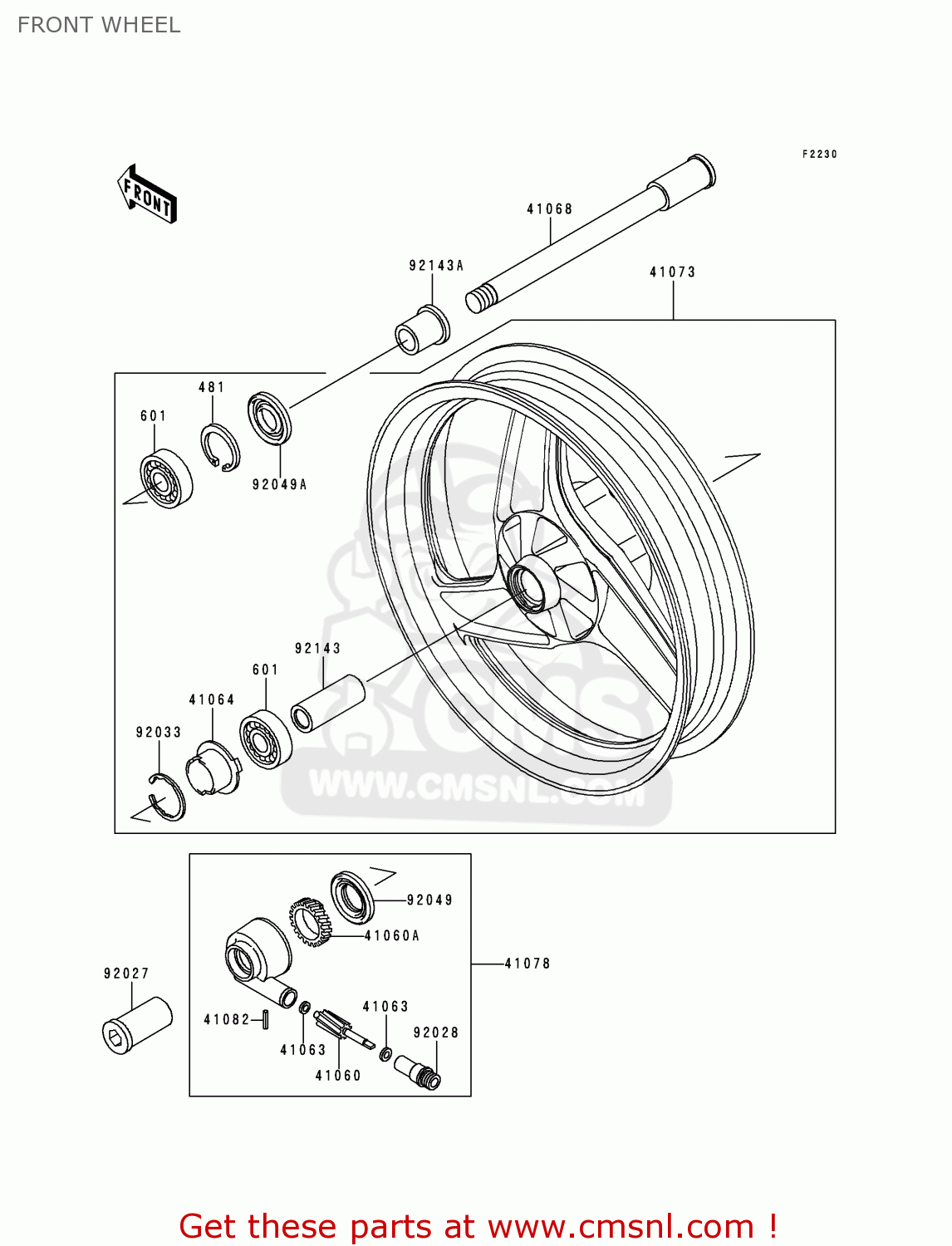

Front wheel diagram EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

FRONT WHEEL EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

FRONT WHEEL EX500D1 NINJA 500 1994 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6202UU
ref: 601

BEARING-BALL

€ 21.00

41060

410601123
ref: 41060

GEAR-METER SCREW,9T

€ 19.50

41060A

410601124
ref: 41060A

GEAR-METER SCREW,23T

€ 23.50

41063

41063001
ref: 41063

WASHER-THRST SPD PINI

€ 3.00

41064

410641006
ref: 41064

RECEIVER,SPEEDOMETER

€ 9.50

41068

410681175
ref: 41068

AXLE,FR

€ 49.50

41073

410731543GE
ref: 41073

WHEEL-ASSY,FR,G.GRAY

€ 769.00

41078

410781068
ref: 41078

CASE-ASSY-METER GEAR

€ 96.50

41082

41082001
ref: 41082

PIN-SPRING

€ 2.50

92027

920271726
ref: 92027

COLLAR,FR AXLE,L=36.5

€ 17.50

92028

920281066
ref: 92028

BUSHING,SPEEDOMET CAB

€ 7.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92049A

920491176
ref: 92049A

SEAL-OIL,MH20354.5

€ 10.00

92143

921431185
ref: 92143

COLLAR,15.1X20X70

€ 12.50

92143A

921431187
ref: 92143A

COLLAR,FR AXLE,L=24

€ 13.00
