TIRE

EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

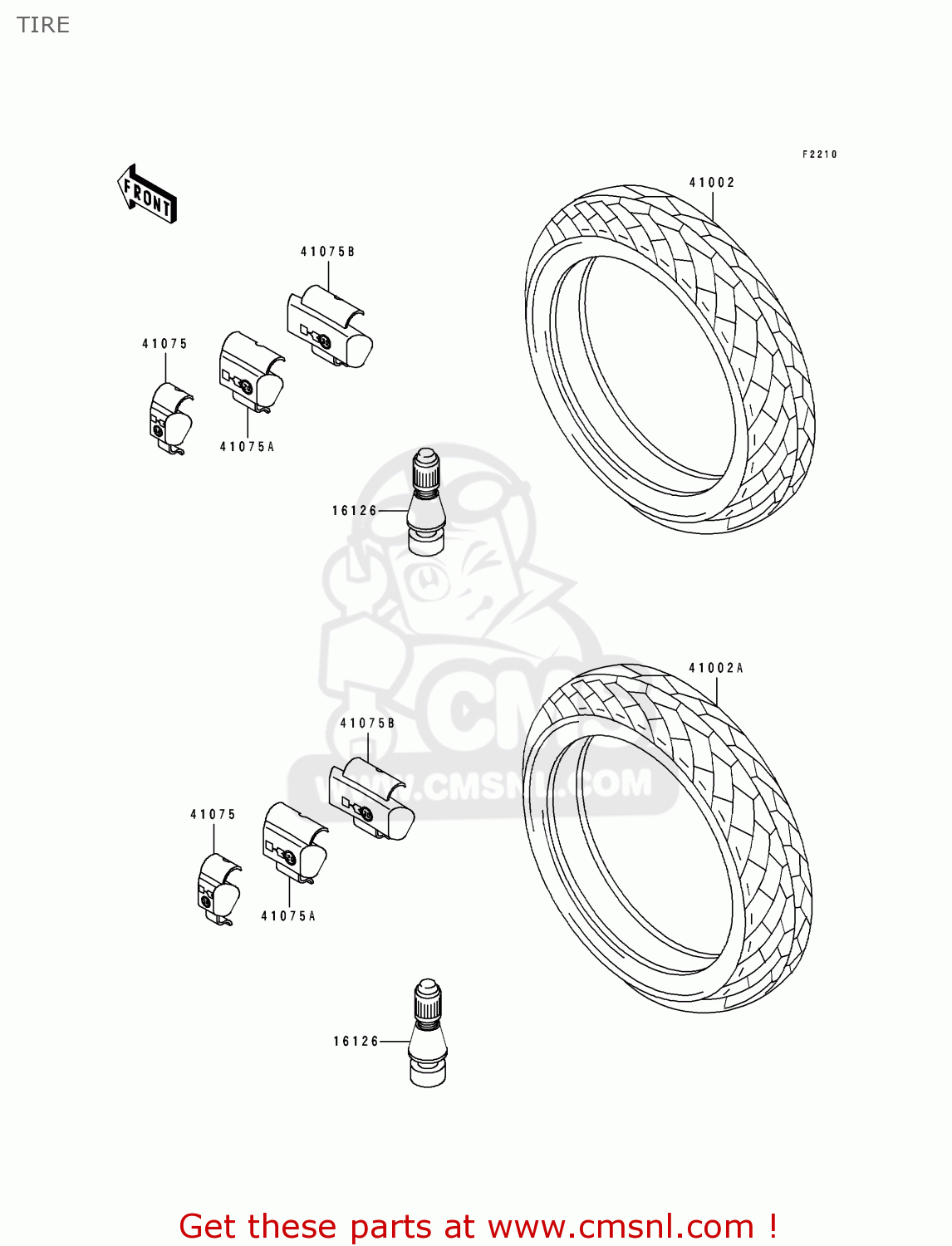

Tire diagram EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

TIRE EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

TIRE EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

prices are in EUR

ref

part #

description

quantity

16126

161261140
ref: 16126

VALVE,TIRE

€ 20.50

41002

410021618
ref: 41002

TIRE,FR,100/90-16 54H

€ 164.00

41002A

410021619
ref: 41002A

TIRE,RR,120/90-16 63H

€ 206.50

41075

410751014
ref: 41075

BALANCER-WHEEL,10G,SI

€ 7.50

41075A

410751015
ref: 41075A

BALANCER-WHEEL,20G,SI

€ 7.50

41075B

410751016
ref: 41075B

BALANCER-WHEEL,30G,SI

€ 7.50
