FRAME FITTING

EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

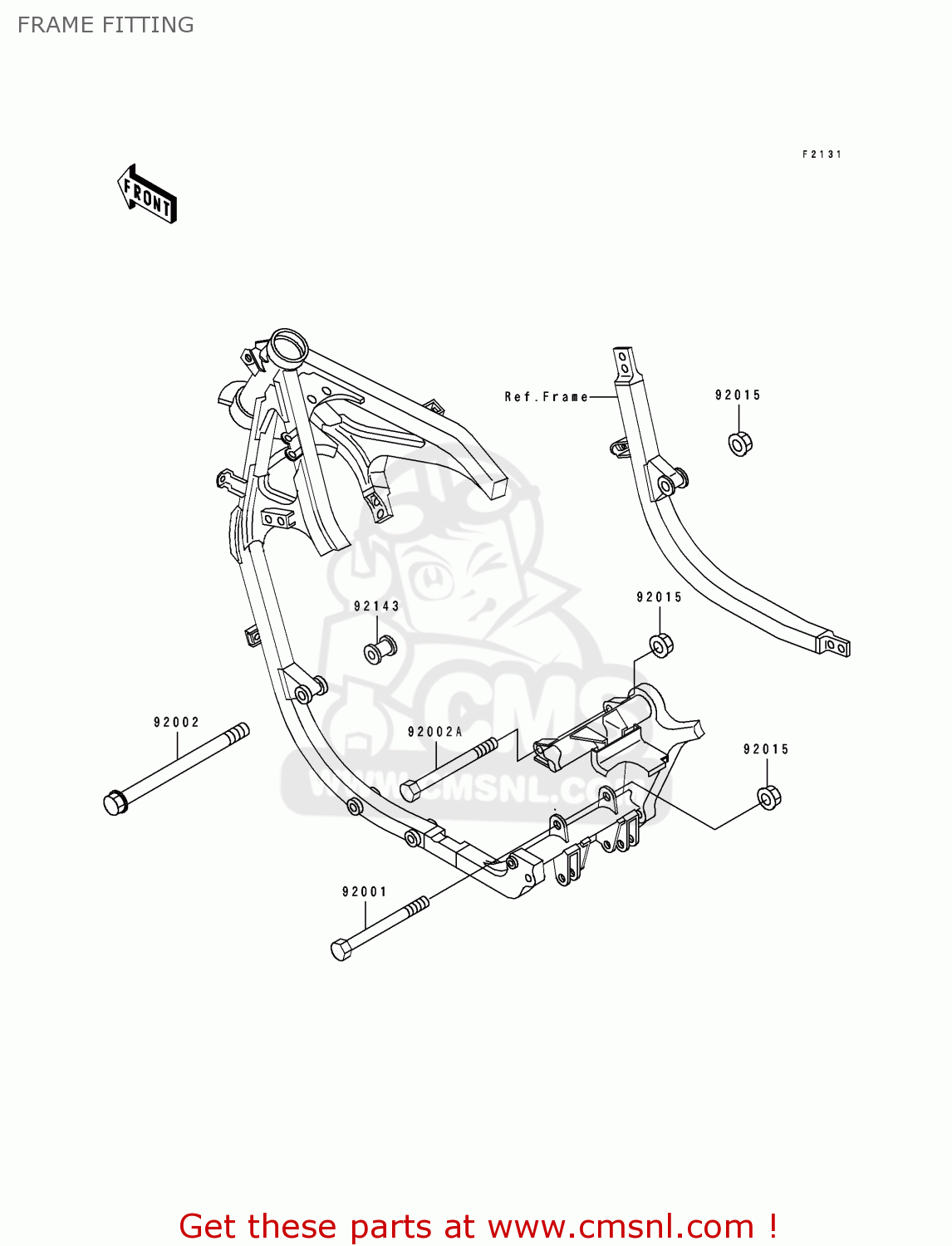

Frame fitting diagram EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

FRAME FITTING EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

FRAME FITTING EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

prices are in EUR

ref

part #

description

quantity

92001

920011109
ref: 92001

BOLT,10X179

€ 15.00

92002

920021891
ref: 92002

BOLT,FLANGED,10X295

€ 11.00

92002A

920021920
ref: 92002A

BOLT,10X165

€ 7.50

92015

920151428
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92143

921431073
ref: 92143

COLLAR,L=34

€ 8.50
