CARBURETOR

EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

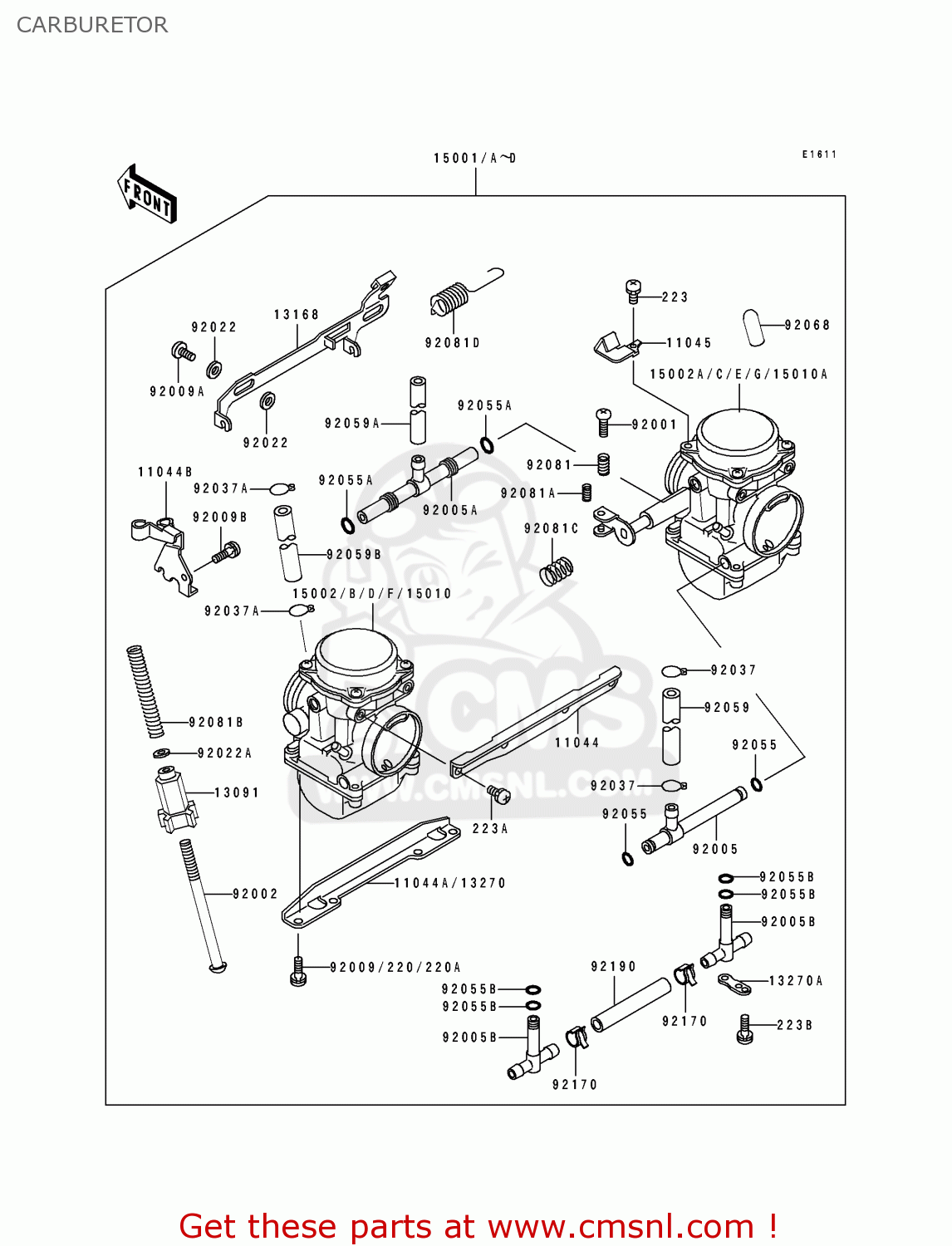

Carburetor diagram EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

CARBURETOR EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP
CARBURETOR EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP
CARBURETOR EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
11044
110441313
ref: 11044
BRACKET,CARBURETOR ST
€ 43.50
11044A
110441314
ref: 11044A
BRACKET,CARBURETOR ST
110441314
€ 45.50
11044B
110441546
ref: 11044B
BRACKET,THROTTLE CABL
110441546
€ 41.00
11045
110451824
ref: 11045
BRACKET,STARTER LEVER
€ 44.50
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
130911382
€ 11.00
13168
131681360
ref: 13168
LEVER
€ 55.50
15001
150011335
ref: 15001
EUFRGRITNRSP
CARBURETOR-ASSY
€ 1,181.50
15001B
150011523
ref: 15001B
FG
CARBURETOR-ASSY
€ 1,125.50
15002B
150021494
ref: 15002B
EUFRGRITNRSP
CARBURETOR,LH
€ 1,011.50
15002C
150021495
ref: 15002C
EUFRGRITNRSP
CARBURETOR,RH
€ 950.00
15002F
150021775
ref: 15002F
FG
CARBURETOR,LH
€ 492.00
15002G
150021776
ref: 15002G
FG
CARBURETOR,RH
€ 492.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92002
920021552
ref: 92002
BOLT,THROTTLE STOP SC
920021552
€ 10.00
220A
220D0514
ref: 220A
SCREW-PAN-CROS
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92005
920051133
ref: 92005
FITTING
920051133
€ 37.50
92005A
920051134
ref: 92005A
FITTING
920051134
€ 43.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091365
ref: 92009B
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
920371477
€ 3.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591465
ref: 92059A
TUBE,6.5X9.5X500
920591465
€ 20.50
92059B
920591634
ref: 92059B
TUBE,5X9X140
920591634
€ 12.00
92068
92068006
ref: 92068
RUBBER PLUG
92068006
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811875
ref: 92081B
SPRING,THROTTLE STOP
920811875
€ 5.50
92081C
920811876
ref: 92081C
SPRING
€ 6.00
92081D
920811893
ref: 92081D
SPRING,STARTER LEVER
€ 12.50
