STAND

EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

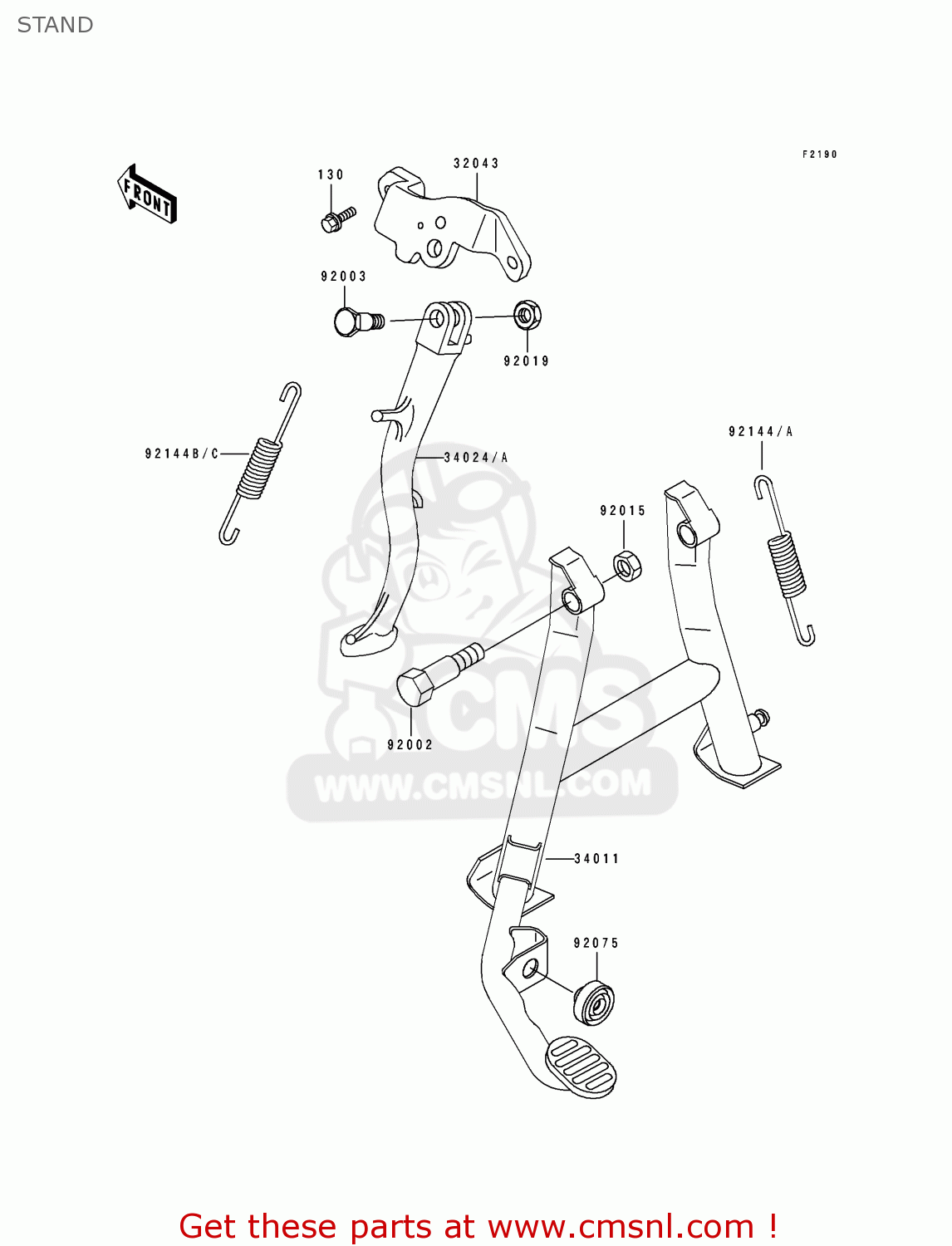

Stand diagram EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

prices are in EUR

ref

part #

description

quantity

130

130G0816
ref: 130

BOLT-FLANGED,8X16

€ 0.50

32043

320431302
ref: 32043

BRACKET-STAND,SIDE

€ 34.50

34011

340111138
ref: 34011

STAND-CENTER

€ 137.50

34024

340241223
ref: 34024
EUFRGRITNRSP

STAND-SIDE

€ 56.50

34024A

340241231
ref: 34024A
FG

STAND-SIDE

€ 57.00

92002

920021954
ref: 92002

BOLT,CENTER STAND

€ 7.00

92003

92003157
ref: 92003

BOLT,SIDE STAND FIT

€ 6.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92019

92019021
ref: 92019

NUT,LOCK,10M/M

€ 2.00

92075

920751045
ref: 92075

DAMPER,STAND STOPPER

€ 5.00

92144

921441100
ref: 92144
EUFRGRITNRSP

SPRING,CENTER STAND

€ 8.00

92144A

921441101
ref: 92144A
FG

SPRING,CENTER STAND

€ 16.50

92144B

921441104
ref: 92144B
FG

SPRING,SIDE STAND

€ 11.50

92144C

921441105
ref: 92144C
EUFRGRITNRSP

SPRING,SIDE STAND

€ 6.00
