FENDER

EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

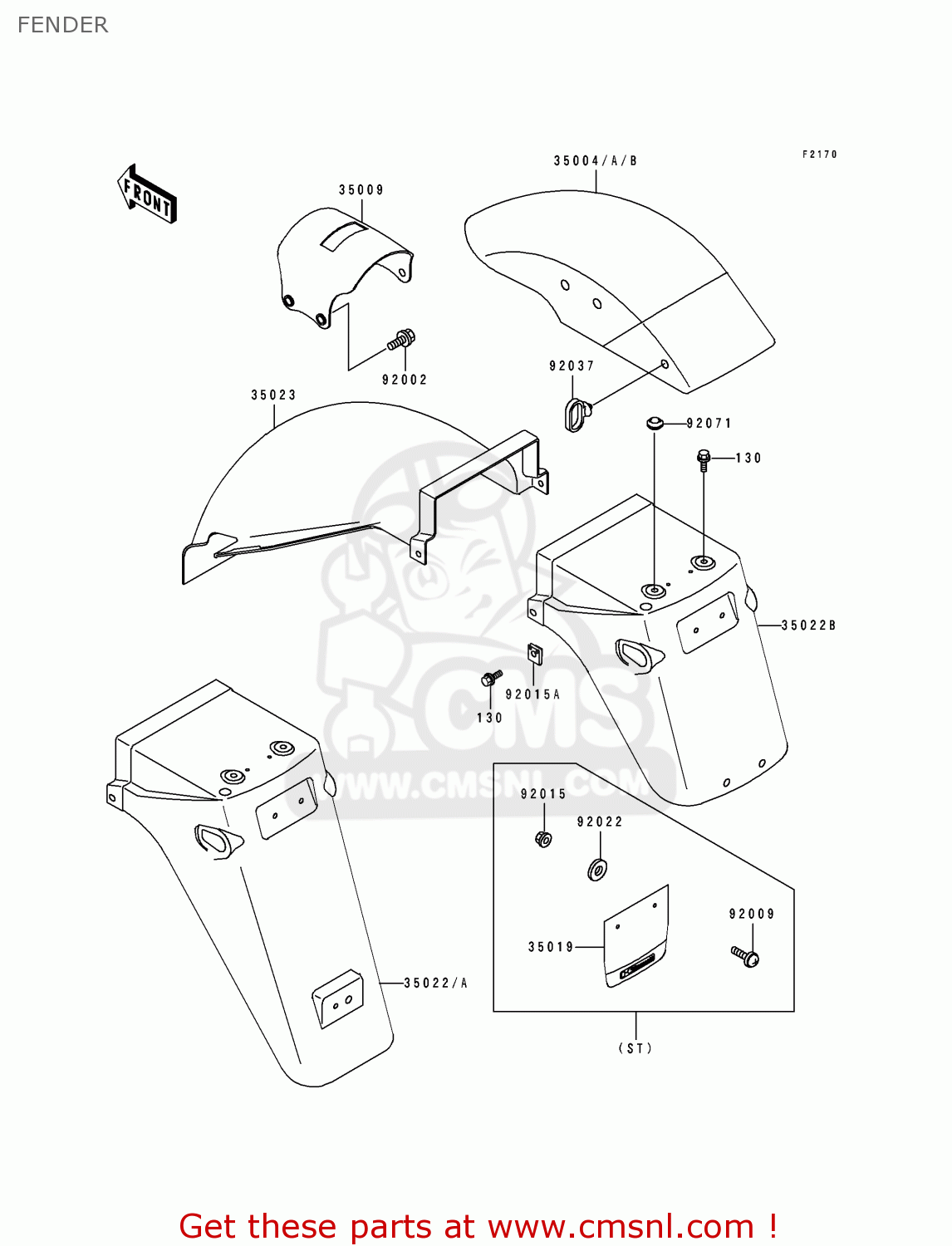

Fender diagram EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

prices are in EUR

ref

part #

description

quantity

130

130B0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

35004

350041188GR
ref: 35004
EUITNR

FENDER-FRONT,RED/BLAC

€ 117.00

35004A

350041188M3
ref: 35004A
EUFGFRGRITSP

FENDER-FRONT,BLACK/BL

€ 167.00

35004B

350041188P3
ref: 35004B

FENDER-FRONT,F.BLACK/

€ 117.00

35009

350091070
ref: 35009

BRACE,FRONT FENDER

€ 37.00

35022

3502212286Z
ref: 35022
FGGRNR

FENDER-COMP-REAR,RR,B

€ 91.00

35022B

3502212366Z
ref: 35022B
EUFRITSP

FENDER-COMP-REAR,RR,B

€ 88.50

35023

350231183
ref: 35023

FENDER-REAR,FR

€ 50.50

92002

920021200
ref: 92002

BOLT,FLANGED,8X16

€ 3.00

92015A

920151678
ref: 92015A

NUT

€ 3.50

92037

920371459
ref: 92037

CLAMP,CABLE

€ 14.50

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

FENDER

all assemblies
