DECAL

EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

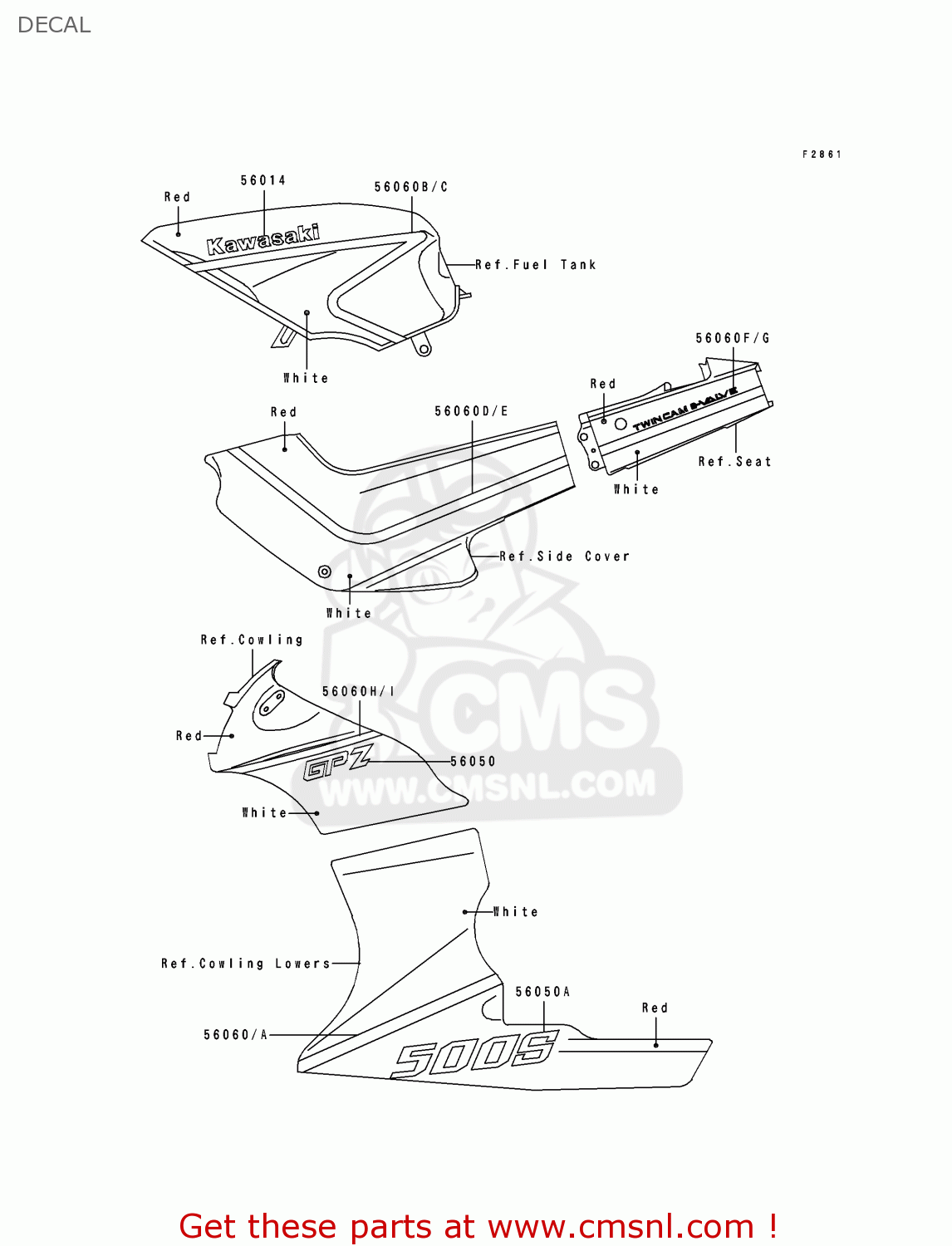

Decal diagram EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

DECAL EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP
DECAL EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP
DECAL EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP
prices are in EUR
ref
part #
description
quantity
56014
560141271
ref: 56014
EUFGITNR
EMBLEM,FUEL TANK,KAWA
560141271
€ 13.00
56050
560501766
ref: 56050
EUFGITNR
MARK,GPZ
560501766
€ 20.00
56050A
560501767
ref: 56050A
EUFGITNR
MARK,500S
€ 16.50
56060
560601087
ref: 56060
EUFGITNR
PATTERN,LWR COWLING,L
560601087
€ 24.50
56060A
560601088
ref: 56060A
EUFGITNR
PATTERN,LWR COWLING,R
560601088
€ 17.00
56060B
560601089
ref: 56060B
EUFGITNR
PATTERN,FUEL TANK,LH
€ 34.50
56060C
560601090
ref: 56060C
EUFGITNR
PATTERN,FUEL TANK,RH
560601090
€ 30.50
56060D
560601091
ref: 56060D
EUFGITNR
PATTERN,SIDE COVER,LH
€ 39.00
56060E
560601092
ref: 56060E
EUFGITNR
PATTERN,SIDE COVER,RH
€ 41.50
56060F
560601093
ref: 56060F
EUFGITNR
PATTERN,SEAT COVER,LH
560601093
€ 16.50
56060G
560601094
ref: 56060G
EUFGITNR
PATTERN,SEAT COVER,RH
€ 16.50
56060H
560601095
ref: 56060H
EUFGITNR
PATTERN,UPP COWLING,L
560601095
€ 28.50
56060I
560601096
ref: 56060I
EUFGITNR
PATTERN,UPP COWLING,R
560601096
€ 27.00
