STEP

EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

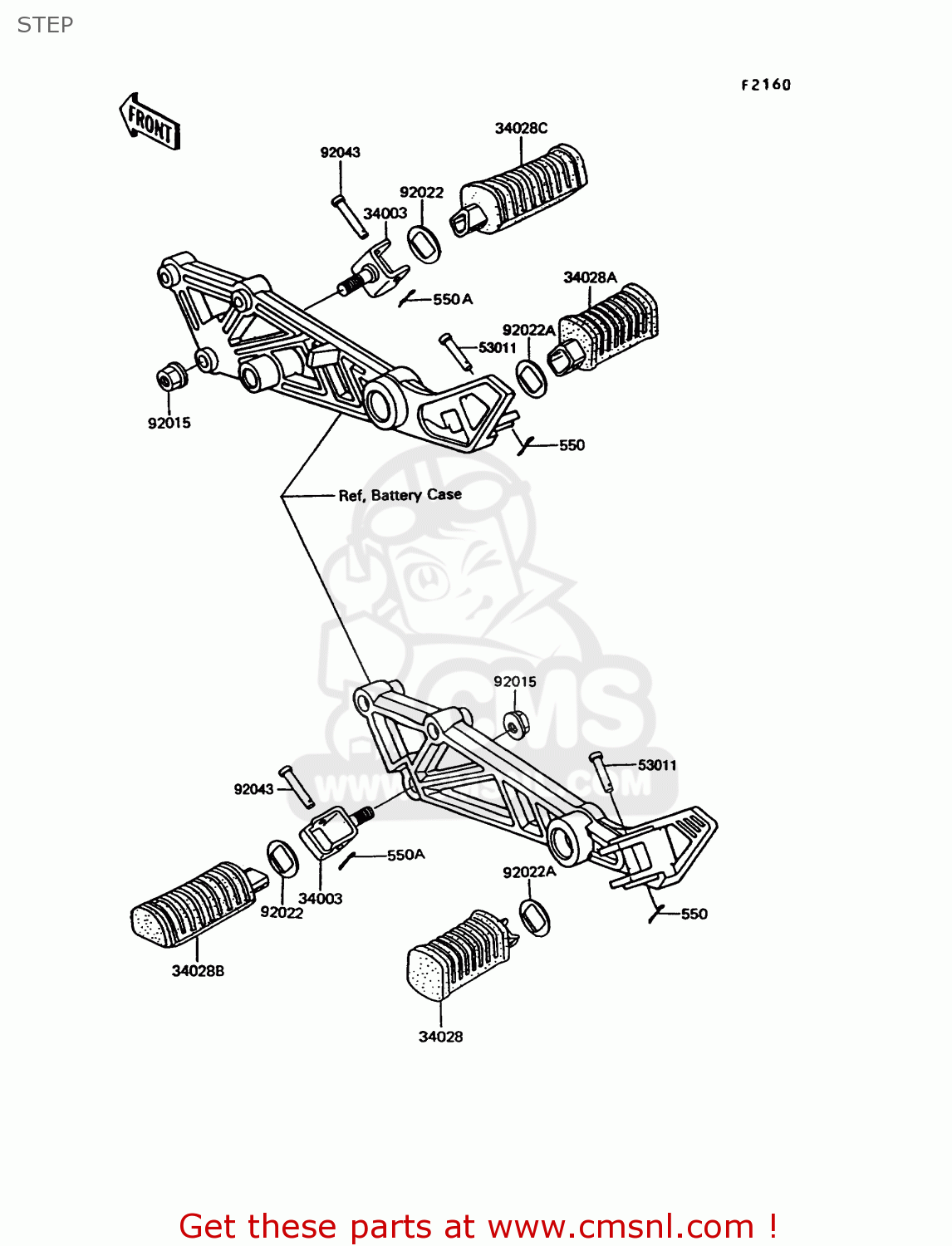

Step diagram EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

550

550D2012
ref: 550

PIN,COTTER,2.0X12

€ 0.50

550A

550D2515
ref: 550A

PIN COTTER,295X15

€ 0.50

34003

340031153
ref: 34003

HOLDER-STEP,FR

€ 34.00

34028

340281128
ref: 34028

STEP,LH

€ 26.50

34028A

340281129
ref: 34028A

STEP,RH

€ 26.50

34028B

340281136
ref: 34028B

STEP,FR,LH

€ 26.00

34028C

340281137
ref: 34028C

STEP,FR,RH

€ 27.00

53011

53011006
ref: 53011

PIN,DUAL SEAT,PIVOT

€ 3.00

92015

920151368
ref: 92015

NUT,12MM

€ 4.50

92022

920221314
ref: 92022

WASHER,STEP FITTING

€ 3.00

92022A

920221514
ref: 92022A

WASHER,STEP FITTING

€ 3.50

92043

92043115
ref: 92043

PIN,FOOTREST BAR FIT

€ 6.50
