LABEL

EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

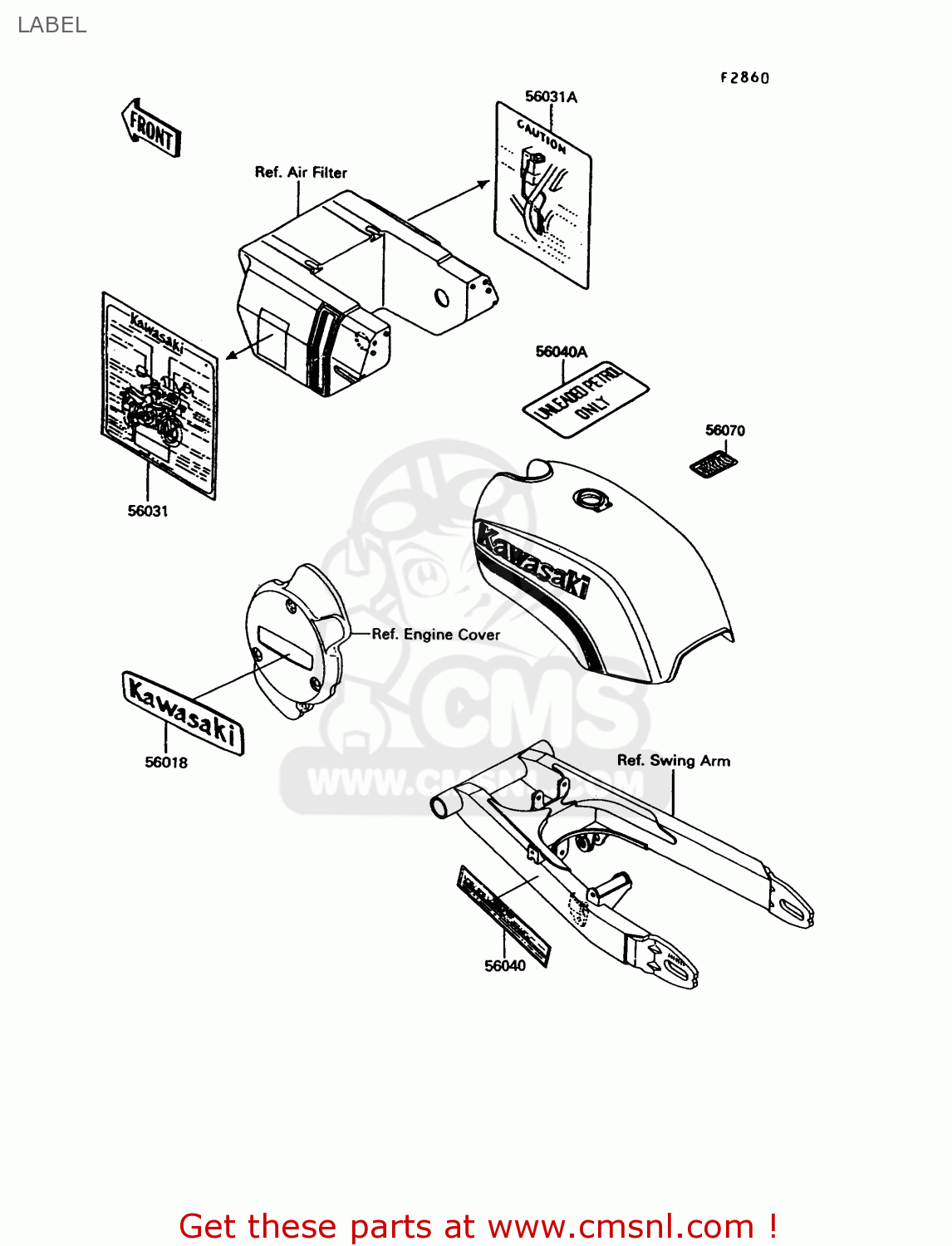

Label diagram EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

LABEL EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

LABEL EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

56018

560181292
ref: 56018

MARK,PULSING COIL CAP

€ 19.50

56031

560311256
ref: 56031

LABEL-MANUAL,DAILY SA

€ 6.00

56031A

560311257
ref: 56031A

LABEL-MANUAL,BATTERY

€ 2.50

56040

560401031
ref: 56040

LABEL-WARNING,BELT

€ 2.50

56040A

560401157
ref: 56040A

LABEL-WARNING,GASOLIN

€ 4.00

56070

560701068
ref: 56070

LABEL-WARNING,ICING

€ 3.50
