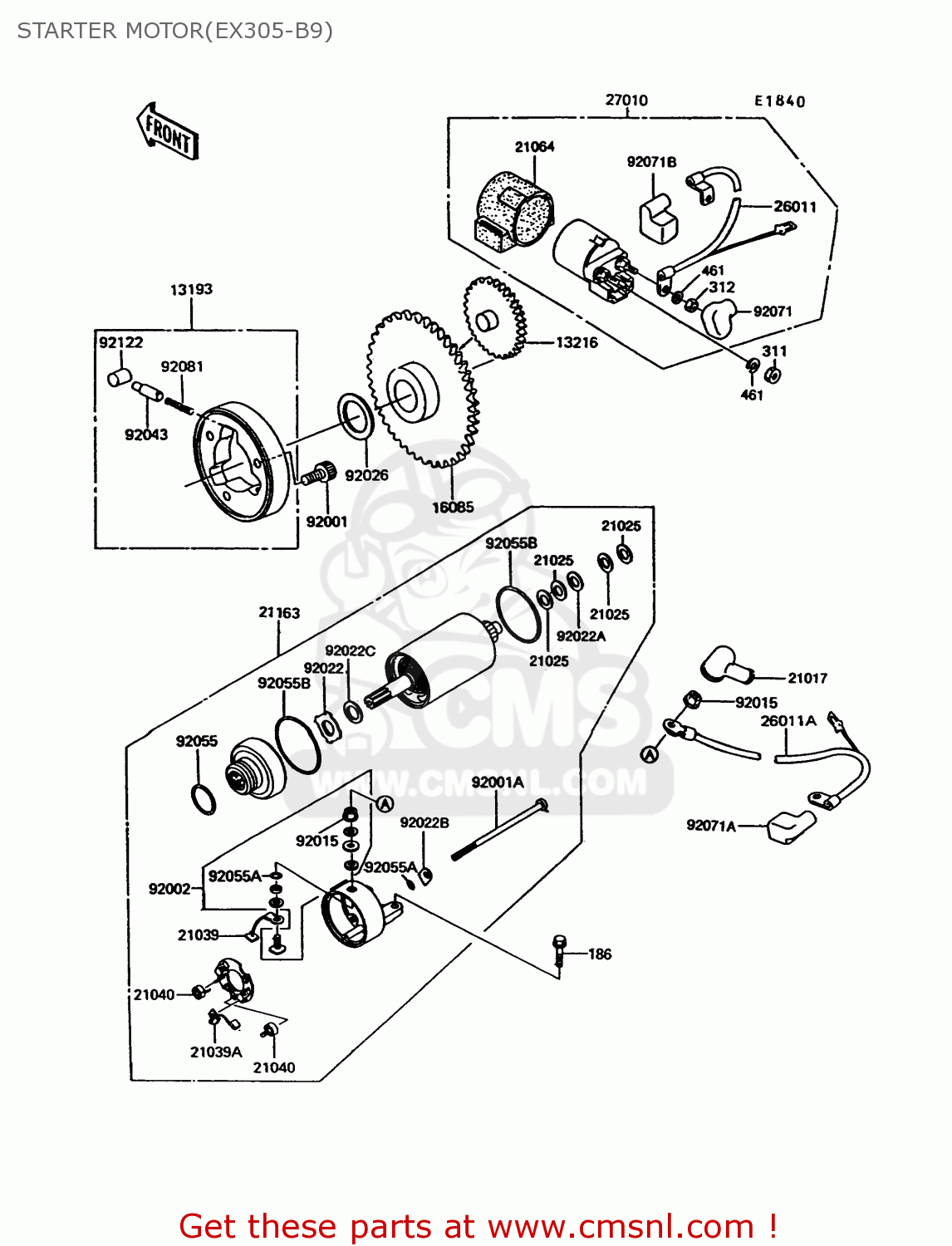

STARTER MOTOR(EX305-B9)

ref

part #

description

quantity

186

186B0620
ref: 186

BOLT-UPSET-WP

€ 1.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

312

312B0600
ref: 312

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

13193

131931002
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 96.00

13216

132161009
ref: 13216

GEAR-ASSY,STARTER,IDL

€ 79.00

16085

160851032
ref: 16085

GEAR-COMP,ONEWAY

€ 93.00

21017

21017017
ref: 21017

GROMMET-CORD

€ 6.50

21025

21025011
ref: 21025

WASHER, THRUST, 0.2T

€ 4.00

21039

210391001
ref: 21039

BRUSH,CARBON(+)

€ 21.50

21039A

210391002
ref: 21039A

BRUSH,CARBON(-)

€ 15.50

21040

210401001
ref: 21040

SPRING-BRUSH

€ 4.50

21064

21064002
ref: 21064

DAMPER,MAGNETIC SWITC

€ 13.50

21163

211631204
ref: 21163

STARTER-ELECTRIC

€ 335.50

26011

260111192
ref: 26011

WIRE-LEAD,MAGNETIC SW

€ 19.50

26011A

260111571
ref: 26011A

WIRE-LEAD

€ 21.00

27010

270101236
ref: 27010

SWITCH,MAGNETIC

€ 83.00

92001

920011424
ref: 92001

BOLT,SOCKET,8X10

€ 3.00

92001A

920011954
ref: 92001A

BOLT,SCREW,5X107

€ 3.00

92002

920021819
ref: 92002

BOLT,TERMINAL

€ 17.50

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221130
ref: 92022

WASHER,THRUST SUPPORT

€ 4.00

92022A

920221132
ref: 92022A

WASHER,9.1X18X0.8

€ 4.00

92022B

920221458
ref: 92022B

WASHER,LOCK,T=2.0

€ 3.50

92022C

920221714
ref: 92022C

WASHER,22X12.2X0.5

€ 2.50

92026

92026092
ref: 92026

SPACER,22X35.5X1.0

€ 8.50

92043

92043132
ref: 92043

PIN

€ 4.00

92055

920551303
ref: 92055

RING-O

€ 7.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551418
ref: 92055B

RING-O

€ 7.50

92071

920711056
ref: 92071

GROMMET,MAGNETIC SWIT

€ 5.50

92071A

920711101
ref: 92071A

GROMMET,STARTER TERMI

€ 7.00

92071B

920711102
ref: 92071B

GROMMET,TERMINAL COVE

€ 6.50

92081

92081159
ref: 92081

SPRING, COIL

€ 2.50

92122

92122006
ref: 92122

ROLLER

€ 4.00
