CLUTCH

EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

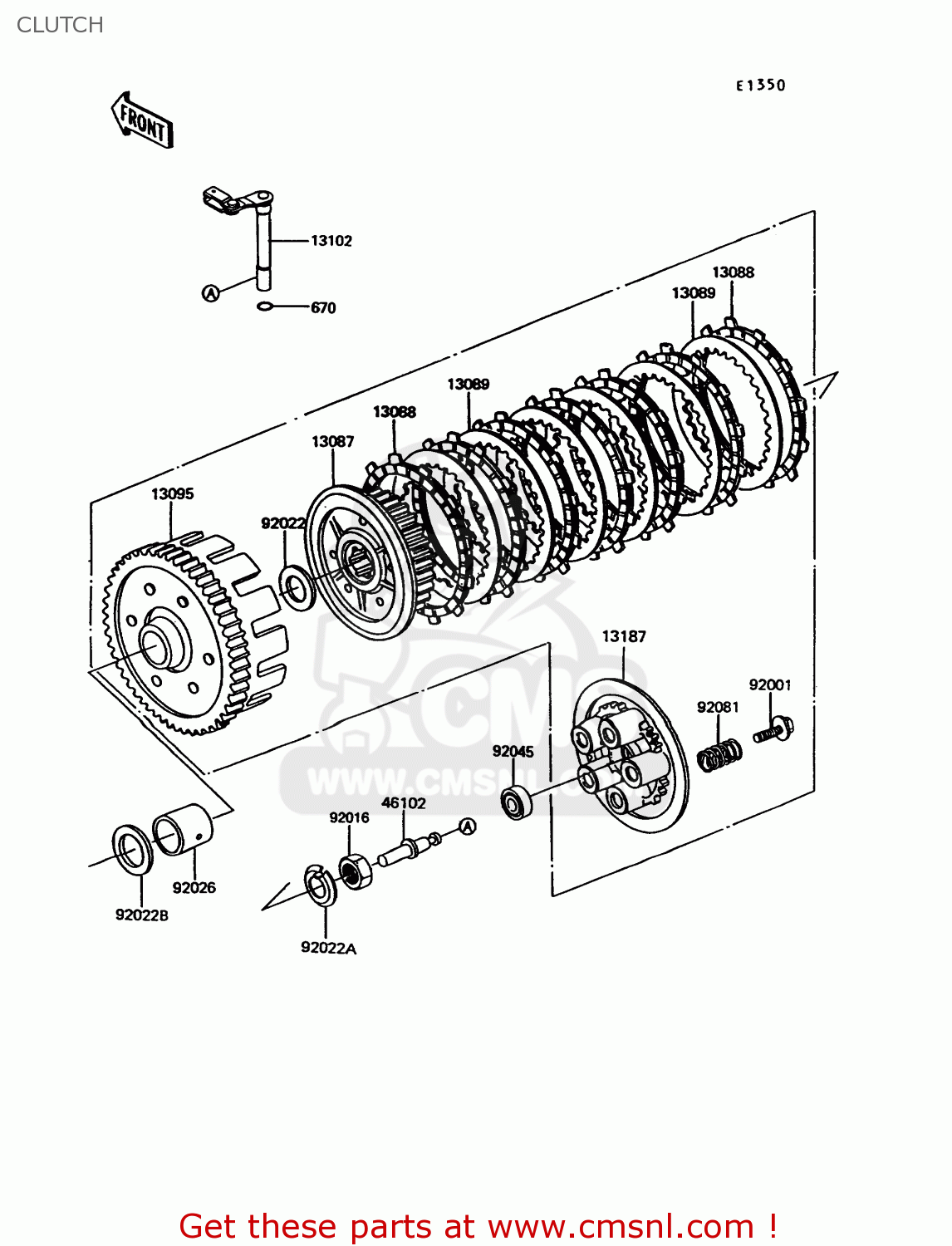

Clutch diagram EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

670

670B1509
ref: 670

O RING,9MM

€ 1.00

13087

130871005
ref: 13087

HUB-CLUTCH

€ 90.00

13088

130881009
ref: 13088

PLATE-FRICTION (NAS)

€ 10.50

13089

130891005
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 7.50

13095

130951020
ref: 13095

HOUSING-COMP-CLUTCH

€ 316.00

13102

131021027
ref: 13102

RELEASE-COMP-CLUTCH,B

€ 33.00

13187

131871018
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 47.50

46102

461021030
ref: 46102

ROD,CLUTCH

€ 22.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92016

92016028
ref: 92016

NUT

€ 9.50

92022

920221075
ref: 92022

WASHER,25.5X38X2

€ 9.00

92022A

920221142
ref: 92022A

WASHER,LOCK

€ 2.50

92022B

92022145
ref: 92022B

WASHER-CLUTCH THRUST

€ 4.50

92026

920261052
ref: 92026

BUSHING,CLUTCH

€ 10.50

92045

920451235
ref: 92045

BEARING-BALL,6001C3ML

€ 15.50

92081

920811151
ref: 92081

SPRING,CLUTCH

€ 5.00
