CRANKCASE BOLT PATTERN

EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

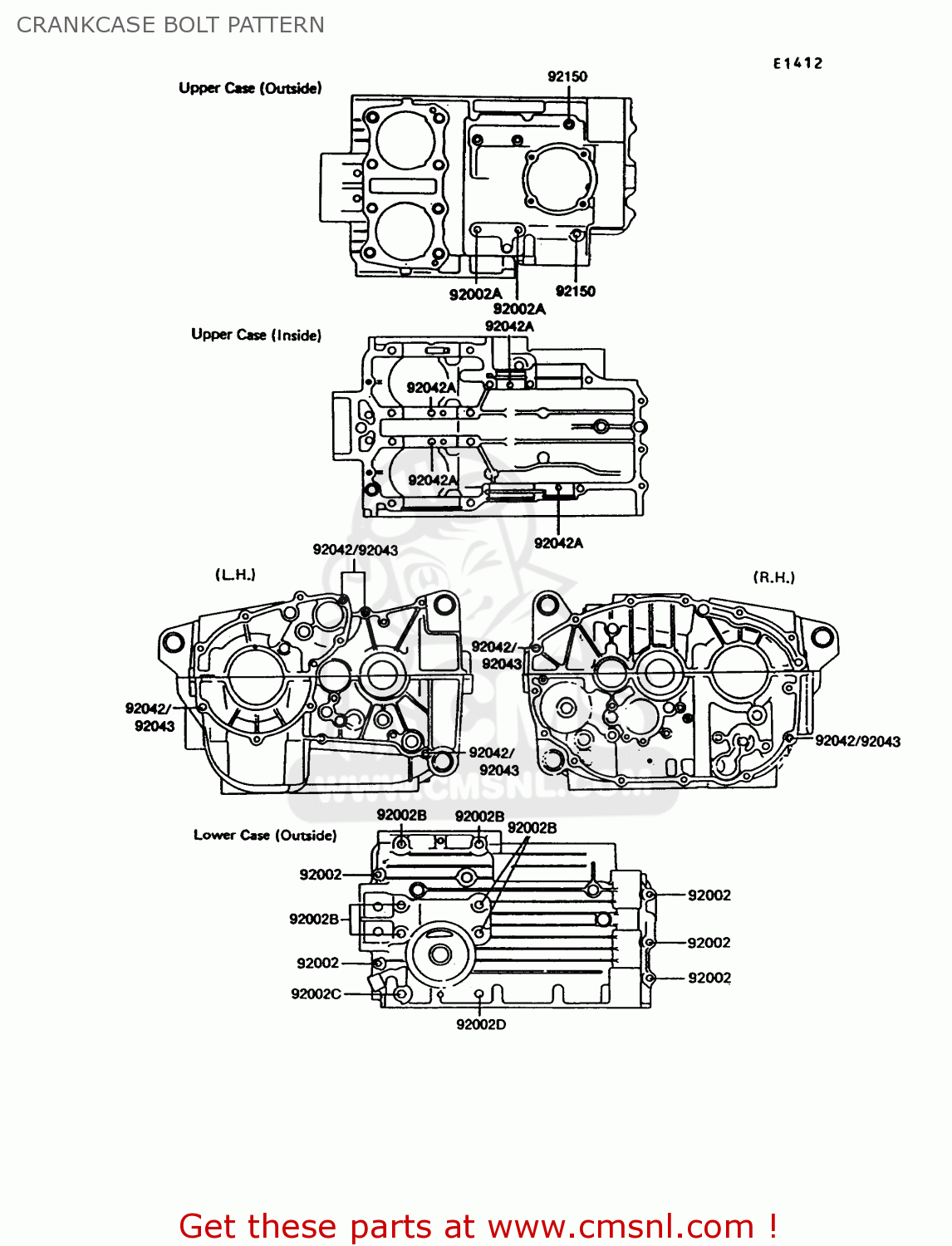

Crankcase bolt pattern diagram EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE

CRANKCASE BOLT PATTERN EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE
CRANKCASE BOLT PATTERN EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE
CRANKCASE BOLT PATTERN EX305B9 GPZ305 1993 UNITED KINGDOM / BELT DRIVE
prices are in EUR
ref
part #
description
quantity
92002
920021051
ref: 92002
BOLT,6X35
€ 3.00
92002A
920021054
ref: 92002A
BOLT,6X55
920021054
€ 3.00
92002B
920021057
ref: 92002B
BOLT,8X90
920021057
€ 6.50
92002C
920021058
ref: 92002C
BOLT,8X115
€ 6.00
92002D
920021059
ref: 92002D
BOLT,8X140
920021059
€ 6.50
92042A
92042016
ref: 92042A
PIN,DOWEL,6X16
92042016
€ 3.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92150
921501312
ref: 92150
BOLT
921501312
€ 3.50
