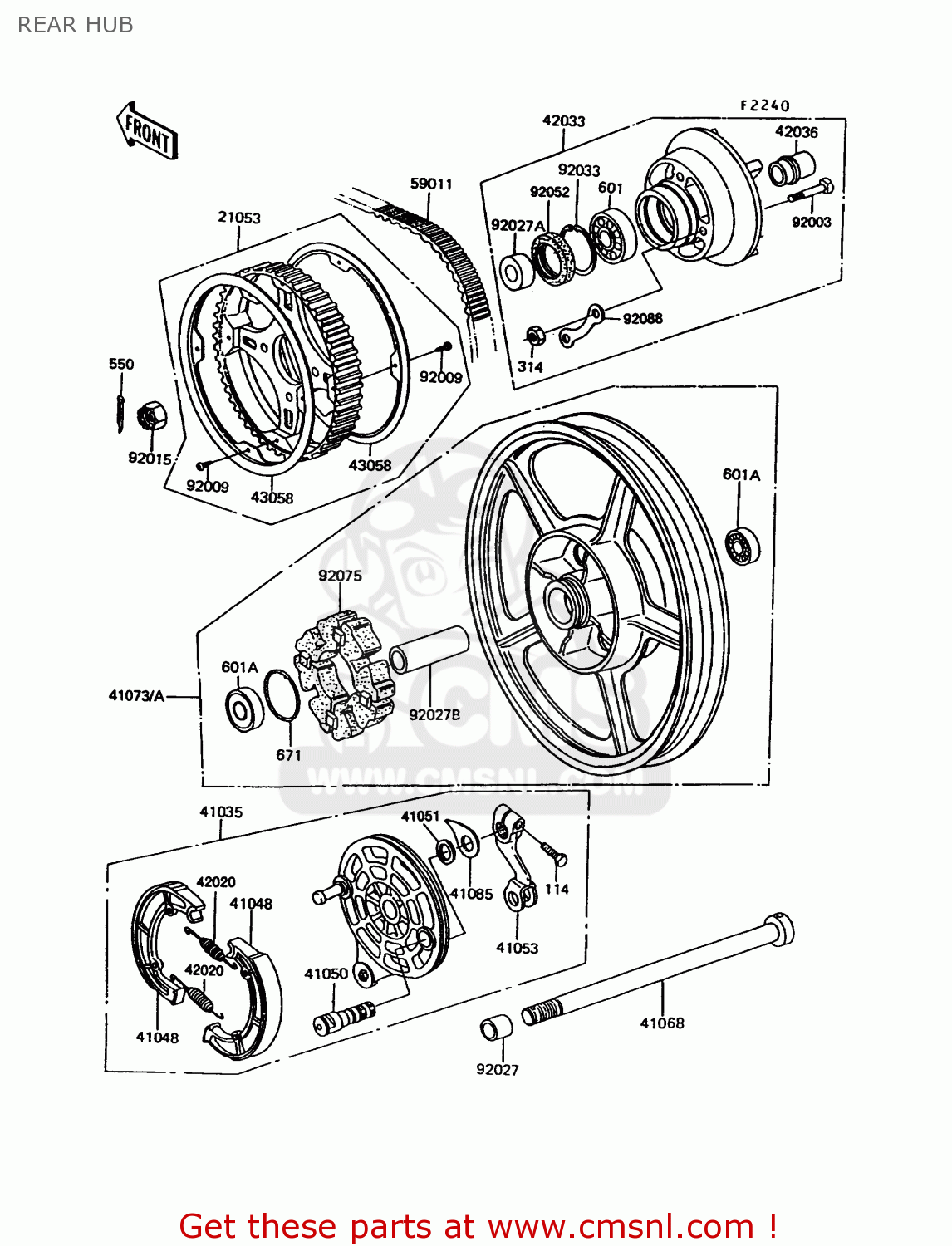

REAR HUB

ref

part #

description

quantity

114

114G0828
ref: 114

BOLT-SMALL,8X28

€ 2.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205G
ref: 601

BEARING BALL

€ 14.00

601A

601B6303ZZ
ref: 601A

BEARING-BALL,#6303ZZC

€ 32.50

671

671B2560
ref: 671

O RING,60MM

€ 1.50

21053

210531010
ref: 21053

SPROCKET-ASSY,RR,50T

€ 245.50

41035

410351287
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 245.50

41048

410481069
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41050

410501001
ref: 41050

CAM-BRAKE

€ 24.00

41051

41051003
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41053

410531031
ref: 41053

LEVER-BRAKE CAM

€ 49.00

41068

410681122
ref: 41068

AXLE,RR

€ 45.00

41073

410731204CW
ref: 41073

WHEEL-ASSY,RR,F.RED

€ 641.50

41073A

410731204JY
ref: 41073A

WHEEL-ASSY,RR,M.GRAY

€ 641.50

41085

41085004
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42020

42020004
ref: 42020

SPRING-BRAKE SHOE

€ 5.50

42033

420331101
ref: 42033

COUPLING-ASSY,REAR HU

€ 161.00

42036

420361002
ref: 42036

SLEEVE,COUPLING

€ 27.50

43058

430581024
ref: 43058

RING,REAR HUB SPROCKE

€ 36.50

59011

590111006
ref: 59011

BELT,125T,125U-14M35

€ 293.50

92003

92003156
ref: 92003

BOLT,RR SPROCKET FIT

€ 6.50

92009

920091167
ref: 92009

SCREW,5X10

€ 4.50

92015

92015055
ref: 92015

NUT,16MM

€ 8.00

92027

920271257
ref: 92027

COLLAR,17.2X30X24.5

€ 21.50

92027A

920271321
ref: 92027A

COLLAR,REAR AXLE,LH,L

€ 17.00

92027B

920271506
ref: 92027B

COLLAR,REAR WHEEL,L=6

€ 9.00

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92075

920751008
ref: 92075

DAMPER,REAR HUB SHOCK

€ 53.50

92088

92088005
ref: 92088

WASHER,SPROCKET LOCK

€ 4.00
