SUSPENSION/SHOCK ABSORBER
EX250F6 GPX250R 1992 EUROPE

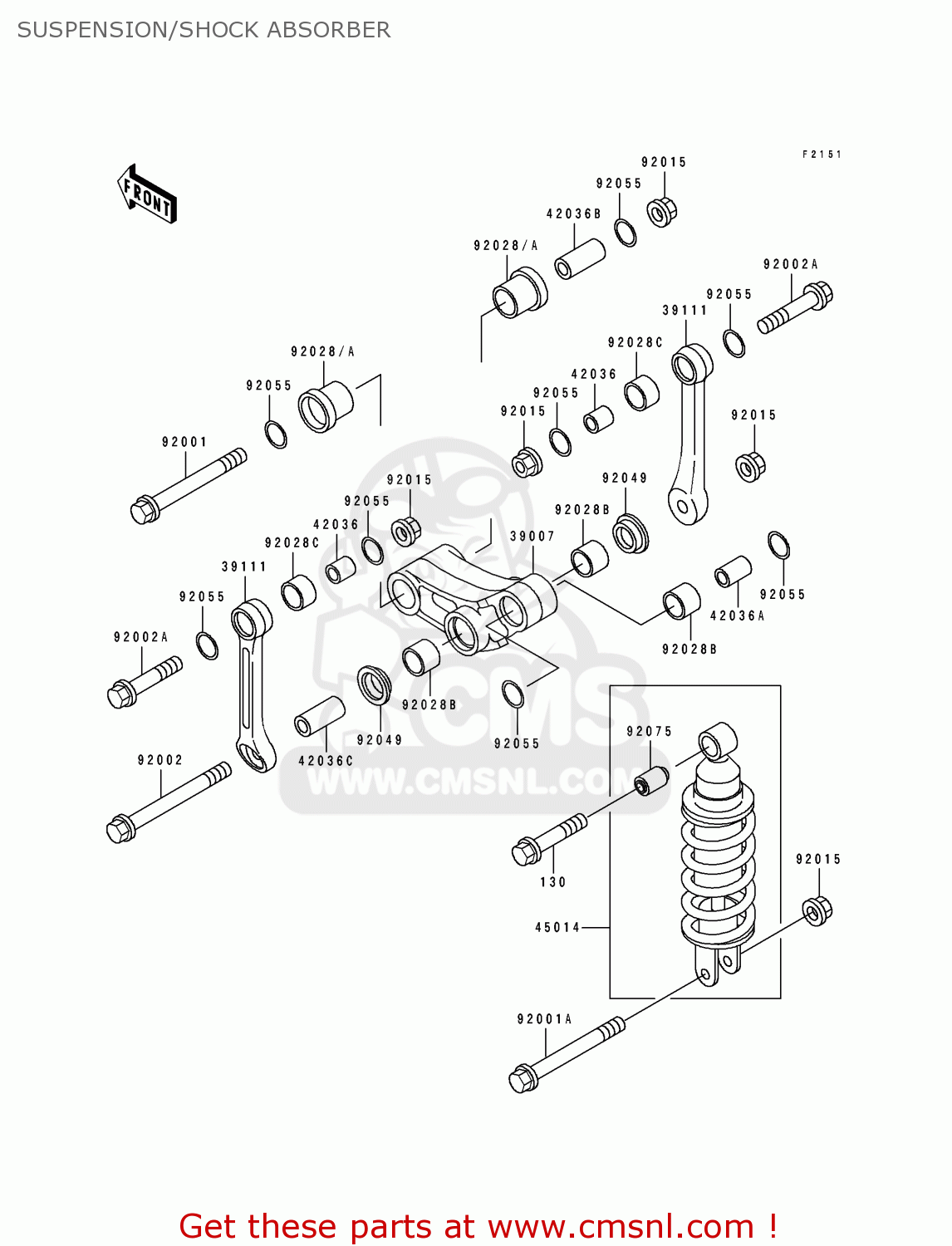

Suspension/shock absorber diagram EX250F6 GPX250R 1992 EUROPE
SUSPENSION/SHOCK ABSORBER EX250F6 GPX250R 1992 EUROPE
×
prices are in EUR
ref
part #
description
quantity
130
130G1255
ref: 130
BOLT-FLANGED,12X55
€ 5.00
39007
390071093
ref: 39007
ARM-SUSP,UNI TRAK
€ 140.00
39111
391111021
ref: 39111
ROD-TIE,UNI TRAK
€ 70.00
42036
420361076
ref: 42036
SLEEVE,12.1X20X22
€ 12.00
42036A
420361077
ref: 42036A
SLEEVE,ARM,RR
€ 11.50
42036B
420361078
ref: 42036B
SLEEVE,ARM,FR
€ 17.00
42036C
420361079
ref: 42036C
SLEEVE,12.1X20X70
€ 19.00
45014
450141406
ref: 45014
SHOCKABSORBER
€ 550.00
92001
920011937
ref: 92001
BOLT,12X90
€ 10.50
92001A
920011938
ref: 92001A
BOLT,12X55
€ 8.50
92002
920021064
ref: 92002
BOLT,12X110
€ 12.50
92002A
920021065
ref: 92002A
BOLT,12X45
€ 7.50
92015
920151375
ref: 92015
NUT,12MM
€ 4.50
92028
920281200
ref: 92028
BUSHING,FLANGED
€ 6.50
92028B
920281598
ref: 92028B
BUSHING
€ 5.00
92028C
920281599
ref: 92028C
BUSHING
€ 18.00
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92055
920551215
ref: 92055
RING-O,19.8X2.2
€ 2.50
92075
920751497
ref: 92075
DAMPER,SHOCKABSORBER
€ 21.50
