CARBURETOR PARTS
EX250F6 GPX250R 1992 EUROPE

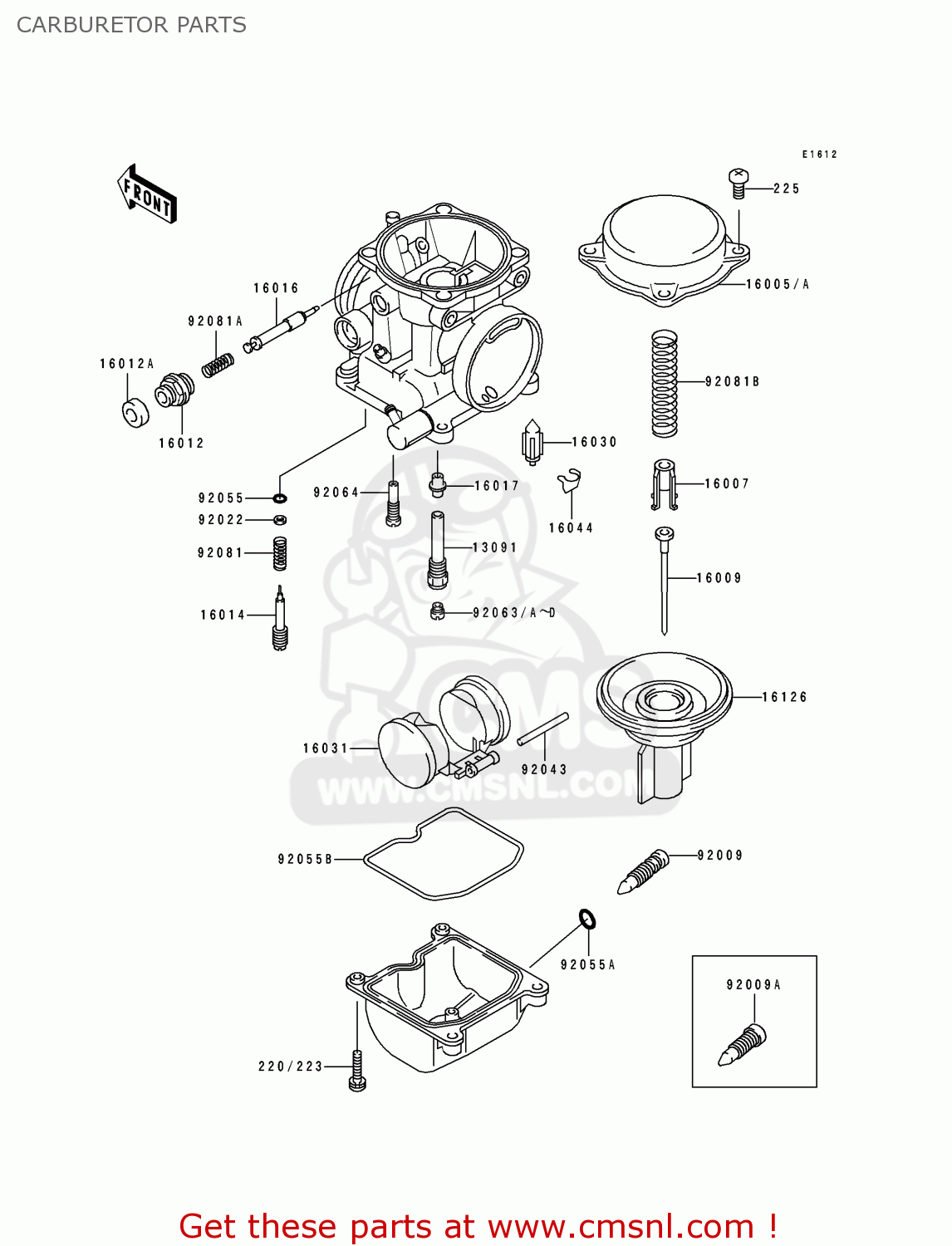

Carburetor parts diagram EX250F6 GPX250R 1992 EUROPE
CARBURETOR PARTS EX250F6 GPX250R 1992 EUROPE
×
prices are in EUR
ref
part #
description
quantity
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
€ 19.50
16005A
160051061
ref: 16005A
TOP-CHAMBER,MIXING
€ 39.00
16007
160071120
ref: 16007
SEAT-SPRING
€ 16.50
16009
160091461
ref: 16009
NEEDLE-JET,N16I
€ 26.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171327
ref: 16017
JET-NEEDLE
€ 35.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261198
ref: 16126
VALVE,VACUUM
€ 176.00
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631008
ref: 92063
JET-MAIN,#100
€ 9.00
92063A
920631009
ref: 92063A
JET-MAIN,#105
€ 10.00
92063B
920631114
ref: 92063B
JET-MAIN,#110
€ 9.50
92063C
920631115
ref: 92063C
JET-MAIN,#102
€ 10.00
92063D
920631116
ref: 92063D
JET-MAIN,#108
€ 9.50
92064
920641050
ref: 92064
JET-PILOT,#38
€ 12.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
€ 6.00
92081B
920811925
ref: 92081B
SPRING,VACUUM VALVE
€ 16.00
