METER(S)
EX250F6 GPX250R 1992 EUROPE

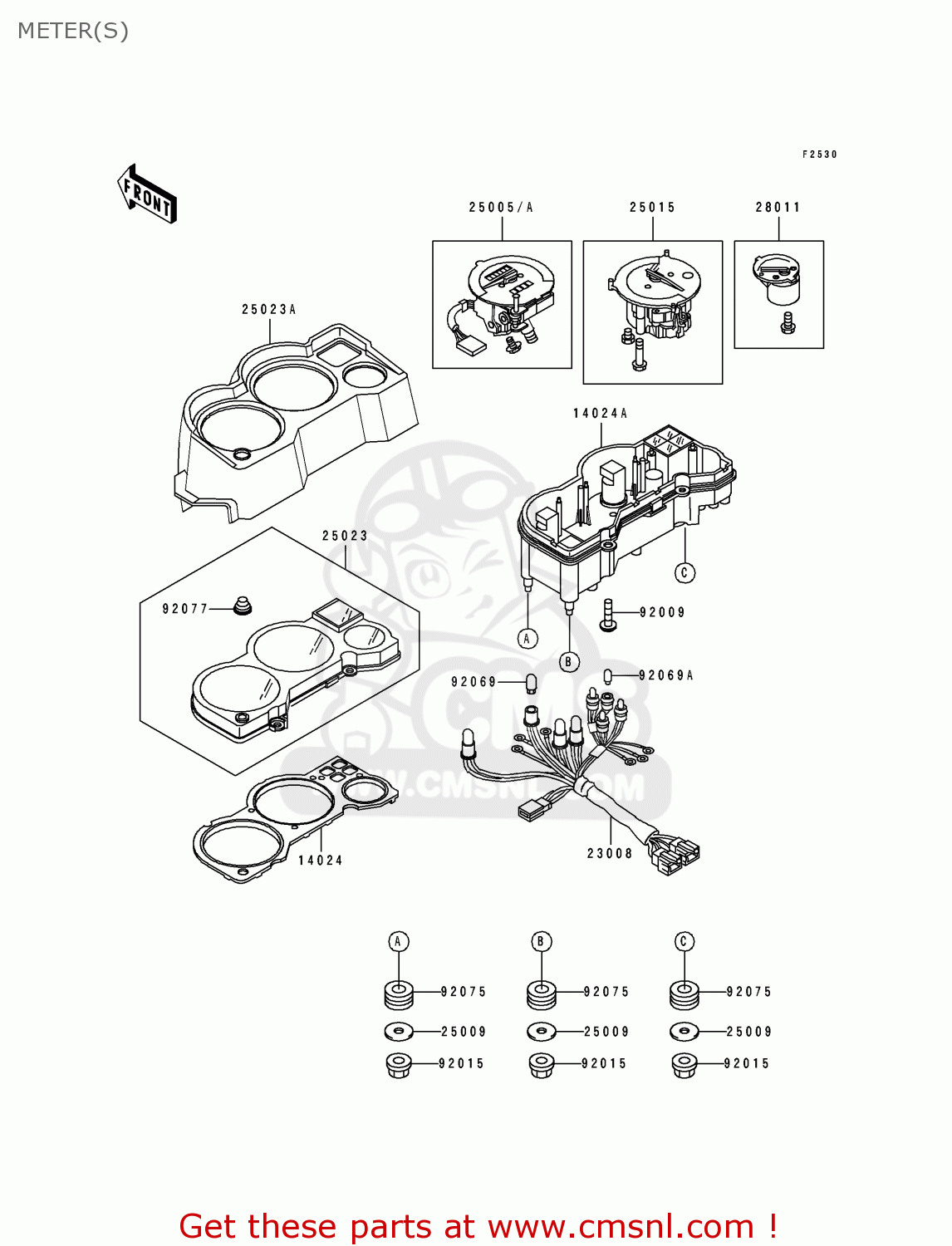

Meter(s) diagram EX250F6 GPX250R 1992 EUROPE
METER(S) EX250F6 GPX250R 1992 EUROPE
×
prices are in EUR
ref
part #
description
quantity
14024
140241463
ref: 14024
COVER,METER
€ 21.00
14024A
140241664
ref: 14024A
COVER,METER HOUSING
€ 51.50
23008
230081367
ref: 23008
SOCKET-ASSY,METER
€ 47.50
25005
250051379
ref: 25005
SPEEDOMETER,KPH
€ 217.50
25009
25009004
ref: 25009
WASHER,5.2X16X1.2T
€ 2.50
25015
250151275
ref: 25015
TACHOMETER,X1000R/MIN
€ 312.00
25023
250231158
ref: 25023
COVER-METER CASE,UPP
€ 67.00
25023A
250231159
ref: 25023A
COVER-METER CASE,VISO
€ 38.00
28011
280111100
ref: 28011
METER,TEMP
€ 108.00
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
€ 3.00
92077
920771061
ref: 92077
BOOT,TRIP RESET KNOB
€ 6.00
