REAR HUB

EX250F6 GPX250R 1992 EUROPE

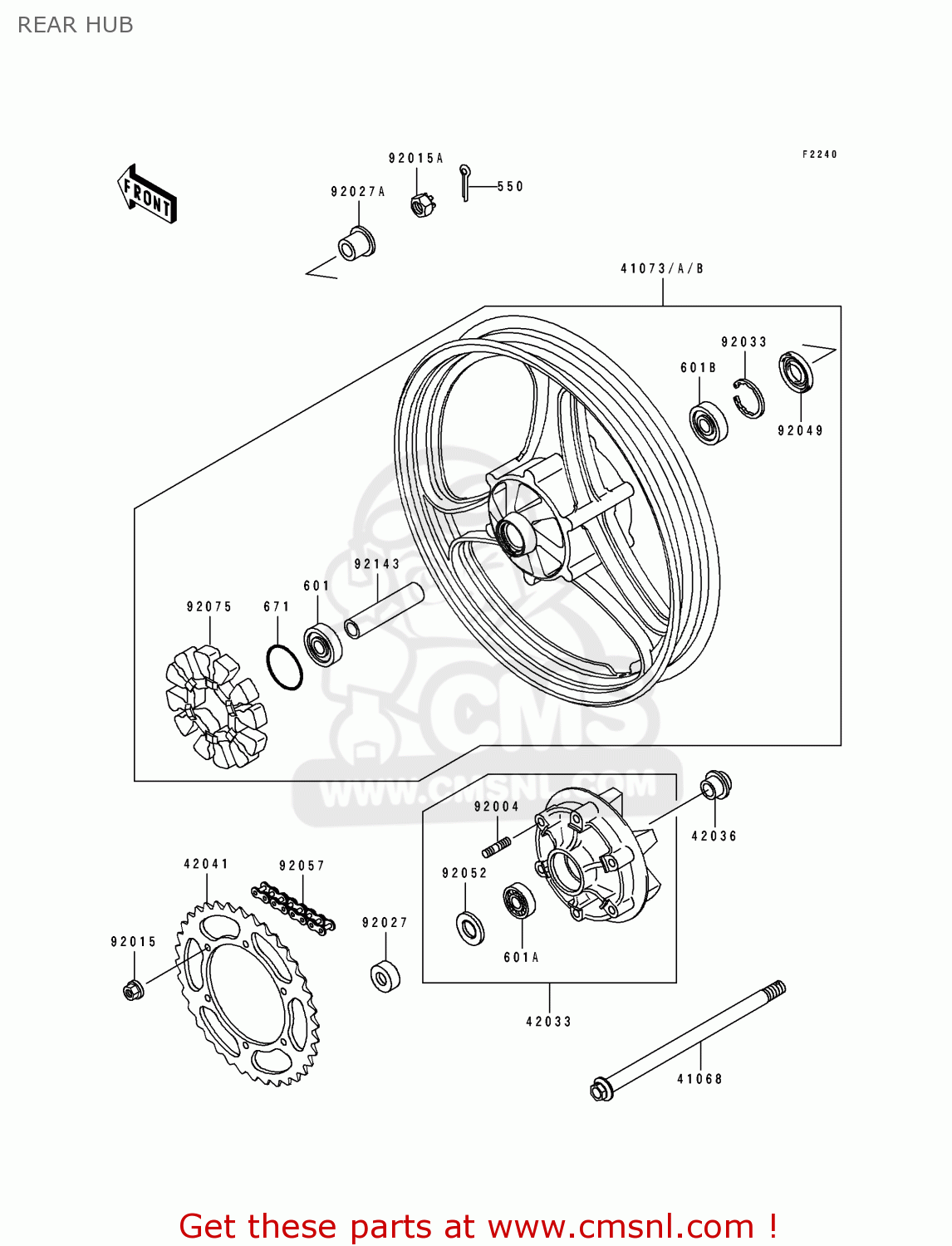

Rear hub diagram EX250F6 GPX250R 1992 EUROPE

REAR HUB EX250F6 GPX250R 1992 EUROPE
REAR HUB EX250F6 GPX250R 1992 EUROPE
REAR HUB EX250F6 GPX250R 1992 EUROPE
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6203UU
ref: 601
BEARING-BALL,#6203UUC
601B6203UU
€ 25.00
601A
601B6205G
ref: 601A
BEARING BALL
601B6205G
€ 14.00
601B
601B6303UU
ref: 601B
BEARING-BALL,6303LLUC
601B6303UU
€ 30.50
671
671B2550
ref: 671
O RING,50MM
671B2550
€ 1.50
41068
410681221
ref: 41068
AXLE,RR
€ 58.50
41073A
410731366X4
ref: 41073A
WHEEL-ASSY,RR,F.RED
€ 629.50
42033
420331107
ref: 42033
COUPLING-ASSY,RR HUB
€ 222.50
42036
420361055
ref: 42036
SLEEVE,L=25
420361055
€ 19.00
42041
420411277
ref: 42041
SPROCKET-HUB,45T
420411277
€ 38.50
92004
920041111
ref: 92004
STUD,10X21
920041111
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92015A
920151947
ref: 92015A
NUT
920151947
€ 6.50
92027
920271784
ref: 92027
COLLAR,RR HUB
920271784
€ 16.00
92027A
920271785
ref: 92027A
COLLAR,RR HUB
920271785
€ 20.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571346
ref: 92057
CHAIN,DRIVE,EK520LV-O
€ 161.00
92075
920751436
ref: 92075
DAMPER,RR HUB SHOCK
920751436
€ 65.00
92143
921431119
ref: 92143
COLLAR,17.2X25X97
€ 16.50
