REAR MASTER CYLINDER

EX250F6 GPX250R 1992 EUROPE

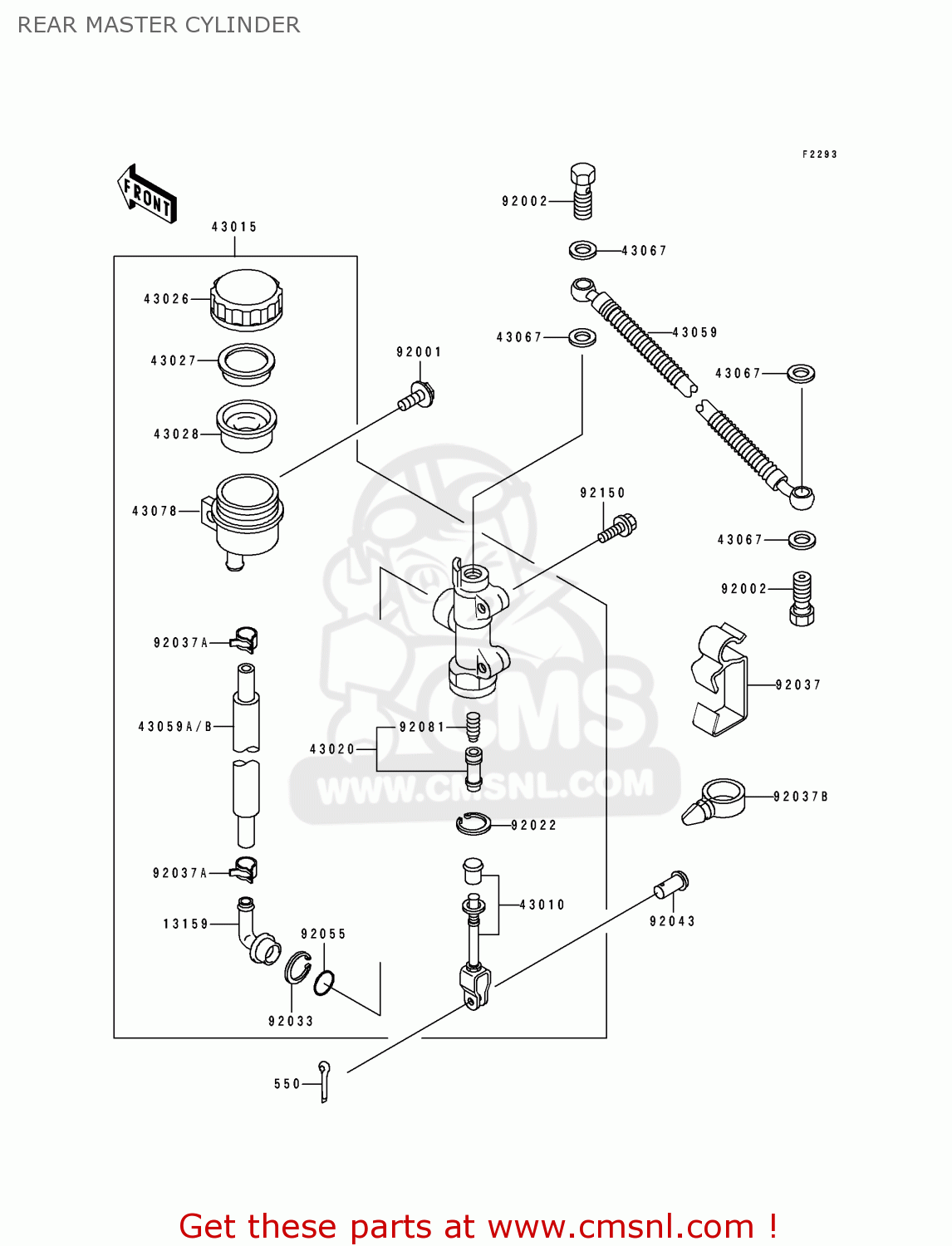

Rear master cylinder diagram EX250F6 GPX250R 1992 EUROPE

REAR MASTER CYLINDER EX250F6 GPX250R 1992 EUROPE
REAR MASTER CYLINDER EX250F6 GPX250R 1992 EUROPE
REAR MASTER CYLINDER EX250F6 GPX250R 1992 EUROPE
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
430101055
€ 44.00
43015
430151495
ref: 43015
CYLINDER-ASSY-MASTER,
€ 259.50
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
430201057
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591369
ref: 43059
HOSE-BRAKE,RR MASTER
€ 26.00
43059A
430591637
ref: 43059A
HOSE-BRAKE,RR
€ 77.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781058
ref: 43078
RESERVOIR,RR MASTER C
430781058
€ 20.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
920011860
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371498
ref: 92037
CLAMP,RR BRAKE HOSE
920371498
€ 5.00
92037A
920371547
ref: 92037A
CLAMP
920371547
€ 8.50
92037B
920371827
ref: 92037B
CLAMP,HOSE
920371827
€ 5.00
92043
920431013
ref: 92043
PIN
920431013
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92081
920811737
ref: 92081
SPRING
920811737
€ 8.50
92150
921501843
ref: 92150
BOLT
921501843
€ 2.50
