STARTER MOTOR
ER500B2 ER5 1998 FRANCE NL FG NR

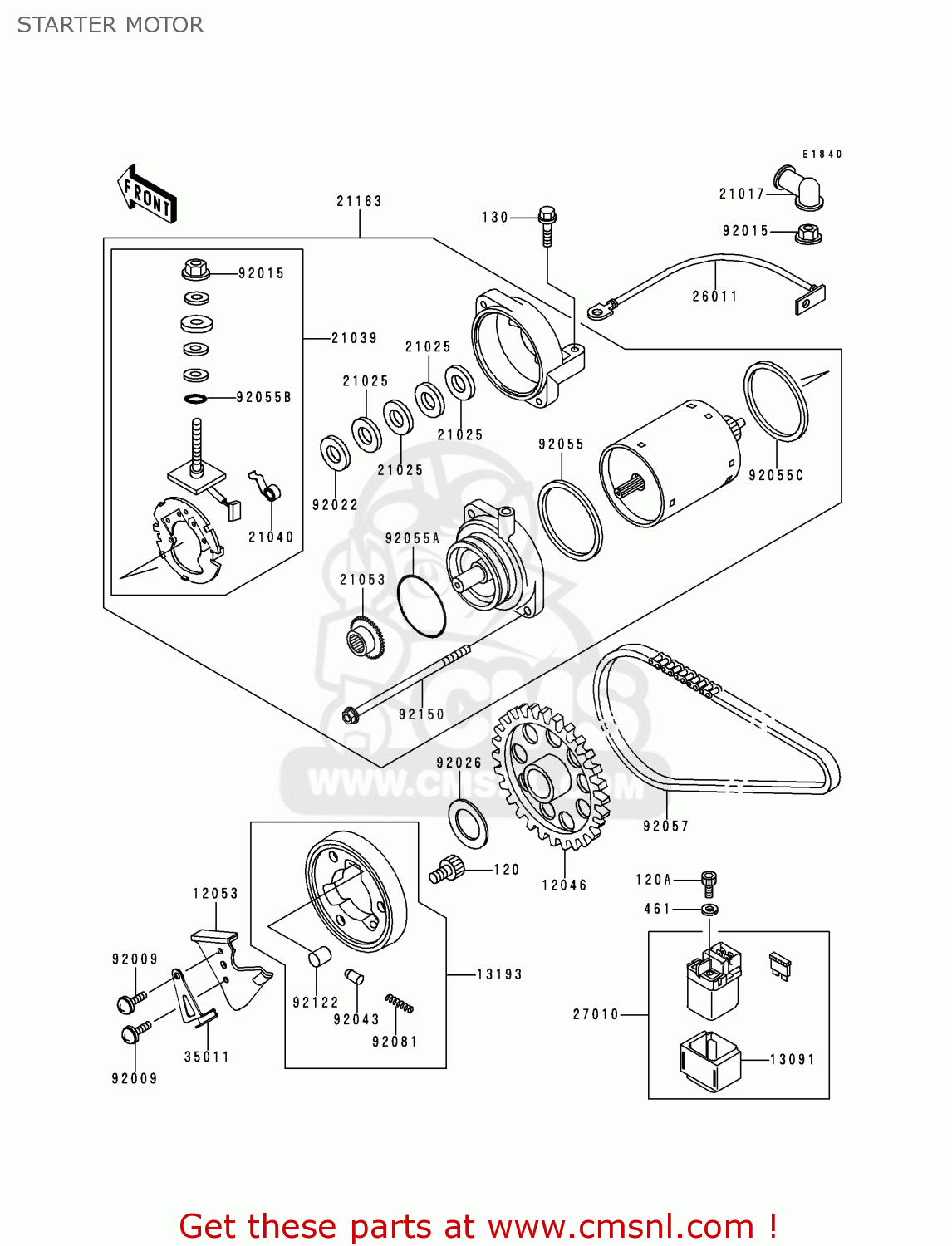

Starter motor diagram ER500B2 ER5 1998 FRANCE NL FG NR
STARTER MOTOR ER500B2 ER5 1998 FRANCE NL FG NR
×
prices are in EUR
ref
part #
description
quantity
120
120P0816
ref: 120
BOLT-SOCKET
€ 2.50
120A
120S0510
ref: 120A
BOLT-SOCKET
€ 0.50
130
130Y0625
ref: 130
BOLT-FLANGED
€ 2.00
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
12046
120461072
ref: 12046
SPROCKET,ONEWAY CLUTC
€ 69.00
12053
120531214
ref: 12053
GUIDE-CHAIN
€ 29.50
13091
130911992
ref: 13091
HOLDER
€ 5.50
13193
131931060
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 122.00
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391062
ref: 21039
BRUSH,CARBON
€ 81.00
21040
210401057
ref: 21040
SPRING-BRUSH
€ 5.50
21053
210531057
ref: 21053
SPROCKET-ASSY
€ 28.50
21163
211631274
ref: 21163
STARTER-ELECTRIC
€ 466.50
26011
260111636
ref: 26011
WIRE-LEAD,STARTER MOT
€ 43.00
27010
270101376
ref: 27010
SWITCH,MAGNETIC
€ 106.50
35011
350111792
ref: 35011
STAY,CHAIN GUIDE
€ 3.50
92009
920091765
ref: 92009
SCREW
€ 2.00
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92026
920261285
ref: 92026
SPACER,25.2X40X1.0
€ 4.00
92043
92043087
ref: 92043
PIN
€ 8.00
92055
920551086
ref: 92055
O RING,64MM
€ 6.50
92055A
920551313
ref: 92055A
RING-O
€ 5.50
92055B
920551370
ref: 92055B
RING-O,4.5X2.0
€ 3.00
92055C
920551381
ref: 92055C
RING-O,STARTER MOTOR
€ 6.50
92057
920571197
ref: 92057
CHAIN,STARTER,BF05MX6
€ 15.50
92081
92081110
ref: 92081
SPRING
€ 3.00
92122
92122004
ref: 92122
ROLLER,15X13
€ 7.00
92150
921501138
ref: 92150
BOLT,STARTER
€ 6.00
