ENGINE COVER(S)
ER500B2 ER5 1998 FRANCE NL FG NR

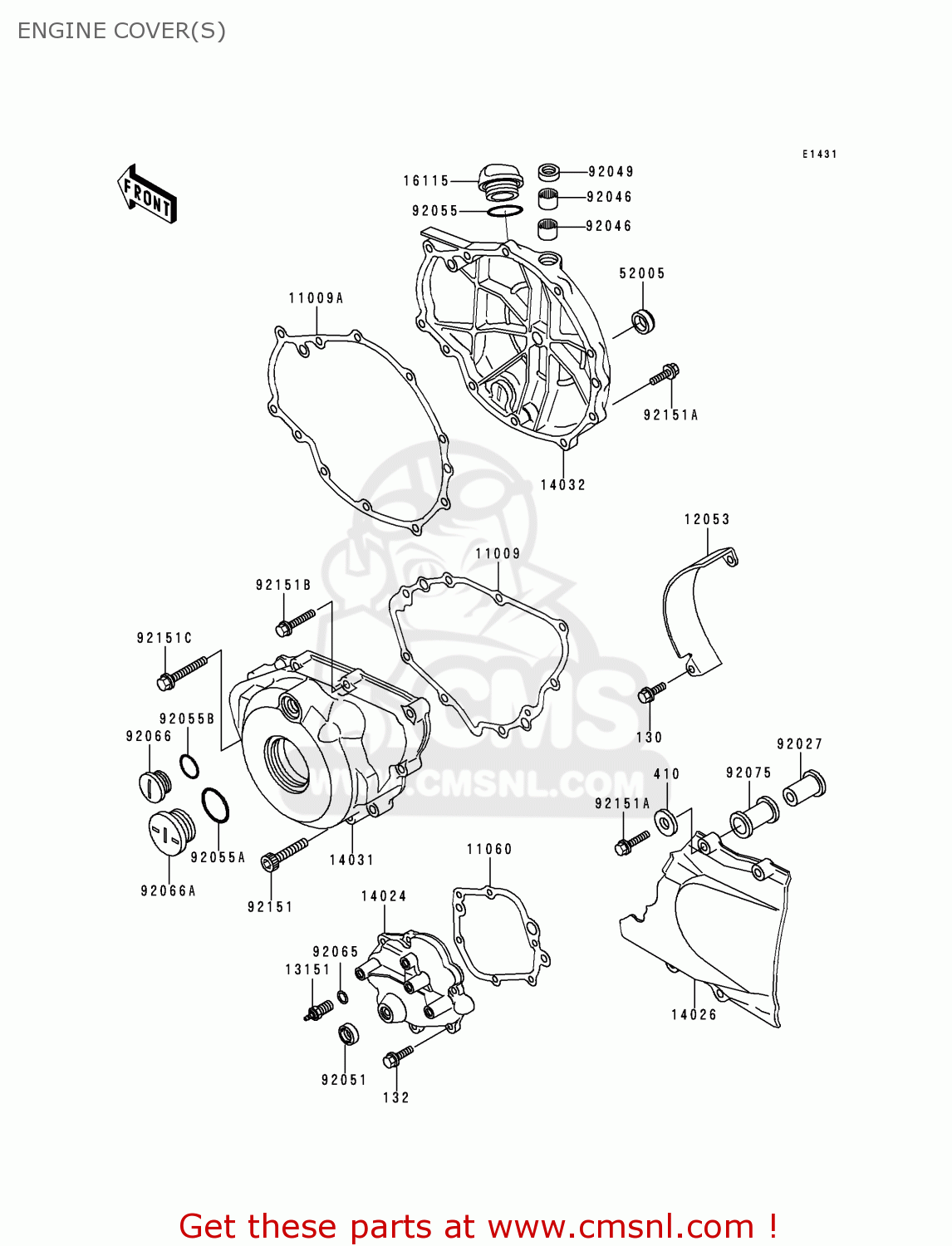

Engine cover(s) diagram ER500B2 ER5 1998 FRANCE NL FG NR
ENGINE COVER(S) ER500B2 ER5 1998 FRANCE NL FG NR
×
prices are in EUR
ref
part #
description
quantity
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
11009
110091834
ref: 11009
GASKET,GEN. COVER (NAS)
€ 17.00
11009A
110091836
ref: 11009A
GASKET, CLUTCH COVER (NAS)
€ 22.00
11060
110601830
ref: 11060
GASKET (NAS)
€ 5.50
12053
120531215
ref: 12053
GUIDE-CHAIN
€ 10.00
13151
131511080
ref: 13151
SWITCH-COMP,NEUTRAL
€ 9.00
14024
140241387
ref: 14024
COVER,CHANGE MECHANIS
€ 78.50
14026
140261240
ref: 14026
COVER-CHAIN
€ 44.00
14031
140311336
ref: 14031
COVER-GENERATOR
€ 152.00
14032
140321459
ref: 14032
COVER-CLUTCH
€ 197.50
16115
161151062
ref: 16115
CAP-OIL FILLER
€ 13.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92027
920271858
ref: 92027
COLLAR
€ 3.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491271
ref: 92049
SEAL, OIL
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
92055091
ref: 92055A
0 RING
€ 4.00
92055B
920551146
ref: 92055B
RING-O
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661456
ref: 92066
PLUG,TOP MAKE
€ 10.00
92066A
920661457
ref: 92066A
PLUG,CRANK
€ 7.50
92075
920751681
ref: 92075
DAMPER
€ 3.50
92151
921511129
ref: 92151
BOLT,SOCKET,6X40
€ 1.50
92151A
921511130
ref: 92151A
BOLT,6X25
€ 2.00
92151B
921511131
ref: 92151B
BOLT,6X40
€ 3.00
92151C
921511132
ref: 92151C
BOLT,6X55
€ 3.00
