FRONT FORK
ER500B2 ER5 1998 FRANCE NL FG NR

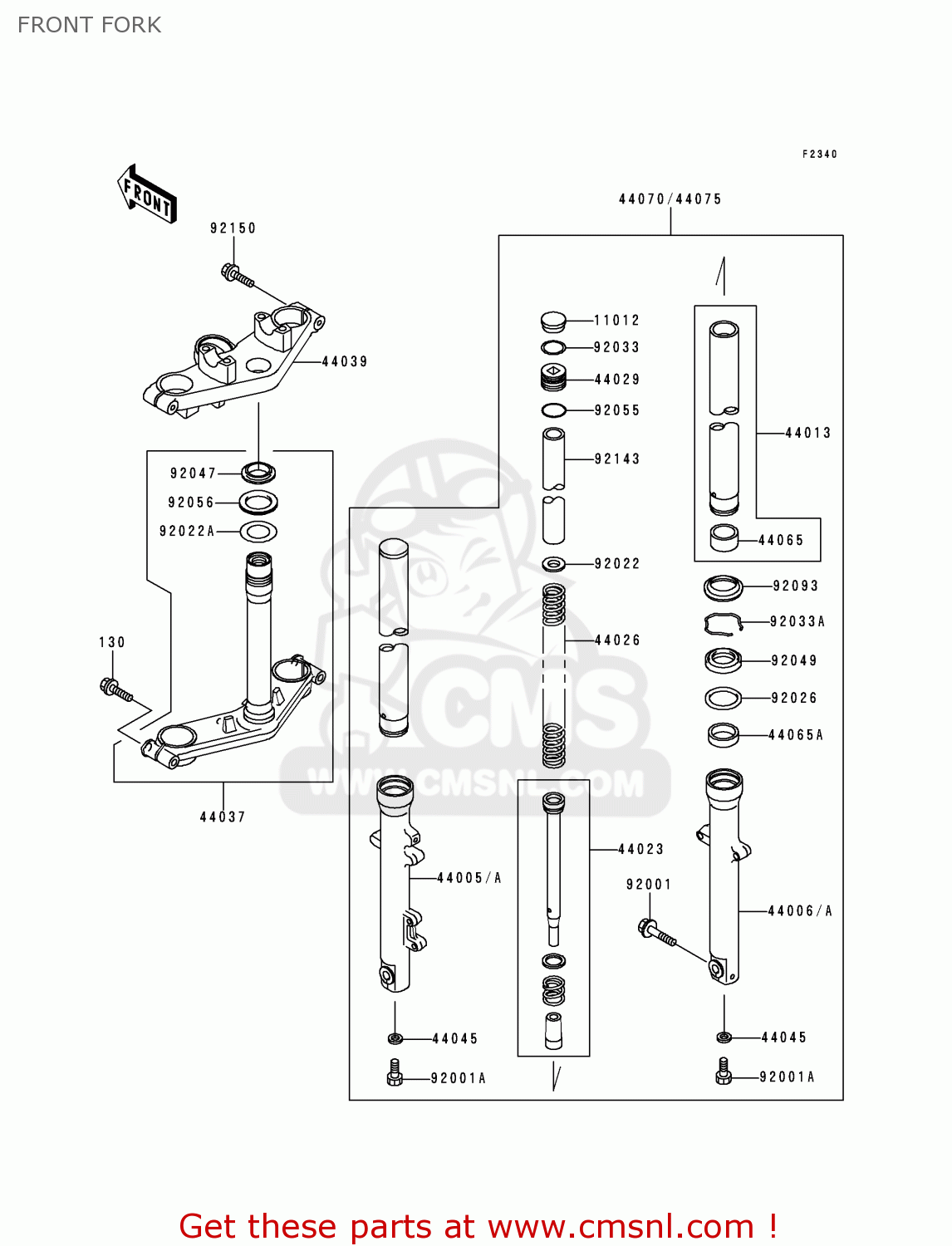

Front fork diagram ER500B2 ER5 1998 FRANCE NL FG NR
FRONT FORK ER500B2 ER5 1998 FRANCE NL FG NR
×
prices are in EUR
ref
part #
description
quantity
130
130J1040
ref: 130
BOLT-FLANGED
€ 2.00
11012
110121883
ref: 11012
CAP,FORK TOP
€ 17.50
44005
440051373
ref: 44005
PIPE-LEFT FORK OUTER
€ 306.50
44006
440061372
ref: 44006
PIPE-RIGHT FORK OUTER
€ 306.50
44013
440131433
ref: 44013
PIPE-FORK INNER
€ 168.00
44023
440231105
ref: 44023
CYLINDER-COMP-FORK
€ 79.00
44026
440261637
ref: 44026
SPRING-FRONT FORK
€ 42.00
44029
440291127
ref: 44029
SEAT-FORK SPRING
€ 33.00
44037
440371353
ref: 44037
HOLDER-FORK UNDER
€ 223.00
44039
440391268
ref: 44039
HOLDER-FORK UPPER
€ 188.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44065
440651110
ref: 44065
BUSHING-FRONT FORK,IN
€ 16.00
44065A
440651121
ref: 44065A
BUSHING-FRONT FORK
€ 16.00
44070
440701566
ref: 44070
DAMPER-ASSY,FORK SET
€ 1,220.00
92001
920011149
ref: 92001
BOLT,8X40
€ 7.50
92001A
920011464
ref: 92001A
BOLT
€ 4.00
92022
920221879
ref: 92022
WASHER
€ 3.00
92022A
92022231
ref: 92022A
WASHER,PLAIN
€ 3.00
92026
920261443
ref: 92026
SPACER,FORK
€ 5.50
92033
920331236
ref: 92033
RING-SNAP
€ 5.00
92033A
920331286
ref: 92033A
RING-SNAP
€ 5.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
€ 14.50
92049
920491421
ref: 92049
SEAL-OIL,FORK OUTER
€ 13.50
92055
920551384
ref: 92055
RING-O,FORK SPRING SE
€ 3.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
€ 6.00
92093
920931367
ref: 92093
SEAL,FORK OUTER
€ 14.00
92143
921431682
ref: 92143
COLLAR,FORK,L=100
€ 6.00
92150
921501610
ref: 92150
BOLT
€ 5.50
