METER(S)

ER500B2 ER5 1998 FRANCE NL FG NR

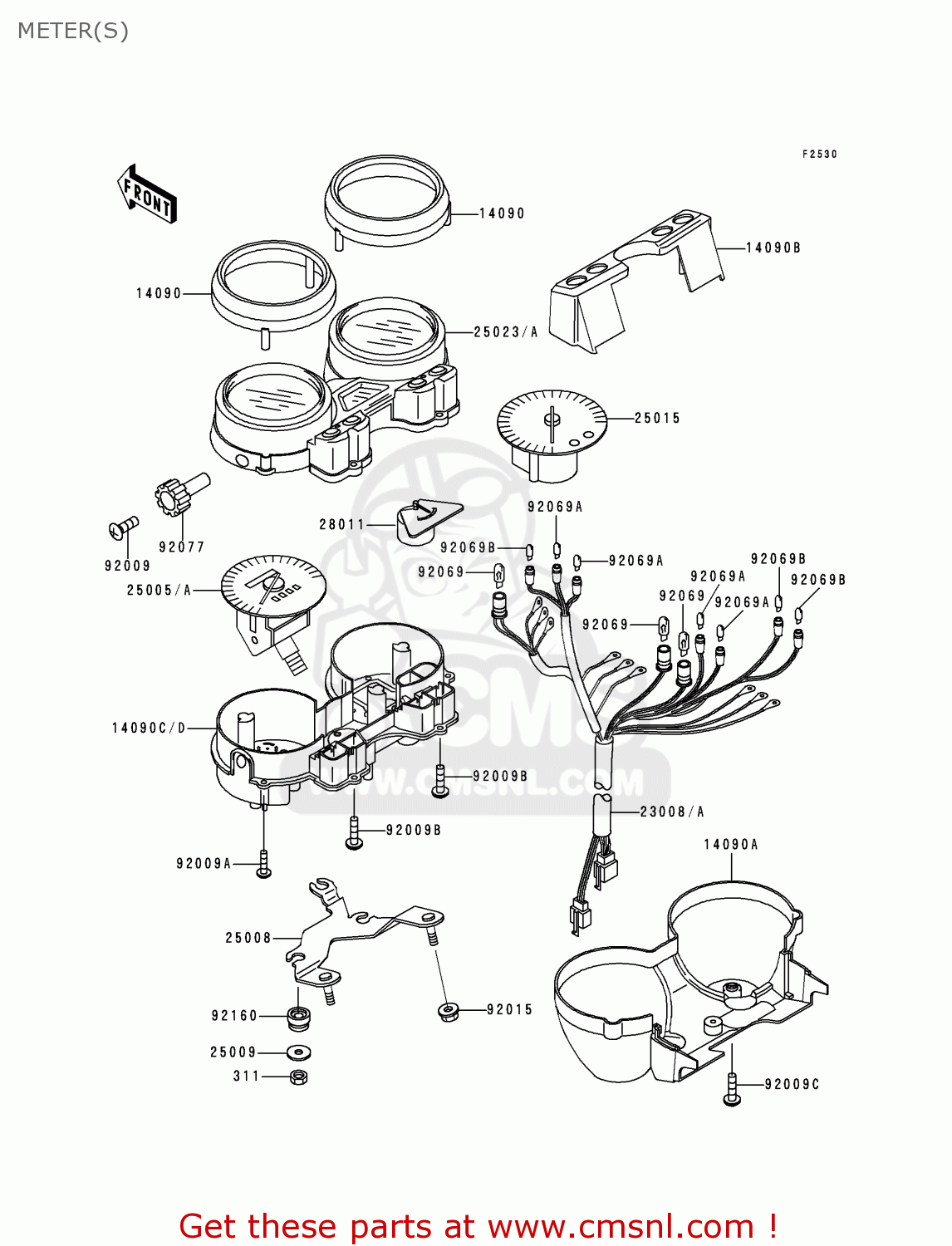

Meter(s) diagram ER500B2 ER5 1998 FRANCE NL FG NR

METER(S) ER500B2 ER5 1998 FRANCE NL FG NR
METER(S) ER500B2 ER5 1998 FRANCE NL FG NR
METER(S) ER500B2 ER5 1998 FRANCE NL FG NR
prices are in EUR
ref
part #
description
quantity
311
311C0500
ref: 311
NUT-HEX
311C0500
€ 0.50
14090
140901603
ref: 14090
COVER,SPEEDO&TACHOMET
140901603
€ 19.50
14090A
140901607
ref: 14090A
COVER,METER,LWR
140901607
€ 84.00
14090B
140901618
ref: 14090B
COVER,PILOT BOX,UPP
140901618
€ 63.00
14090D
140901842
ref: 14090D
COVER,METER HOUSING
140901842
€ 109.50
23008A
230081583
ref: 23008A
SOCKET-ASSY,METER
230081583
€ 127.00
25005
250051610
ref: 25005
SPEEDOMETER,KPH
250051610
€ 328.50
25008
250081213
ref: 25008
BRACKET-METER
250081213
€ 49.00
25009
25009004
ref: 25009
WASHER,5.2X16X1.2T
25009004
€ 2.50
25015
250151341
ref: 25015
TACHOMETER,X1000R/MIN
250151341
€ 267.00
25023A
250231230
ref: 25023A
COVER-METER CASE,UPP
250231230
€ 103.50
28011
280111147
ref: 28011
METER,FUEL
280111147
€ 169.00
92009
920091172
ref: 92009
SCREW,2X6,BLACK
920091172
€ 2.00
92009A
920091391
ref: 92009A
SCREW
€ 2.50
92009B
920091503
ref: 92009B
SCREW,TAPPING,4X14
920091503
€ 2.50
92009C
920091601
ref: 92009C
SCREW,TAPPING,4X16
920091601
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92069
920691059
ref: 92069
BULB,12V 1.7W
920691059
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
920691068
€ 2.50
92069B
920691070
ref: 92069B
BULB,12V 1.7W
920691070
€ 3.00
92077
920771073
ref: 92077
KNOB,METER
920771073
€ 4.00
92160
921601178
ref: 92160
DAMPER
921601178
€ 3.50
