ELECTRO BRACKET
ER500B2 ER5 1998 FRANCE NL FG NR

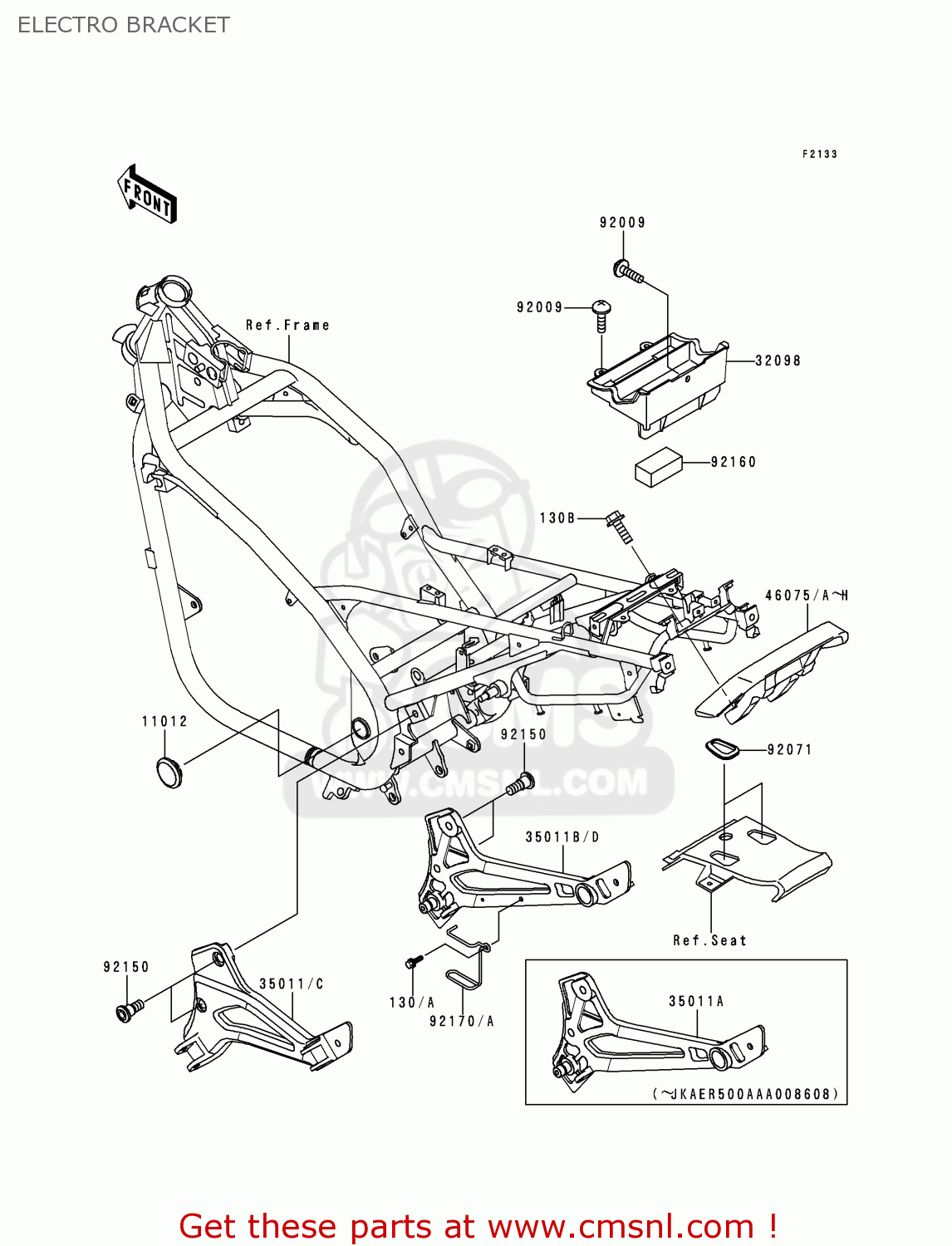

Electro bracket diagram ER500B2 ER5 1998 FRANCE NL FG NR
ELECTRO BRACKET ER500B2 ER5 1998 FRANCE NL FG NR
×
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
130B
130J0825
ref: 130B
BOLT-FLANGED,8X25,BLA
€ 2.00
11012
110121717EZ
ref: 11012
CAP,CROSS PIPE,C.GRAY
€ 5.50
32098
320981115
ref: 32098
CASE-TOOL
€ 17.50
35011C
350111919GD
ref: 35011C
STAY,FRONT STEP,LH,G.
€ 59.50
35011D
350111920GD
ref: 35011D
STAY,FRONT STEP,RH,G.
€ 85.00
46075
460751138B1
ref: 46075
GRIP,TAIL,F.RED
€ 147.00
46075A
460751138C6
ref: 46075A
GRIP,TAIL,M.N.BLUE
€ 142.50
46075B
460751138F2
ref: 46075B
GRIP,TAIL,G.SILVER
€ 145.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92071
920711238
ref: 92071
GROMMET
€ 3.00
92150
921501747
ref: 92150
BOLT
€ 5.00
92160
921601824
ref: 92160
DAMPER
€ 2.00
92170
921701819
ref: 92170
CLAMP,HOSE
€ 11.50
