GEAR CHANGE MECHANISM
ER500B2 ER5 1998 FRANCE NL FG NR

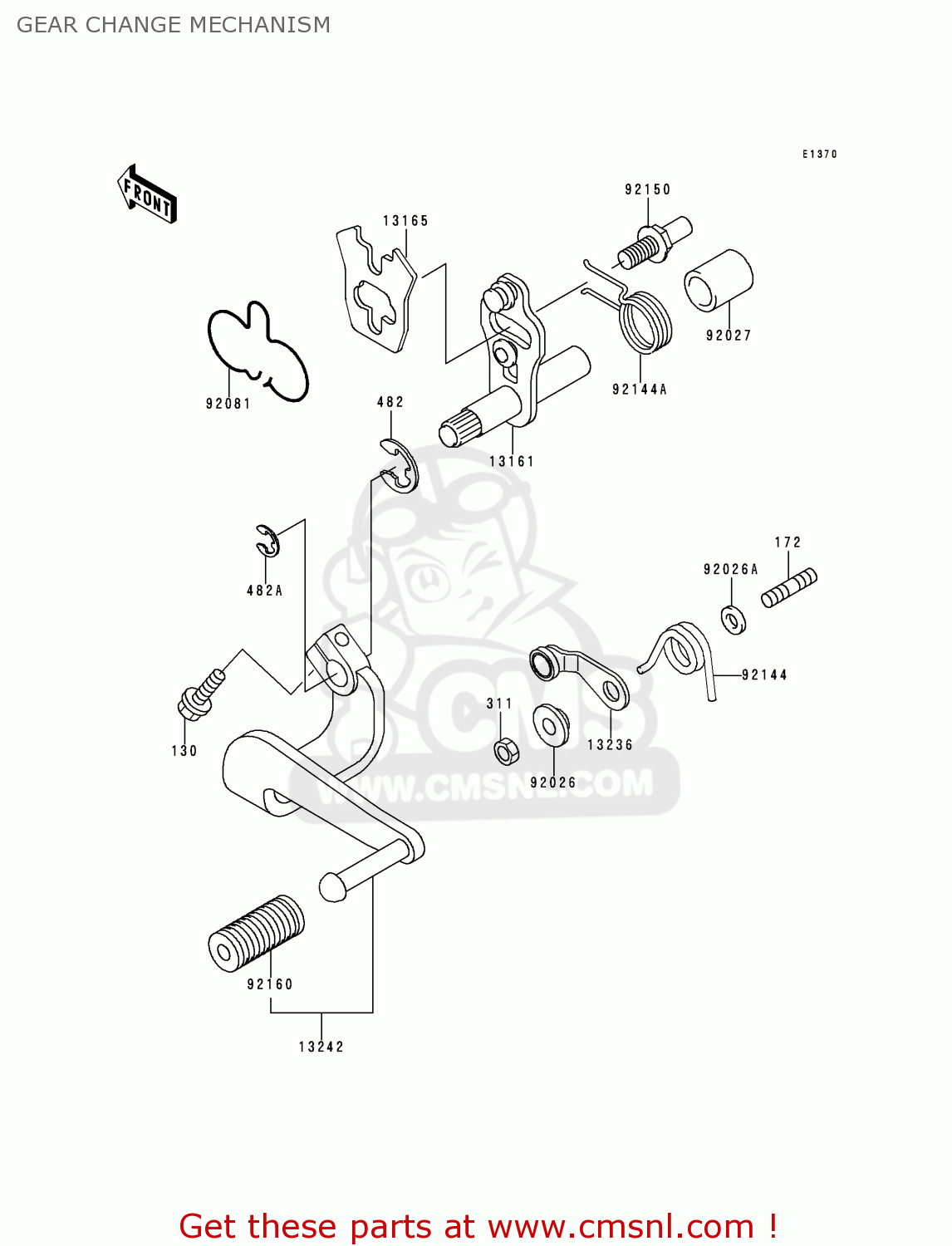

Gear change mechanism diagram ER500B2 ER5 1998 FRANCE NL FG NR
GEAR CHANGE MECHANISM ER500B2 ER5 1998 FRANCE NL FG NR
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
172
172G0614
ref: 172
STUD,6X14
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 2.50
482A
482L7000
ref: 482A
CIRCLIP-TYPE-E
€ 2.50
13161
131611235
ref: 13161
LEVER-COMP-CHANGE SHA
€ 47.50
13165
131651034
ref: 13165
PAWL,CHANGE LEVER
€ 7.00
13236
132361216
ref: 13236
LEVER-COMP,GEAR POSIT
€ 9.00
13242
132421340
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 35.50
92026
920261217
ref: 92026
SPACER
€ 3.50
92026A
920261484
ref: 92026A
SPACER,6.3X12X2.0
€ 1.50
92027
920271440
ref: 92027
COLLAR,13X18.3X21.5
€ 3.50
92081
920811785
ref: 92081
SPRING,CHANGE LEVER
€ 6.00
92144
921441968
ref: 92144
SPRING,POSITION
€ 5.50
92144A
921441983
ref: 92144A
SPRING,RETURN
€ 5.50
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
€ 3.50
