REAR WHEEL/CHAIN
EJ650A4 W650 2002 CANADA

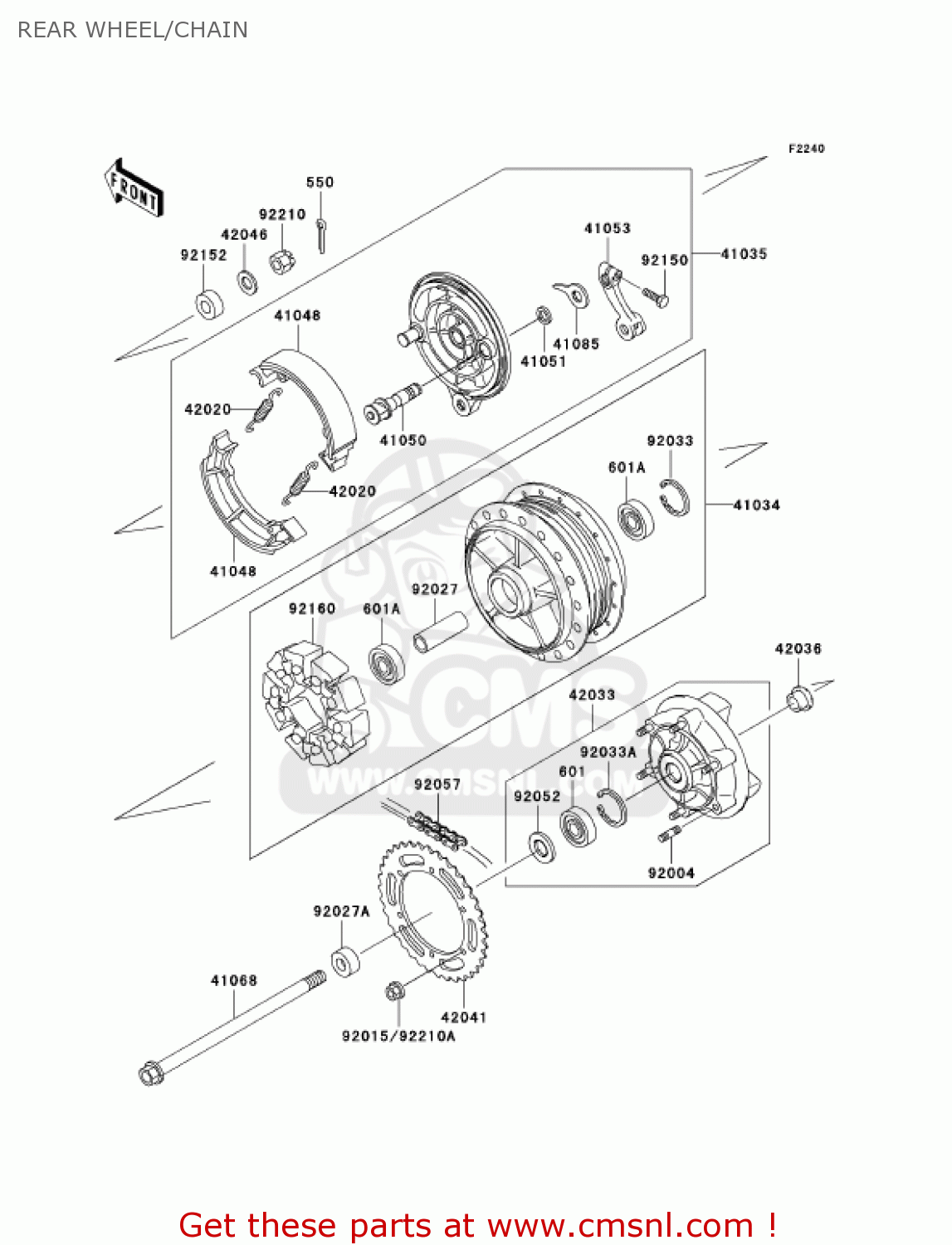

Rear wheel/chain diagram EJ650A4 W650 2002 CANADA
REAR WHEEL/CHAIN EJ650A4 W650 2002 CANADA
×
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
€ 14.00
601A
601B6303UU
ref: 601A
BEARING-BALL,6303LLUC
€ 30.50
41034
410341298
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 710.50
41035
410351509
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 479.00
41048
410481130
ref: 41048
SHOE-BRAKE (NAS)
€ 17.50
41050
410501065
ref: 41050
CAM-BRAKE
€ 29.00
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
€ 2.50
41053
410531093
ref: 41053
LEVER-BRAKE CAM
€ 54.00
41068
410681413
ref: 41068
AXLE,RR
€ 60.00
41085
410851060
ref: 41085
INDICATOR
€ 9.00
42020
42020004
ref: 42020
SPRING-BRAKE SHOE
€ 5.50
42033
420331207
ref: 42033
COUPLING-ASSY,RR HUB
€ 288.00
42036
420361233
ref: 42036
SLEEVE,RR AXLE,L=22
€ 17.00
42041
420411371
ref: 42041
SPROCKET-HUB,39T
€ 42.00
42046
42046009
ref: 42046
WASHER-SLEEVE
€ 5.00
92004
920041275
ref: 92004
STUD
€ 6.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
€ 1.50
92027
920271714
ref: 92027
COLLAR,L=104
€ 14.50
92027A
920271784
ref: 92027A
COLLAR,RR HUB
€ 16.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
€ 6.00
92052
92052006
ref: 92052
OIL SEAL WTC35527
€ 6.50
92057
920571474
ref: 92057
CHAIN,DRIVE,EK525MV-O
€ 146.50
92150
921501797
ref: 92150
BOLT
€ 3.50
92152
921521155
ref: 92152
COLLAR,RR AXLE,RH,L=1
€ 6.00
92160
921601524
ref: 92160
DAMPER,SHOCK,RR HUB
€ 52.00
92210
922101171
ref: 92210
NUT,CASTLE,16MM
€ 8.00
