CARBURETOR PARTS
EJ650A4 W650 2002 CANADA

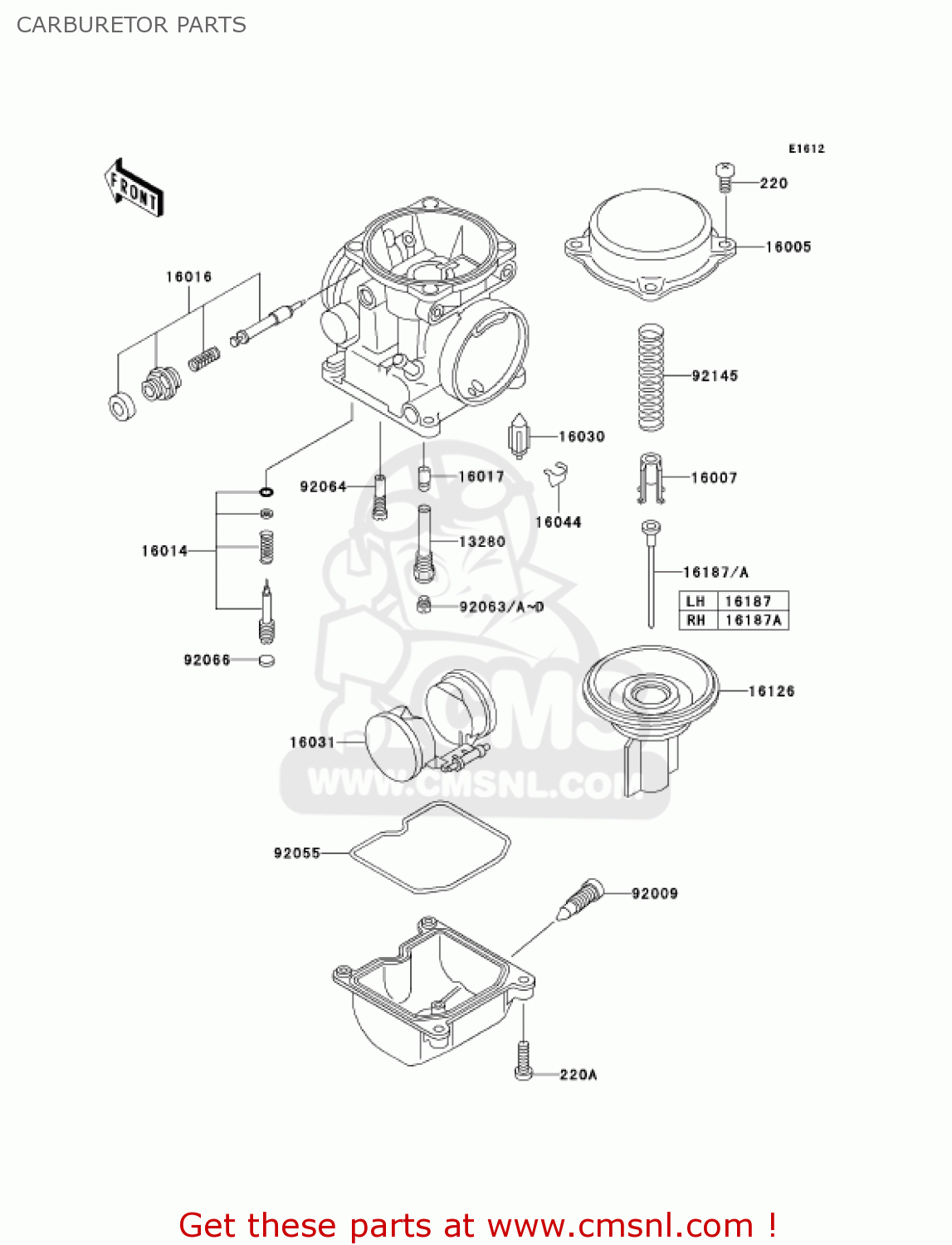

Carburetor parts diagram EJ650A4 W650 2002 CANADA
CARBURETOR PARTS EJ650A4 W650 2002 CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
€ 2.00
13280
132801158
ref: 13280
HOLDER,NEEDLE JET
€ 19.00
16005
160051065
ref: 16005
TOP-CHAMBER,MIXING
€ 47.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16014
160141081
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161092
ref: 16016
PLUNGER
€ 40.50
16017
160171407
ref: 16017
JET-NEEDLE
€ 34.00
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261339
ref: 16126
VALVE,VACUUM
€ 156.00
16187
161871112
ref: 16187
NEEDLE-JET,N8GJ
€ 27.50
16187A
161871113
ref: 16187A
NEEDLE-JET,N8GN
€ 27.50
92009
920091551
ref: 92009
SCREW,DRAIN
€ 6.50
92055
920551518
ref: 92055
RING-O,FLOAT CHAMBER
€ 15.00
92063
920631071
ref: 92063
JET-MAIN,#118
€ 9.50
92063A
920631072
ref: 92063A
(OPTION)
MAIN JET 2ND #120
€ 9.50
92063B
920631073
ref: 92063B
(OPTION)
MAIN JET,2ND #122
€ 9.50
92063C
920631117
ref: 92063C
(OPTION)
JET-MAIN,#112
€ 9.50
92063D
920631118
ref: 92063D
(OPTION)
JET-MAIN,#115
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
€ 3.00
92145
921451064
ref: 92145
SPRING,VACUUM VALVE
€ 18.50
