CYLINDER HEAD
EJ650A4 W650 2002 CANADA

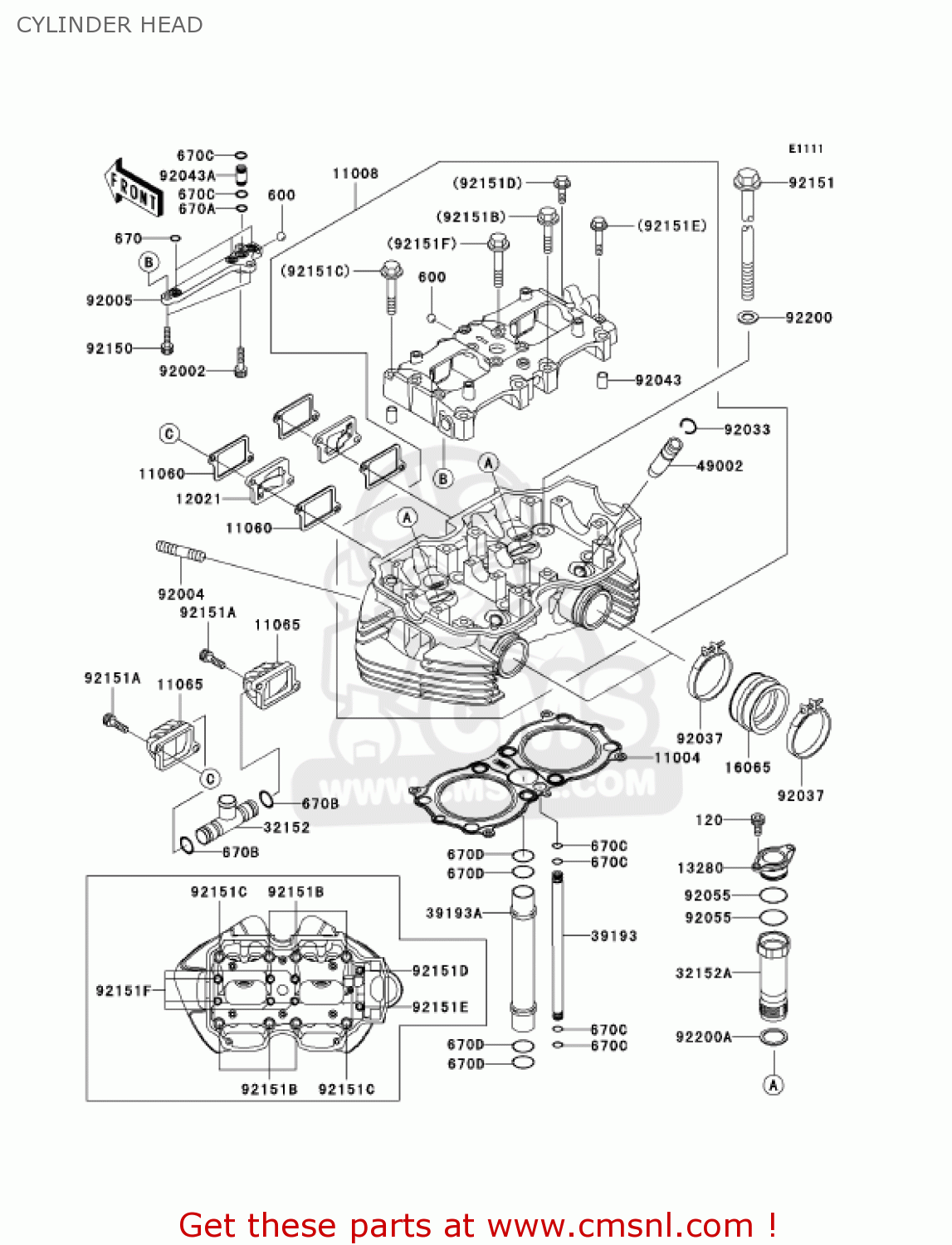

Cylinder head diagram EJ650A4 W650 2002 CANADA
CYLINDER HEAD EJ650A4 W650 2002 CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120R0514
ref: 120
BOLT-SOCKET
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
670
670D1509
ref: 670
O RING,9MM
€ 3.00
670A
670D1510
ref: 670A
O RING,10MM
€ 3.00
670B
670D2014
ref: 670B
O RING,14MM
€ 3.50
670C
670E1507
ref: 670C
O RING
€ 3.00
670D
670E2022
ref: 670D
O RING,22MM
€ 6.50
11004
110041341
ref: 11004
GASKET-HEAD (NAS)
€ 51.50
11008
110081362
ref: 11008
HEAD-COMP-CYLINDER
€ 1,315.00
11060
110601886
ref: 11060
GASKET,AIR SUCTION VA (NAS)
€ 2.00
11065
110651121
ref: 11065
CAP,AIR SUCTION VALVE
€ 24.00
12021
120211115
ref: 12021
VALVE-ASSY-REED
€ 38.50
13280
132801118
ref: 13280
HOLDER
€ 16.50
16065
160651361
ref: 16065
HOLDER-CARBURETOR
€ 17.50
32152
321521900
ref: 32152
PIPE,AIR SUCTION VALV
€ 29.00
32152A
321521901
ref: 32152A
PIPE,PLUG HOLE
€ 34.00
39193
391931045
ref: 39193
PIPE-OIL
€ 11.00
39193A
391931046
ref: 39193A
PIPE-OIL
€ 19.00
49002
490021116
ref: 49002
GUIDE-VALVE
€ 23.00
92002
920021696
ref: 92002
BOLT,SOCKET,6X25
€ 1.50
92004
920041121
ref: 92004
STUD,8X30
€ 3.50
92005
920051361
ref: 92005
FITTING
€ 29.50
92033
920331247
ref: 92033
RING-SNAP
€ 2.00
92037
920371523
ref: 92037
CLAMP
€ 8.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
€ 0.50
92043A
920431587
ref: 92043A
PIN
€ 7.00
92055
920551592
ref: 92055
RING-O,24.7X1.9
€ 1.50
92150
921501880
ref: 92150
BOLT,SOCKET,6X20
€ 2.00
92151
921511452
ref: 92151
BOLT,11X195
€ 15.00
92151A
921511455
ref: 92151A
BOLT,SOCKET,6X22
€ 1.50
92151B
921511621
ref: 92151B
BOLT,8X40
€ 1.50
92151C
921511622
ref: 92151C
BOLT,8X50
€ 1.50
92151D
921511623
ref: 92151D
BOLT,6X22
€ 1.50
92151E
921511624
ref: 92151E
BOLT,6X35
€ 1.50
92151F
921511625
ref: 92151F
BOLT,6X50
€ 1.50
92200
922001128
ref: 92200
WASHER,11.5X20.5X1.6
€ 3.50
92200A
922001484
ref: 92200A
WASHER,22X26X1.2
€ 1.50
