FRAME FITTINGS
EJ650A4 W650 2002 CANADA

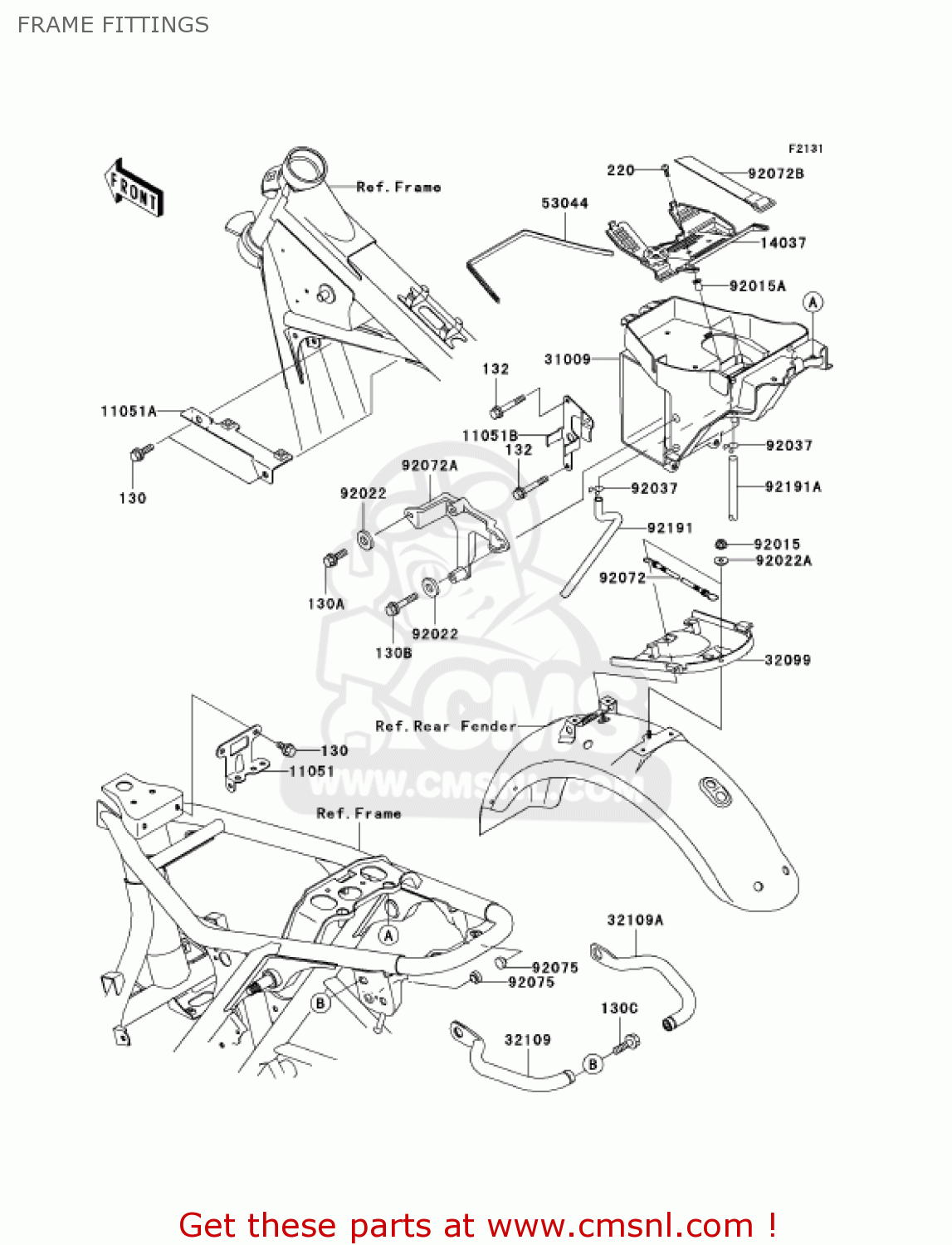

Frame fittings diagram EJ650A4 W650 2002 CANADA
FRAME FITTINGS EJ650A4 W650 2002 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
130A
130J0616
ref: 130A
BOLT-FLANGED,6X16
€ 1.50
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
€ 2.00
130C
130J0820
ref: 130C
BOLT-FLANGED,8X20
€ 0.50
132
132J0640
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
220
220C0616
ref: 220
SCREW-PAN-CROS,6X12,B
€ 2.50
11051
110511262
ref: 11051
BRACKET
€ 5.50
11051A
110511549
ref: 11051A
BRACKET,IGNITION COIL
€ 11.50
11051B
110511559
ref: 11051B
BRACKET,RELAY
€ 7.50
14037
140371276
ref: 14037
SCREEN
€ 32.50
31009
310091055
ref: 31009
CASE-COMP-BATTERY
€ 103.50
32099
320991202
ref: 32099
CASE,U LOCK
€ 36.50
32109
321091287
ref: 32109
GRIP-FRAME,LH
€ 44.00
32109A
321091288
ref: 32109A
GRIP-FRAME,RH
€ 44.00
53044
530441290
ref: 53044
TRIM,L=350
€ 12.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92015A
920151700A
ref: 92015A
NUT
€ 5.50
92022
920221344
ref: 92022
WASHER,7X16X1.2
€ 2.50
92022A
920221346
ref: 92022A
WASHER,6.5X20X1.6,BLA
€ 0.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92072
920721369
ref: 92072
BAND,U LOCK CASE
€ 18.00
92072A
920721370
ref: 92072A
BAND,BATTERY
€ 39.00
92072B
920721371
ref: 92072B
BAND,L=410
€ 15.50
92075
92075281
ref: 92075
DAMPER,9X24X14
€ 4.00
92191
921911396
ref: 92191
TUBE,DRAIN,L=265
€ 4.50
92191A
921911420
ref: 92191A
TUBE
€ 1.00
